RP328 Series

Catalog

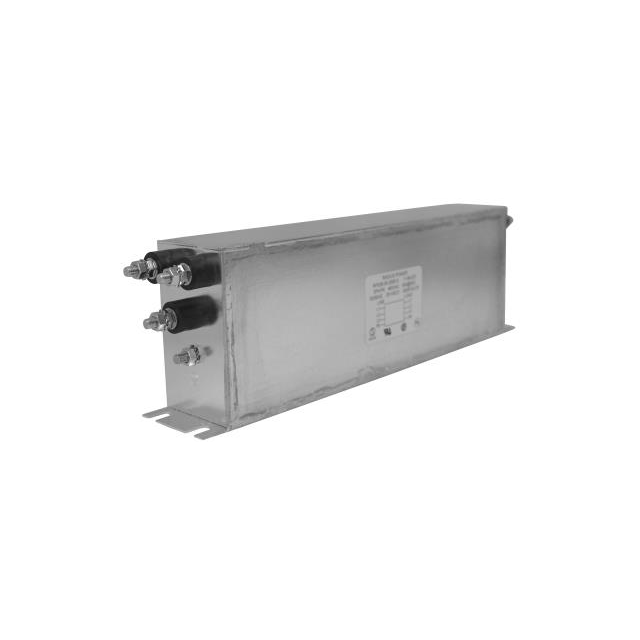

LINE FILTER 480VAC 7A CHASSIS

...

Part	Approval Agency	Voltage - Rated AC	Mounting Type	Filter Type	Applications	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [Max]	Operating Temperature [Min]	Current
Astrodyne TDI RP328-7-10-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	7 A
Astrodyne TDI RP328-75-2000-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	75 A
Astrodyne TDI RP328-16-1000-S	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Threaded Post (M5)	3.5 kV	100 °C	-25 °C	16 A
Astrodyne TDI RP328-16-0-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	16 A
Astrodyne TDI RP328-55-10-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	55 A
Astrodyne TDI RP328-100-2000-S	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Threaded Post (M6)	3.5 kV	100 °C	-25 °C	100 A
Astrodyne TDI RP328-30-1000-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	30 A
Astrodyne TDI RP328-75-0-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	75 A
Astrodyne TDI RP328-75-0-S	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Threaded Post (M6)	3.5 kV	100 °C	-25 °C	75 A
Astrodyne TDI RP328-100-100-W	CE CSA cURus ENEC SEMKO	480 V	Chassis Mount	Three Phase (Delta)	General Purpose	Single Stage	60 Hz	50 Hz	Wire Leads	3.5 kV	100 °C	-25 °C	100 A
