PPL90U Series

Catalog

AC/DC DESKTOP ADAPTER 24V 90W

Part	Approval Agency	Output Connector [x]	Output Connector [diameter]	Output Connector	Form	Voltage - Output	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Applications	Current - Output (Max) [Max]	No Load Power Consumption	Region Utilized	Input Connector	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Input Type	Cord Length	Cord Length	Polarization	Current - Output (Max)

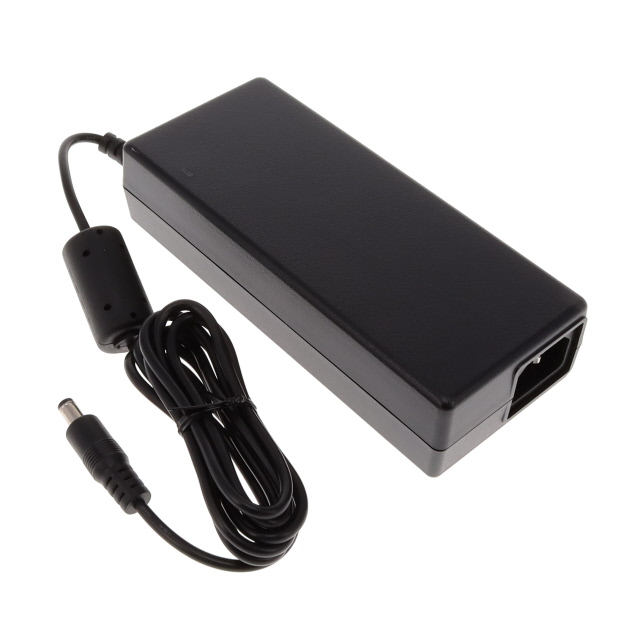

Phihong USA PPL90U-240	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Desktop (Class I)	24 V	62368-1	264 VAC	90 VAC	CoC Tier 2 Level VI	ITE (Commercial)	3.75 A	150 mW	International	IEC 320-C14	40 °C	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	90 W	Cord (Sold Separately)	1.5 m	59 in	Positive Center

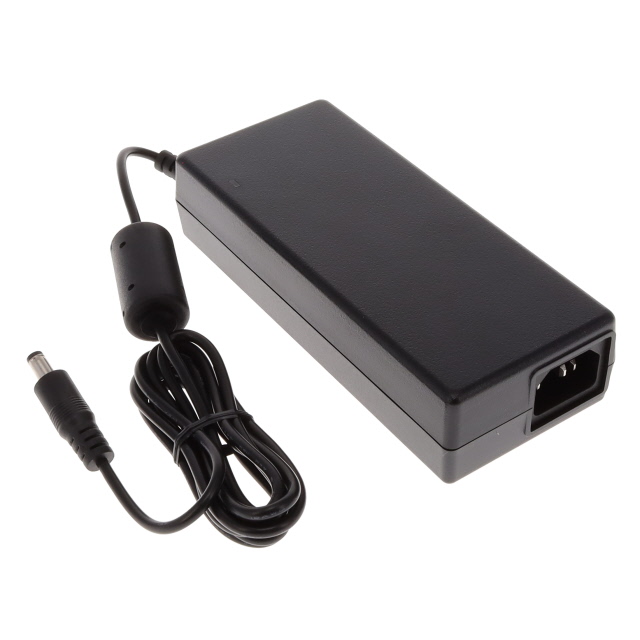

Phihong USA PPL90U-480	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Desktop (Class I)	48 V	62368-1	264 VAC	90 VAC	CoC Tier 2 Level VI	ITE (Commercial)	1.88 A	150 mW	International	IEC 320-C14	40 °C	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	90 W	Cord (Sold Separately)	1.5 m	59 in	Positive Center

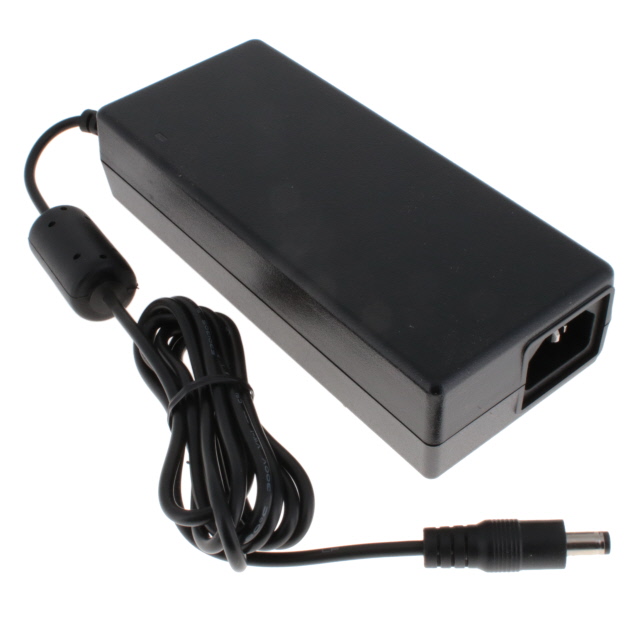

Phihong USA PPL90U-560	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Desktop (Class I)	56 V	62368-1	264 VAC	90 VAC	CoC Tier 2 Level VI	ITE (Commercial)	1.6 A	150 mW	International	IEC 320-C14	40 °C	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	90 W	Cord (Sold Separately)	1.5 m	59 in	Positive Center

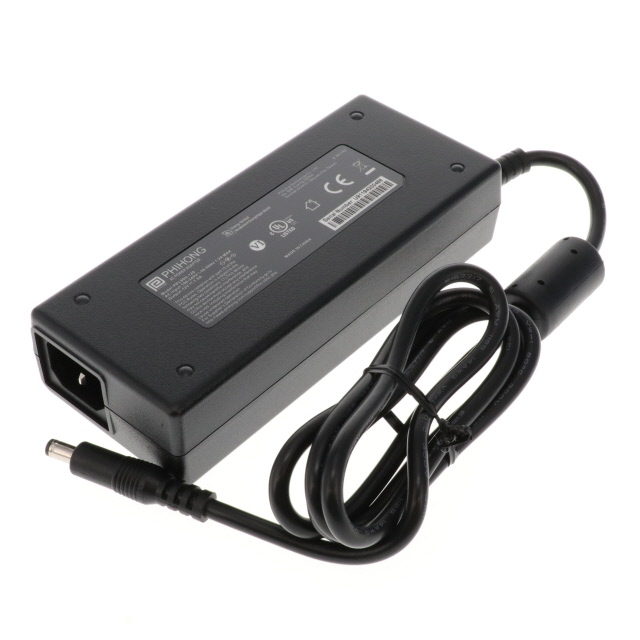

Phihong USA PPL90U-120	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Desktop (Class I)	12 V	62368-1	264 VAC	90 VAC	CoC Tier 2 Level VI	ITE (Commercial)	7 A	150 mW	International	IEC 320-C14	40 °C	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	84 W	Cord (Sold Separately)	1.2 m	47.2 in	Positive Center

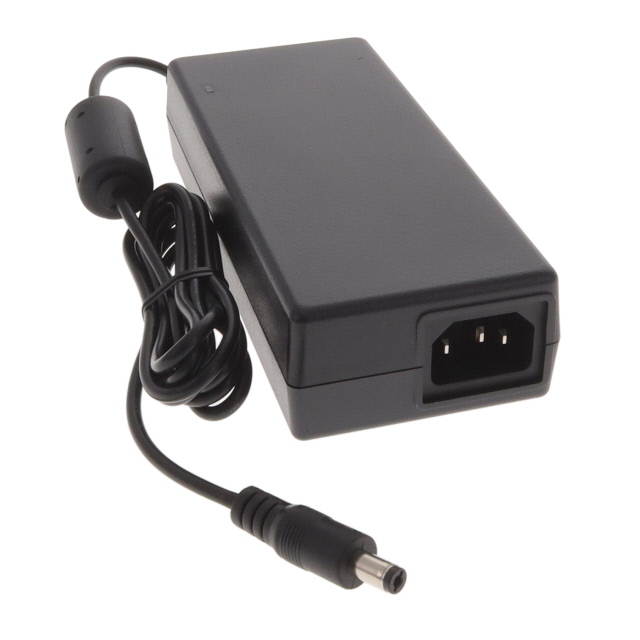

Phihong USA PPL90U-180	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Desktop (Class I)	18 V	62368-1	264 VAC	90 VAC	CoC Tier 2 Level VI	ITE (Commercial)		150 mW	International	IEC 320-C14	40 °C	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	90 W	Cord (Sold Separately)	1.5 m	59 in	Positive Center	5 A
