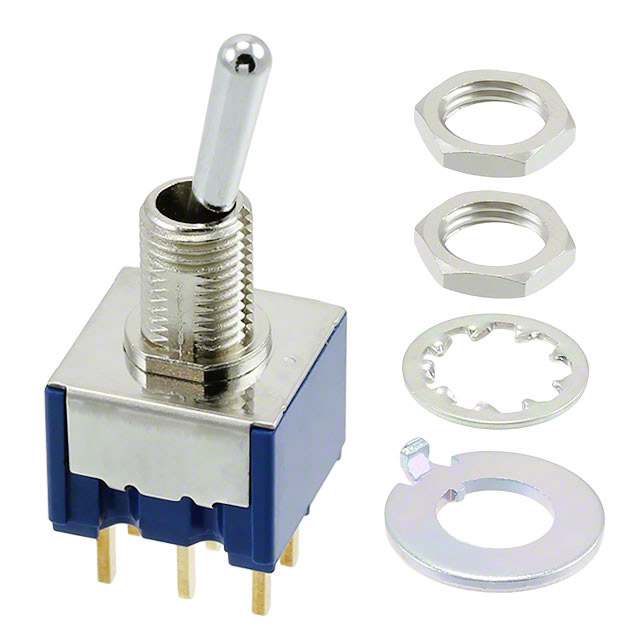

8A2012 Series
Manufacturer: Nidec Components Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH TOGGLE DPDT 25MA 20V
| Part | Electrical Life (Cycles) | Switch Function | Panel Cutout Diameter | Panel Cutout Shape | Termination Style | Voltage Rating - DC | Features | Bushing Thread | Operating Temperature (Max) | Operating Temperature (Min) | Actuator Length | Mounting Type | Actuator Type | Circuit | Current Rating | Illumination | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 | On-On | 6.5 mm | Circular | PC Pin | 20 V | Flux Protection Sealed | 1/4-40 | 85 °C | -20 °C | 10.5 mm | Panel Mount | Standard Round | DPDT | 25 mA | Non-Illuminated | |
 Nidec Components Corporation | 50000 | On-On | 6.5 mm | Circular | PC Pin | 30 V | Flux Protection Sealed | 1/4-40 | 85 °C | -30 °C | 10.5 mm | Panel Mount | Standard Round | DPDT | 4 A 6 A | Non-Illuminated | 125 V |
