9WPA0924 Series

Catalog

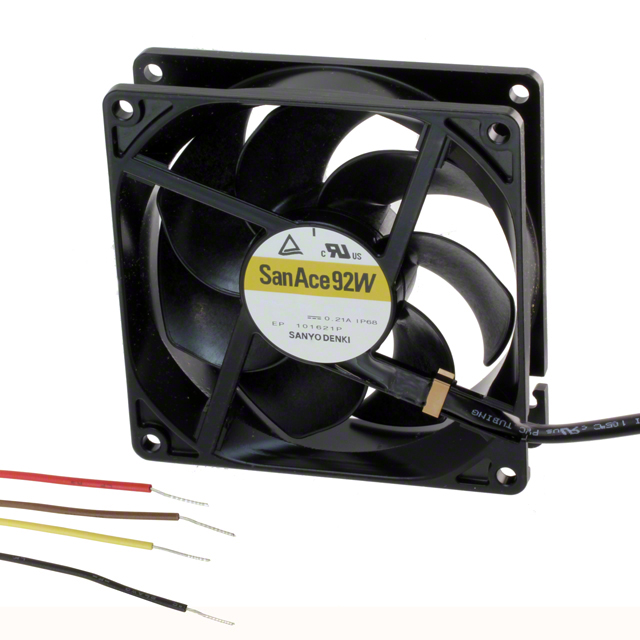

FAN AXIAL 92X25.2MM 24VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Features	Size / Dimension [y]	Size / Dimension [x]	Noise	Voltage - Rated	Width [x]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Ingress Protection	Air Flow	Air Flow	Power (Watts)	Termination	RPM
Sanyo Denki America Inc. 9WPA0924P4G0011	0.25 A	40000 Hrs	Plastic	Plastic	26.4 VDC	21.6 VDC	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	92 mm	92 mm	47 dB	24 VDC	25.2 mm	Ball	-20 ░C	70 °C	0.51 in H2O	127 Pa	IP68 - Dust Tight Waterproof	86.5 CFM	2.42 m³/min	6 W	4 Wire Leads	5700 RPM
Sanyo Denki America Inc. 9WPA0924P4G001	0.25 A	40000 Hrs	Plastic	Plastic	26.4 VDC	21.6 VDC	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	92 mm	92 mm	47 dB	24 VDC	25.2 mm	Ball	-20 ░C	70 °C	0.51 in H2O	127 Pa	IP68 - Dust Tight Waterproof	86.5 CFM	2.42 m³/min	6 W	4 Wire Leads	5700 RPM
