ELF-511 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

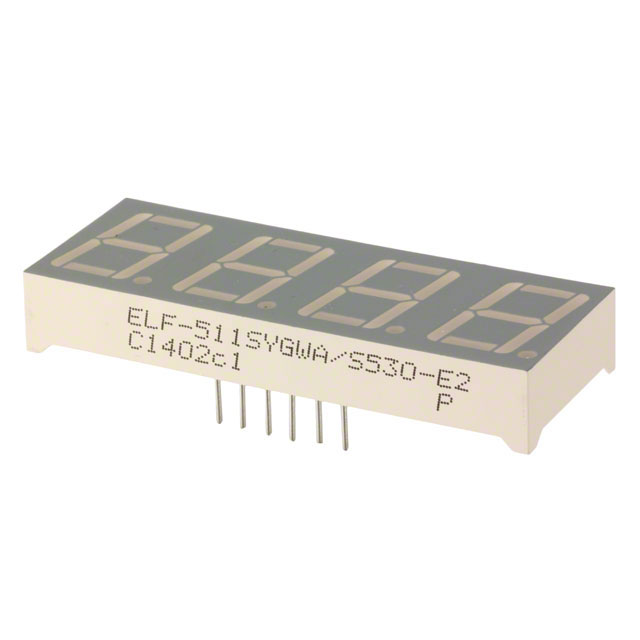

DISP 7SEG 0.56" QUAD Y-G 12DIP
| Part | Display Type | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Color | Common Pin | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Number of Characters | Current - Test | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Package / Case | Package / Case | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | 7-Segment | 4.5 mcd | 0.56 in | 14.22 mm | Yellow-Green | Common Cathode | 575 nm | 2 V | 4 | 20 mA | 19 mm | 0.315 in | 8 mm | 1.984 in | 50.4 mm | 0.748 in | 15.24 mm | 0.6 in | 12-DIP | |
 Everlight Electronics Co Ltd | 7-Segment | 0.56 in | 14.22 mm | Blue | Common Cathode | 468 nm | 3.5 V | 4 | 20 mA | 19 mm | 0.315 in | 8 mm | 1.984 in | 50.4 mm | 0.748 in | 15.24 mm | 0.6 in | 12-DIP | 130 mW |
