3-119 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

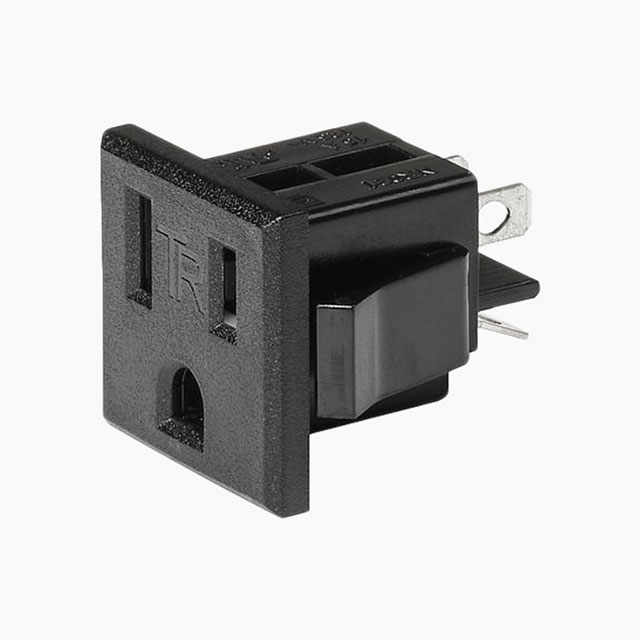

AC POWER ENTRY MODULES NR021 CONNECTOR OUTLET 15A 5-15R
| Part | Voltage Rating | Termination | Connector Style | Connector Type | Mounting Type | Material Flammability Rating | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Approval Agency | Ingress Protection | Panel Cutout Dimensions | Current Rating (Amps) | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 125 VAC | Solder Eyelet | NEMA 5-15R | Receptacle Female Sockets | Panel Mount Snap-In | UL94 V-0 | 1.6 mm | 0.031 " | 0.063 " | 0.79 mm | CSA cULus UL | IP20 | Variable Size | 15 A | ||
SCHURTER Inc. | 125 VAC | Solder Eyelet | NEMA 5-15R | Receptacle Female Sockets | Panel Mount Snap-In | UL94 V-0 | 1.6 mm | 0.031 " | 0.063 " | 0.79 mm | CSA cULus UL | IP20 | Variable Size | 15 A | ||
 SCHURTER Inc. | 125 VAC | IDC Quick Connect | NEMA 5-15R | Receptacle Female Sockets | Panel Mount Snap-In | UL94 V-0 | 2 mm | 0.031 " | 0.079 " | 0.79 mm | CSA cULus UL | IP20 | Variable Size | 15 A | 6.3 mm | 0.25 " |
 SCHURTER Inc. | 125 VAC | Solder Eyelet | NEMA 5-15R | Receptacle Female Sockets | Panel Mount Snap-In | UL94 V-0 | 1.6 mm | 0.031 " | 0.063 " | 0.79 mm | CSA cULus UL | IP20 | Variable Size | 15 A | ||
 SCHURTER Inc. | 125 VAC | IDC Quick Connect | NEMA 5-15R | Receptacle Female Sockets | Panel Mount Snap-In | UL94 V-0 | 2 mm | 0.031 " | 0.079 " | 0.79 mm | CSA cULus UL | IP20 | Variable Size | 15 A | 6.3 mm | 0.25 " |
 SCHURTER Inc. | 125 VAC | Solder Eyelet | NEMA 5-15R | Receptacle Female Sockets | Panel Mount Snap-In | UL94 V-0 | 1.6 mm | 0.031 " | 0.063 " | 0.79 mm | CSA cULus UL | IP20 | Variable Size | 15 A |
