MMI-M0PG Series
Manufacturer: Adam Tech
Beta
⌘K

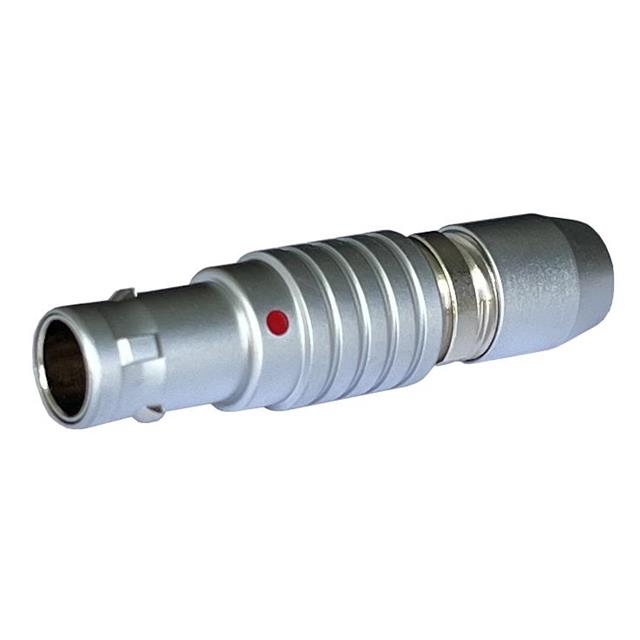

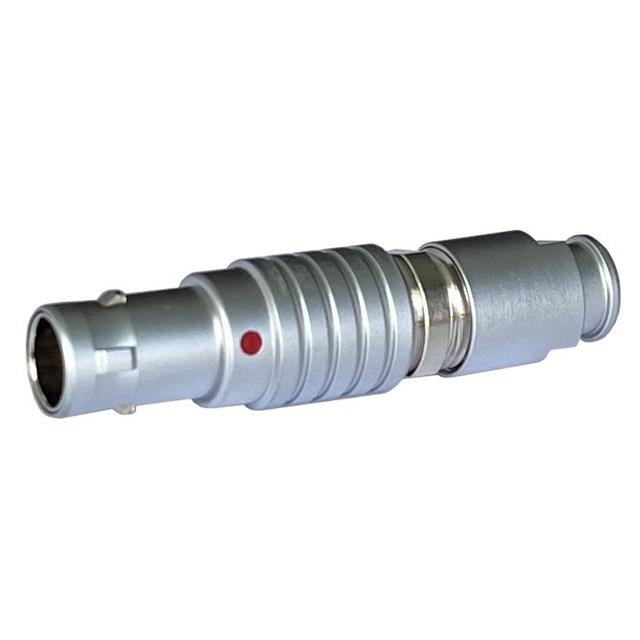

CONN PLUG MALE 6P GOLD SLDR CUP
| Part | Shell Material | Insert Material | Features | Contact Material | Fastening Type | Primary Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Shell Finish | Orientation [custom] | Color | Contact Finish - Mating | Voltage Rating | Number of Positions | Shielding | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell | Brass | Push-Pull | Metal | 2.5 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 200 V | 6 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell | Brass | Push-Pull | Metal | 5 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 200 V | 5 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell | Brass | Push-Pull | Metal | 5 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 200 V | 4 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell | Brass | Push-Pull | Metal | 8 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 250 V | 2 | Unshielded | IP50 - Dust Protected |
 Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Brass | Push-Pull | Metal | 2.5 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 200 V | 6 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Brass | Push-Pull | Metal | 8 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 250 V | 2 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Brass | Push-Pull | Metal | 5 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 200 V | 5 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Brass | Push-Pull | Metal | 7 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 250 V | Unshielded | IP50 - Dust Protected | |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Brass | Push-Pull | Metal | 5 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 200 V | 4 | Unshielded | IP50 - Dust Protected |
Adam Tech | Brass | Polyphenylene Sulfide (PPS) | Backshell | Brass | Push-Pull | Metal | 7 A | -55 C | 150 °C | Free Hanging (In-Line) | Plug Male Pins | Chrome | G | Silver | Gold | 250 V | Unshielded | IP50 - Dust Protected |
