W765FL Series

Catalog

RF ANT 850MHZ/900MHZ DOME PNL MT

Part	Features	Antenna Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Gain	Termination	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	VSWR	Mounting Type	Applications	Features

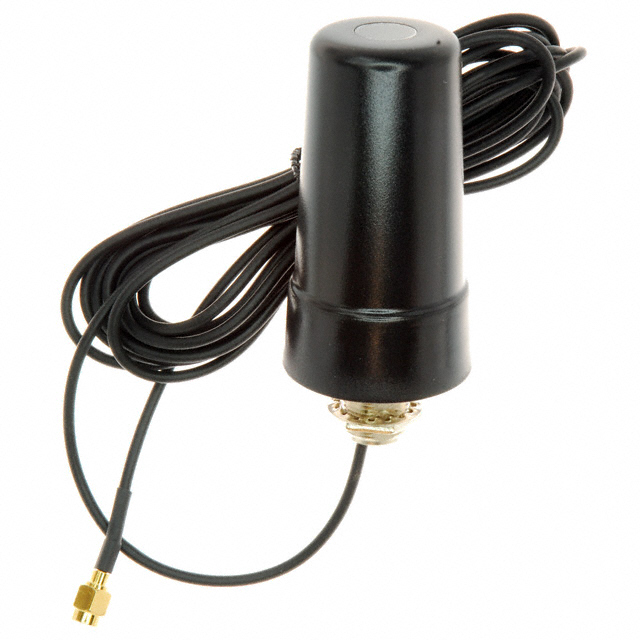

Nearson Inc. W765FL-120-AH-AGDP	Cable - 3m	Dome	72 mm	2.835 in	4	2 dBi	RP-SMA Male	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.71 GHz 824 MHz	1.99 GHz 960 MHz	2	Panel Mount
Nearson Inc. W765FL-10-RMM-AGDP	Cable - 254mm	Dome	72 mm	2.835 in	4	2 dBi	MMCX Male	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.71 GHz 824 MHz	1.99 GHz 960 MHz	2	Panel Mount

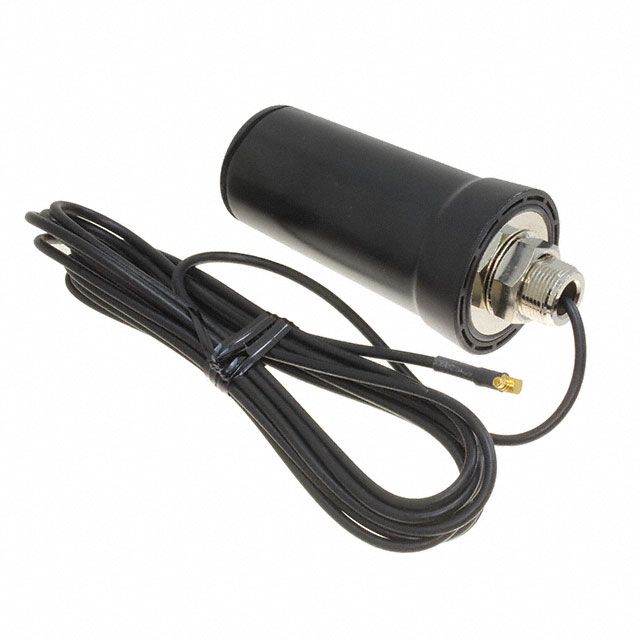

Nearson Inc. W765FL-100-RMM-AGDP	Cable	Dome	72 mm	2.835 in	2	2 dBi		1.85 GHz 892 MHz	1.71 GHz 824 MHz	1.99 GHz 960 MHz	2	Panel Mount	General Purpose	2.54 m
