103948 Series

Catalog

4X4 MTE SHRD PIN SR LATCH .100 ROHS COMPLIANT: NO

Part	Connector Type	Features	Contact Type	Wire Type	Number of Rows	Pitch	Pitch	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Cable Termination	Mounting Type	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity AMP Connectors 103948-3	Plug	Closed End	Male Pin	Ribbon Cable	1	0.1 "	2.54 mm	Black	0.38 µm	15 µin	Gold	IDC	Free Hanging (In-Line)	4	26 AWG	30 AWG
TE Connectivity AMP Connectors 103948-8	Plug	Closed End	Male Pin	Ribbon Cable	1	0.1 "	2.54 mm	Black	0.38 µm	15 µin	Gold	IDC	Free Hanging (In-Line)	9	26 AWG	30 AWG

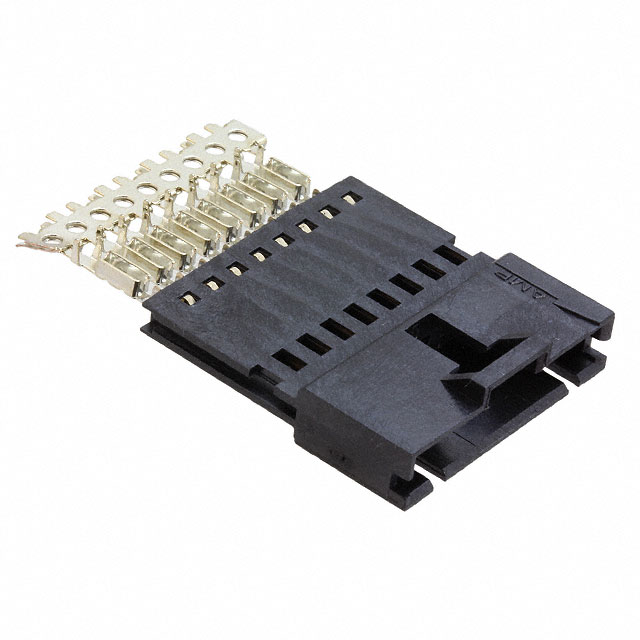

TE Connectivity AMP Connectors 103948-7	Plug	Closed End	Male Pin	Ribbon Cable	1	0.1 "	2.54 mm	Black	0.38 µm	15 µin	Gold	IDC	Free Hanging (In-Line)	8	26 AWG	30 AWG
TE Connectivity AMP Connectors 103948-6	Plug	Closed End	Male Pin	Ribbon Cable	1	0.1 "	2.54 mm	Black	0.38 µm	15 µin	Gold	IDC	Free Hanging (In-Line)	7	26 AWG	30 AWG
TE Connectivity AMP Connectors 103948-4	Plug	Closed End	Male Pin	Ribbon Cable	1	0.1 "	2.54 mm	Black	0.38 µm	15 µin	Gold	IDC	Free Hanging (In-Line)	5	26 AWG	30 AWG
