RC-1A-D Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 25A 12V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Termination Style | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Circuit | Illumination Type, Color | Color - Actuator/Cap | Actuator Type | Voltage Rating - DC | Current Rating (Amps) | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

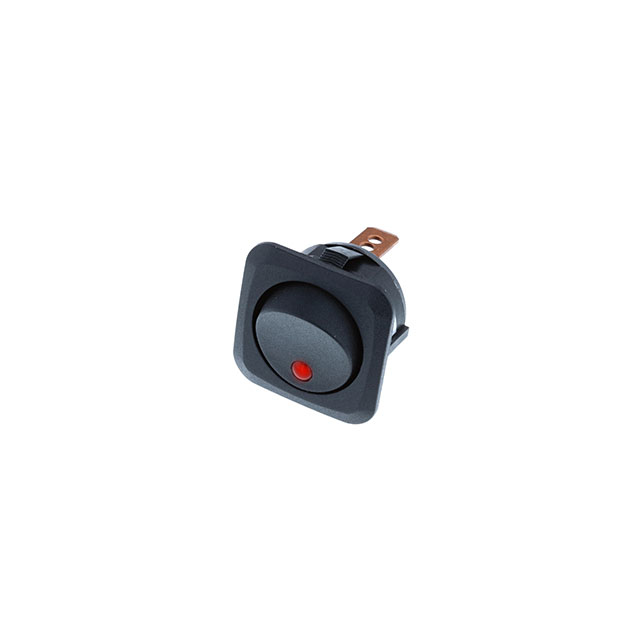

 Switch Components | 10000 Steps | 6000 Cycles | No Marking | Quick Connect - 0.250" (6.3mm) | 12 VDC | 24 mm | SPST | LED Red | Black | Round - Illuminated | 12 V | 25 A | Panel Mount Snap-In | On-Off |

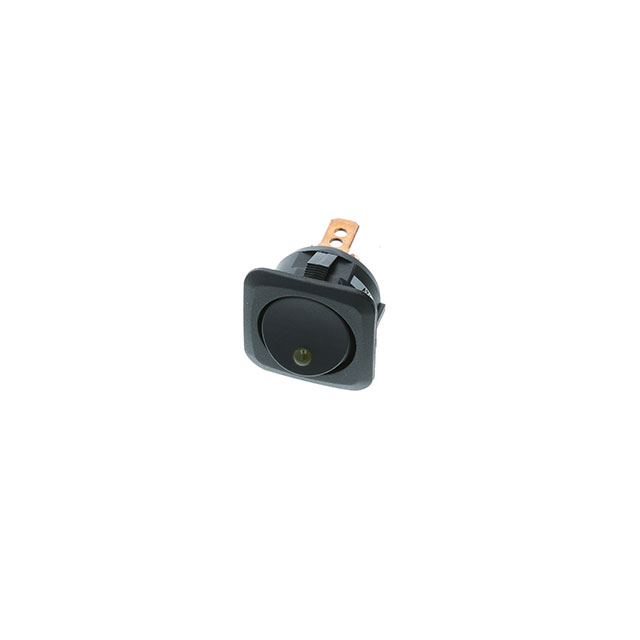

 Switch Components | 10000 Steps | 6000 Cycles | No Marking | Quick Connect - 0.250" (6.3mm) | 12 VDC | 24 mm | SPST | Amber LED | Black | Round - Illuminated | 12 V | 25 A | Panel Mount Snap-In | On-Off |

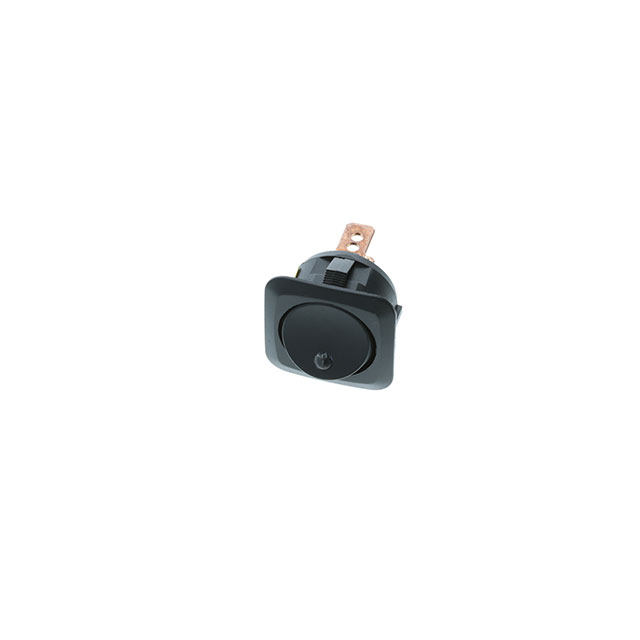

 Switch Components | 10000 Steps | 6000 Cycles | No Marking | Quick Connect - 0.250" (6.3mm) | 12 VDC | 24 mm | SPST | Blue LED | Black | Round - Illuminated | 12 V | 25 A | Panel Mount Snap-In | On-Off |
