SRP1038A Series

Catalog

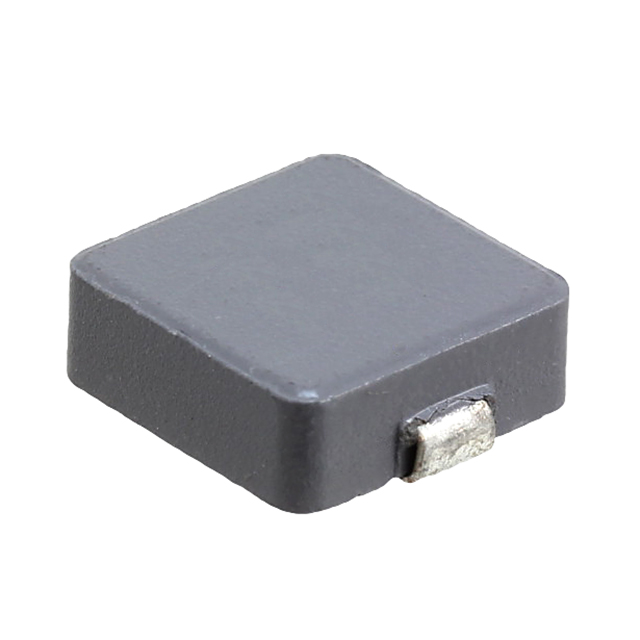

POWER INDUCTOR (SMD), 6.8 ΜH, 8.5 A, SHIELDED, 13.5 A, SRP1038A SERIES

Part	Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Frequency - Self Resonant	Material - Core	Mounting Type	Inductance	Current Rating (Amps)	Current - Saturation (Isat)	Q @ Freq	Shielding	Package / Case	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Bourns Inc. SRP1038A-6R8M	Drum Core Wirewound	4 mm	0.157 in	13 MHz	Carbonyl Powder	Surface Mount	6.8 µH	8.5 A	13.5 A	20 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C	23.3 mOhm	20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz
Bourns Inc. SRP1038A-8R2M	Drum Core Wirewound	4 mm	0.157 in	12 MHz	Carbonyl Powder	Surface Mount	8.2 µH	8 A	12.5 A	20 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C	24 mOhm	20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz
Bourns Inc. SRP1038A-5R6M	Drum Core Wirewound	4 mm	0.157 in	15 MHz	Carbonyl Powder	Surface Mount	5.6 µH	9 A	14 A	20 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C		20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz	19.3 mOhm
Bourns Inc. SRP1038A-R22M	Drum Core Wirewound	4 mm	0.157 in	155 MHz	Carbonyl Powder	Surface Mount	220 nH	35 A	60 A	10 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C	1 mOhm	20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz
Bourns Inc. SRP1038A-4R7M	Drum Core Wirewound	4 mm	0.157 in	16 MHz	Carbonyl Powder	Surface Mount	4.7 ÁH	10 A	17 A	20 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C		20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz	15.5 mOhm
Bourns Inc. SRP1038A-R56M	Drum Core Wirewound	4 mm	0.157 in		Carbonyl Powder	Surface Mount	560 nH	25 A	40 A	15 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C		20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz	1.8 mOhm
Bourns Inc. SRP1038A-R27M	Drum Core Wirewound	4 mm	0.157 in	120 MHz	Carbonyl Powder	Surface Mount	270 nH	33 A	60 A	10 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C	1 mOhm	20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz
Bourns Inc. SRP1038A-330M	Drum Core Wirewound	4 mm	0.157 in	6 MHz	Carbonyl Powder	Surface Mount	33 µH	3.5 A	5 A	20 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C	112 mOhm	20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz
Bourns Inc. SRP1038A-1R0M	Drum Core Wirewound	4 mm	0.157 in	47 MHz	Carbonyl Powder	Surface Mount	1 µH	18 A	36 A	20 100 kHz	Shielded	Nonstandard	AEC-Q200	-40 C	150 °C	3.3 mOhm	20 %	0.433 in	0.394 in	10 mm	11 mm	100 kHz
Bourns Inc. SRP1038A-R75M	Drum Core Wirewound	4 mm	0.157 in		Carbonyl Powder	Surface Mount	750 nH				Shielded	Nonstandard	AEC-Q200	-40 C	150 °C			0.433 in	0.394 in	10 mm	11 mm	100 kHz
