3113-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

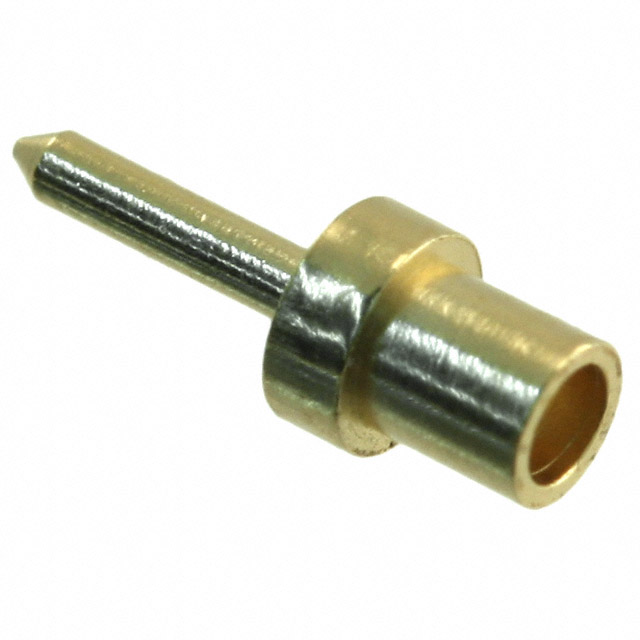

CONN PC PIN CIRC 0.025DIA GOLD
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Length - Above Flange [custom] | Length - Above Flange [custom] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Terminal Style | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Board Thickness | Board Thickness | Insulation | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.062 " | 1.57 mm | 0.217 in | 5.51 mm | PC Pin | 0.062 in | 1.57 mm | Through Hole | 0.125 in | 3.18 mm | 0.078 " | 1.98 mm | 0.64 mm | 0.025 in | Swage | Single End | Gold | 0.25 Ám | 10 Áin | 0.79 mm | 0.031 in | Non-Insulated | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.062 " | 1.57 mm | 0.217 in | 5.51 mm | PC Pin | 0.062 in | 1.57 mm | Through Hole | 0.125 in | 3.18 mm | 0.078 " | 1.98 mm | 0.64 mm | 0.025 in | Swage | Single End | Tin-Lead | 5.08 Ám | 200 Áin | 0.79 mm | 0.031 in | Non-Insulated | Brass Alloy |
Mill-Max Manufacturing Corp. | 0.062 " | 1.57 mm | 0.217 in | 5.51 mm | PC Pin | 0.062 in | 1.57 mm | Through Hole | 0.125 in | 3.18 mm | 0.078 " | 1.98 mm | 0.64 mm | 0.025 in | Swage | Single End | Tin | 5.08 Ám | 200 Áin | 0.79 mm | 0.031 in | Non-Insulated | Brass Alloy |
