0322-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]

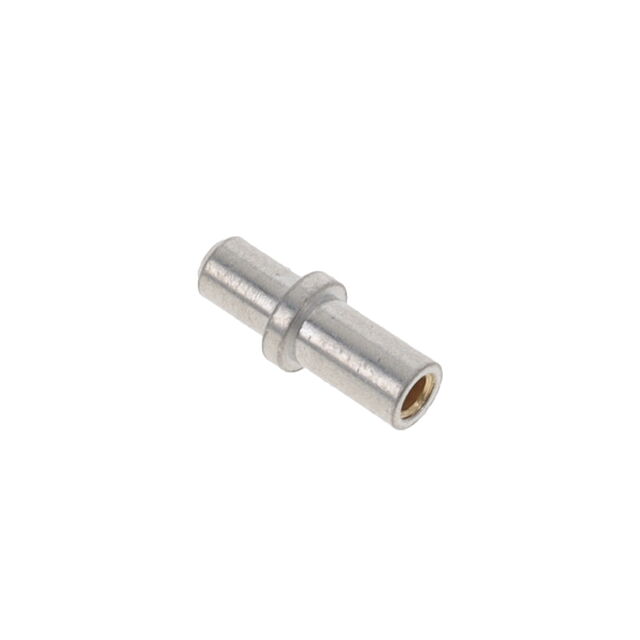

Mill-Max Manufacturing Corp. 0322-0-15-80-34-27-10-0	-55 C	125 °C	No Tail	30 Áin	0.76 Ám	8.05 mm	0.317 in	1.63 mm	0.064 in	Solder	0.125 in	3.18 mm	0.22 in	5.59 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	Gold	2.26 mm	0.089 in
Mill-Max Manufacturing Corp. 0322-0-15-01-34-01-10-0	-55 C	125 °C	No Tail	200 Áin	5.08 Ám	8.05 mm	0.317 in	1.63 mm	0.064 in	Solder	0.125 in	3.18 mm	0.22 in	5.59 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	Tin-Lead	2.26 mm	0.089 in

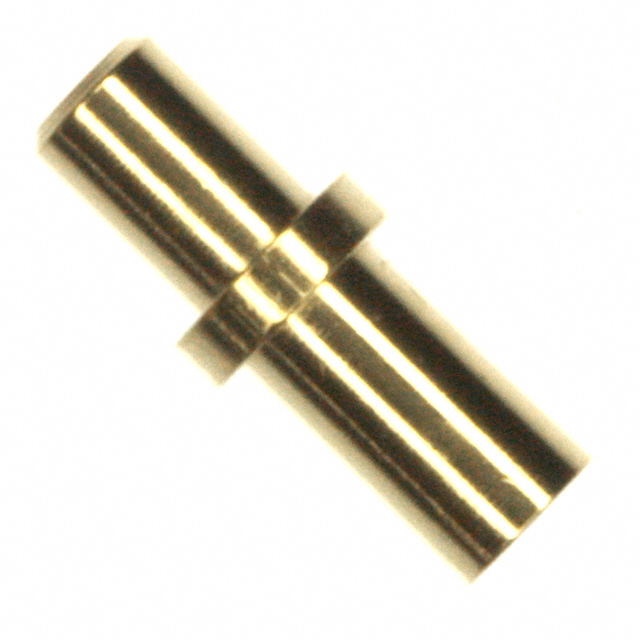

Mill-Max Manufacturing Corp. 0322-0-15-15-34-27-10-0	-55 C	125 °C	No Tail	30 Áin	0.76 Ám	8.05 mm	0.317 in	1.63 mm	0.064 in	Solder	0.125 in	3.18 mm	0.22 in	5.59 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	Gold	2.26 mm	0.089 in
Mill-Max Manufacturing Corp. 0322-0-15-80-34-80-10-0	-55 C	125 °C	No Tail	200 Áin	5.08 Ám	8.05 mm	0.317 in	1.63 mm	0.064 in	Solder	0.125 in	3.18 mm	0.22 in	5.59 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	Tin	2.26 mm	0.089 in
