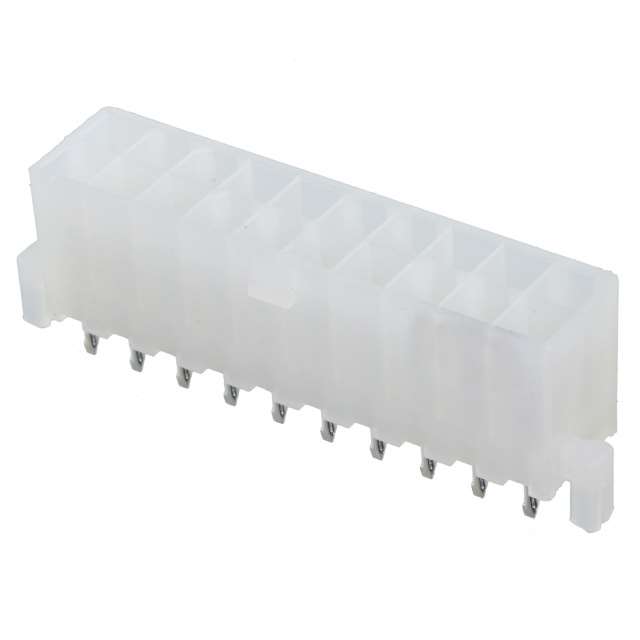

794311 Series

Catalog

CONN HEADER VERT 20POS 4.2MM

Part	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Style	Pitch - Mating	Pitch - Mating	Features	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Type	Connector Type	Material Flammability Rating	Contact Finish - Mating	Insulation Color	Voltage Rating	Contact Finish - Post	Termination	Number of Positions	Shrouding	Insulation Material	Number of Positions Loaded	Contact Material	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 794311-2	2	0.76 Ám	30 Áin	0.138 in	3.5 mm	Square	Board to Board Cable	0.165 in	4.2 mm	Board Lock	Locking Ramp	0.165 in	4.2 mm	Through Hole	Male Pin	Header	UL94 V-2	Gold	Natural	600 VAC	Tin-Lead	Solder	20	Shrouded - 4 Wall	Nylon Polyamide (PA)	All	Copper Alloy	12.8 mm	0.504 "	-55 C	105 ░C

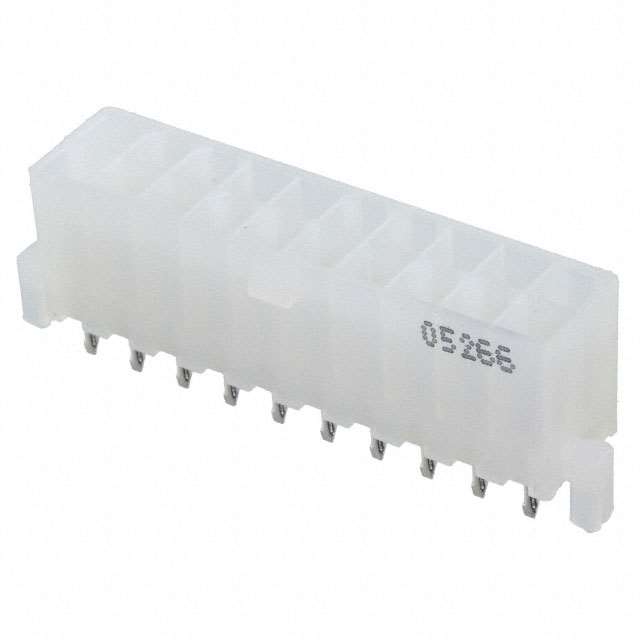

TE Connectivity AMP Connectors 1-794311-1	2	3 µm	118.1 µin	0.138 in	3.5 mm	Square	Board to Board Cable	0.165 in	4.2 mm	Board Lock	Locking Ramp	0.165 in	4.2 mm	Through Hole	Male Pin	Header	UL94 V-2		Natural	600 VAC	Tin	Solder	20	Shrouded - 4 Wall	Nylon Polyamide (PA)	All	Copper Alloy	12.8 mm	0.504 "	-55 C	105 ░C
