M1233 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

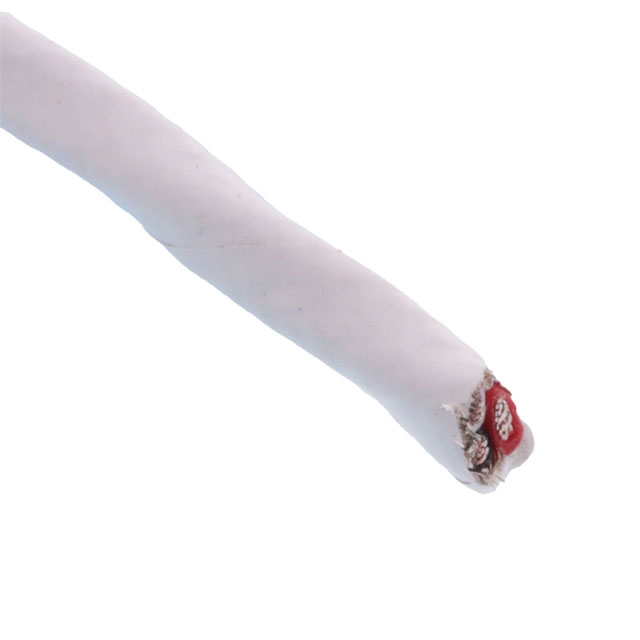

CABLE 3CON 20AWG WHT SHLD 100'
| Part | Shield Coverage | Shield Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Voltage | Conductor Insulation | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Silver Coated | Copper Tinned | 200 °C | -55 C | 3 | 600 V | Polytetrafluoroethylene (PTFE) | 100 ft | 30.5 m | 20 AWG | Polytetrafluoroethylene (PTFE) | 0.0098 " | 0.25 mm | 4.34 mm | 0.171 " | White | 19 | 32 AWG | Braid | Multi-Conductor |
