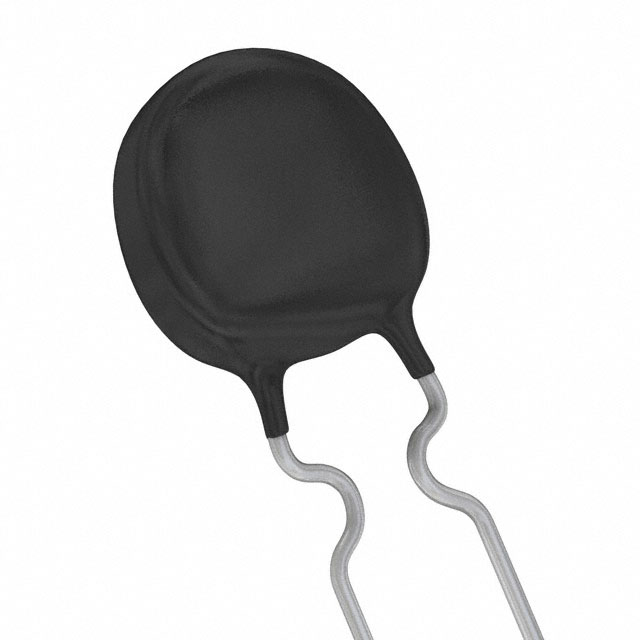

PTCCL Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

PTC RESET FUSE 145V 210MA RADIAL

Part	Lead Spacing	Lead Spacing	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Trip (It)	Resistance - 25°C (Typ)	Package / Case	Mounting Type	Type	Current - Hold (Ih) (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Current - Max [Max]	Size / Dimension [custom]	Size / Dimension [custom]	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [custom]	Height - Seated (Max) [Max]	Size / Dimension [z]	Size / Dimension
Vishay General Semiconductor - Diodes Division PTCCL07H211FBE	5 mm	0.197 in	145 V	70 °C	0 °C	315 mA	12 Ohms	Disc Radial	Through Hole	Ceramic	210 mA	12 mm	0.472 "	0.276 in	5 mm	0.197 in	7 mm	1.4 A
Vishay General Semiconductor - Diodes Division PTCCL09H191HBE	5 mm	0.197 in	265 V	70 °C	0 °C	285 mA	18 Ohms	Disc Radial	Through Hole	Ceramic	190 mA	13.5 mm	0.532 "	0.335 "			8.5 mm	1 A	5.5 mm	0.217 in
Vishay General Semiconductor - Diodes Division PTCCL11H211HTE	5 mm	0.197 in	265 V	70 °C	0 °C	315 mA	17 Ohms	Disc Radial	Through Hole	Ceramic	210 mA						0.413 in	1.3 A	5.5 mm		15.5 mm	0.61 "	10.5 mm	0.217 in
Vishay General Semiconductor - Diodes Division PTCCL05H940EBC	5 mm	0.197 in	60 V	85 °C	-40 °C	145 mA	50 Ohms	Disc Radial	Through Hole	Ceramic	94 mA			0.197 "		0.157 "	5 mm	800 mA				0.394 in			10 mm	4 mm
Vishay General Semiconductor - Diodes Division PTCCL05H930FTE	5 mm	0.197 in	145 V	70 °C	0 °C	140 mA	55 Ohms	Disc Radial	Through Hole	Ceramic	93 mA			0.197 "		0.197 in		450 mA				0.394 in			10 mm		5 mm
Vishay General Semiconductor - Diodes Division PTCCL11H211HBE	5 mm	0.197 in	265 V	70 °C	0 °C	315 mA	17 Ohms	Disc Radial	Through Hole	Ceramic	210 mA						0.413 in	1.3 A	5.5 mm		15.5 mm	0.61 "	10.5 mm	0.217 in
Vishay General Semiconductor - Diodes Division PTCCL07H321DBE	5 mm	0.197 in	30 V	85 °C	-40 °C	480 mA	5 Ohms	Disc Radial	Through Hole	Ceramic	320 mA	12 mm	0.472 "	0.276 in	4 mm	0.157 "	7 mm	3.5 A
Vishay General Semiconductor - Diodes Division PTCCL05H190HTE	5 mm	0.197 in	265 V	70 °C	0 °C	29 mA	1.2 kOhms	Disc Radial	Through Hole	Ceramic	19 mA			0.197 "			5 mm	140 mA		0.217 in		0.394 in		5.5 mm	10 mm
Vishay General Semiconductor - Diodes Division PTCCL13H411FBE	5 mm	0.197 in	145 V	70 °C	0 °C	615 mA	4.6 Ohms	Disc Radial	Through Hole	Ceramic	410 mA			0.492 in	5 mm	0.197 in	12.5 mm					0.689 in			17.5 mm
Vishay General Semiconductor - Diodes Division PTCCL05H630HTE	5 mm	0.197 in	265 V	70 °C	0 °C	95 mA	120 Ohms	Disc Radial	Through Hole	Ceramic	63 mA			0.197 "		0.197 in		450 mA				0.394 in			10 mm		5 mm
