R40413 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
TERMINATION: N M 4GHZ 1W 50OHMS
| Part | Body Material | Dielectric Material | Connector Type | Contact Material | Contact Finish | Impedance | Body Finish | Connector Style | Frequency - Max [Max] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|

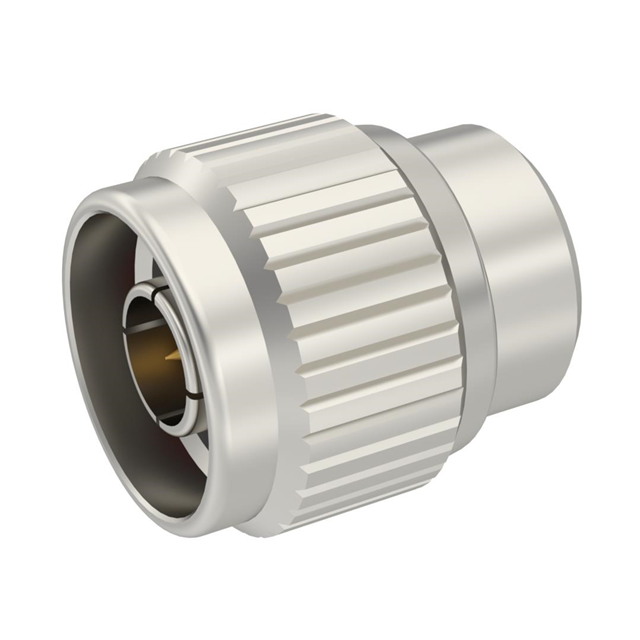

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Plug Male Pin | Brass | Gold | 50 Ohms | Nickel | N Type | 4 GHz | Cap Free Hanging | |
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Plug Male Pin | Brass | Gold | 50 Ohms | Nickel | N Type | 4 GHz | Cap Free Hanging | |

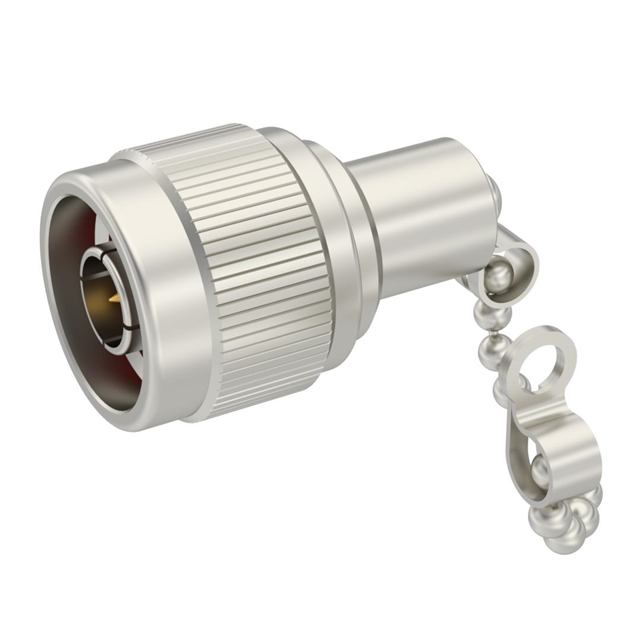

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Plug Male Pin | Brass | Gold | 50 Ohms | Nickel | N Type | 4 GHz | Cap Free Hanging | Chain |

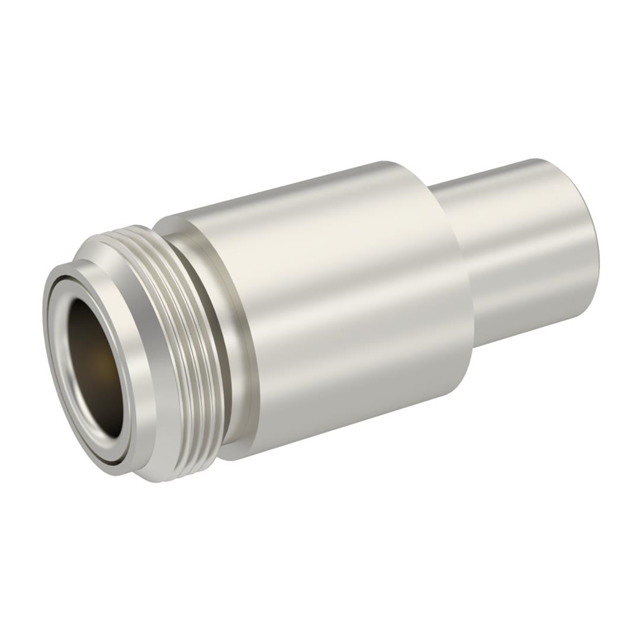

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Beryllium Copper | Gold | 50 Ohms | Nickel | N Type | 4 GHz | Cap Free Hanging |
