PTC02 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Contact Type	Overall Contact Length	Overall Contact Length	Termination	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Shape	Insulation Color	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Style	Shrouding	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Current Rating (Amps)	Connector Type	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]

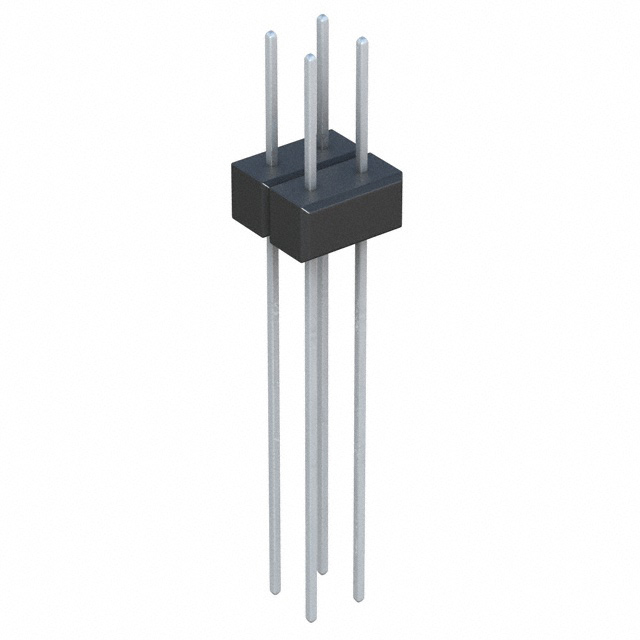

Sullins Connector Solutions PTC02DAGN	Male Pin	26.67 mm	1.05 in	Solder	0.23 in	5.84 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull	0.1 in	2.54 mm	2	3 A	Header	Tin	4	100 çin	2.54 çm	UL94 V-0	0.72 "	18.29 mm

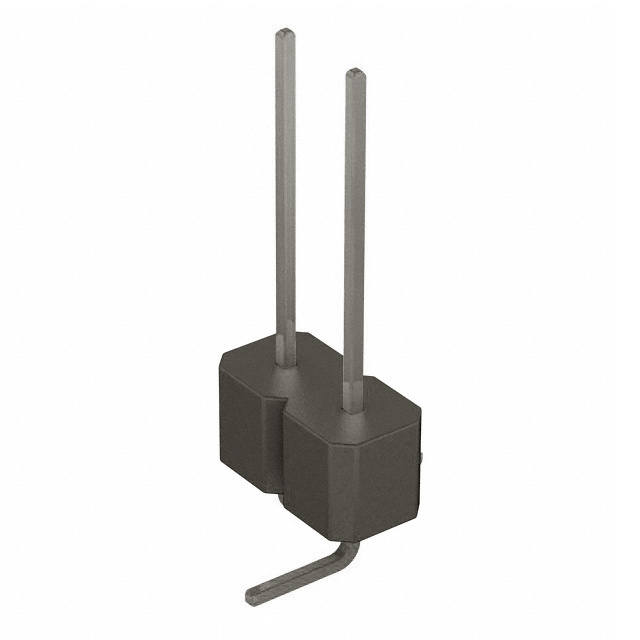

Sullins Connector Solutions PTC02SBAN	Male Pin			Solder	0.23 in	5.84 mm	Right Angle Through Hole	Square	Black	Polyester Thermoplastic	0.14 in	3.56 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull				3 A	Header	Tin	2	100 çin	2.54 çm	UL94 V-0	0.12 in	3.05 mm	1

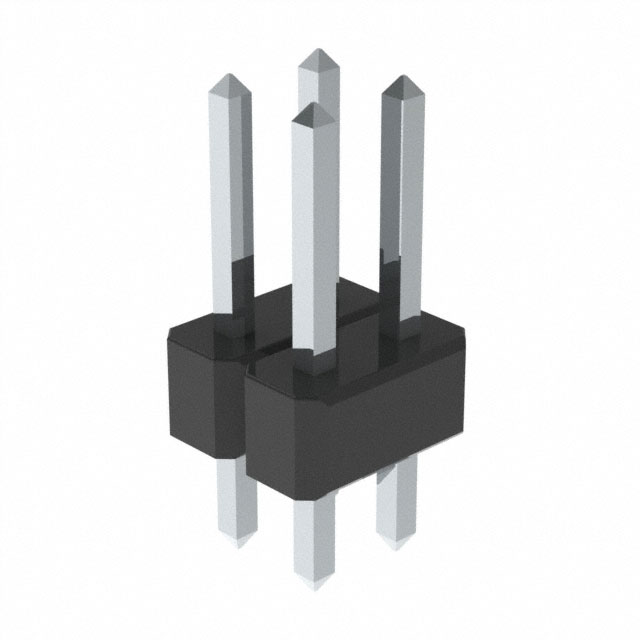

Sullins Connector Solutions PTC02DAAN	Male Pin			Solder	0.23 in	5.84 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull	0.1 in	2.54 mm	2	3 A	Header	Tin	4	100 çin	2.54 çm	UL94 V-0	0.12 in	3.05 mm		11.43 mm	0.45 in
Sullins Connector Solutions PTC02SFAN	Male Pin			Solder	0.318 in	8.08 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull				3 A	Header	Tin	2	100 çin	2.54 çm	UL94 V-0	0.12 in	3.05 mm	1	13.67 mm	0.538 in

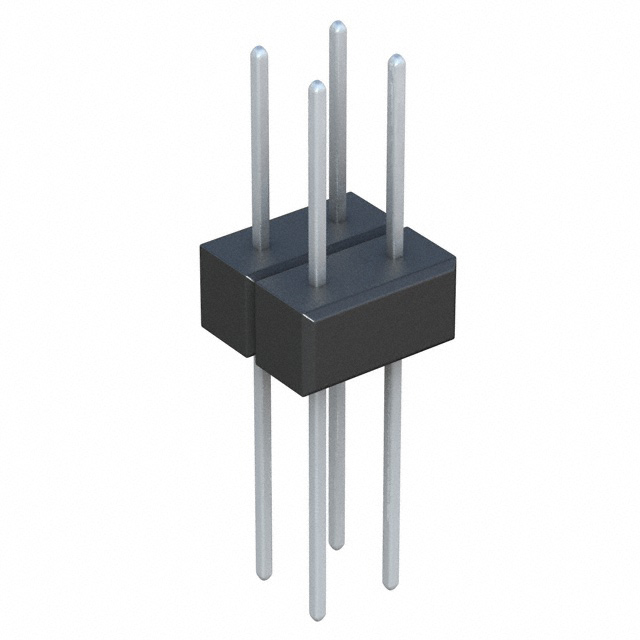

Sullins Connector Solutions PTC02DACN	Male Pin	16.51 mm	0.65 in	Solder	0.23 in	5.84 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull	0.1 in	2.54 mm	2	3 A	Header	Tin	4	100 çin	2.54 çm	UL94 V-0	0.32 in	8.13 mm

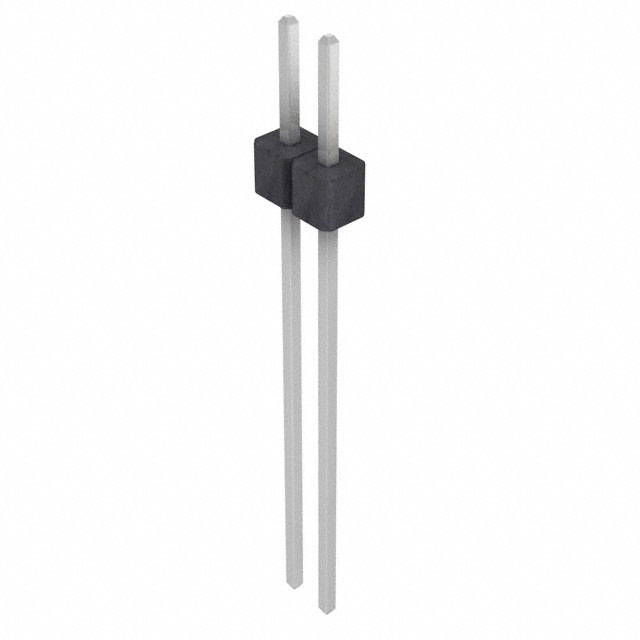

Sullins Connector Solutions PTC02SAHN	Male Pin	29.21 mm	1.15 in	Solder	0.23 in	5.84 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull				3 A	Header	Tin	2	100 çin	2.54 çm	UL94 V-0	0.82 in	20.83 mm	1

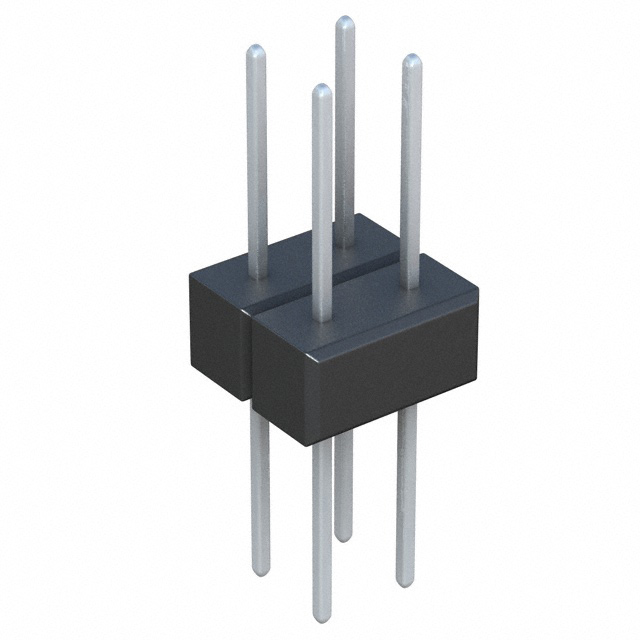

Sullins Connector Solutions PTC02DABN	Male Pin	14.22 mm	0.56 in	Solder	0.23 in	5.84 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull	0.1 in	2.54 mm	2	3 A	Header	Tin	4	100 çin	2.54 çm	UL94 V-0	0.23 "	5.84 mm

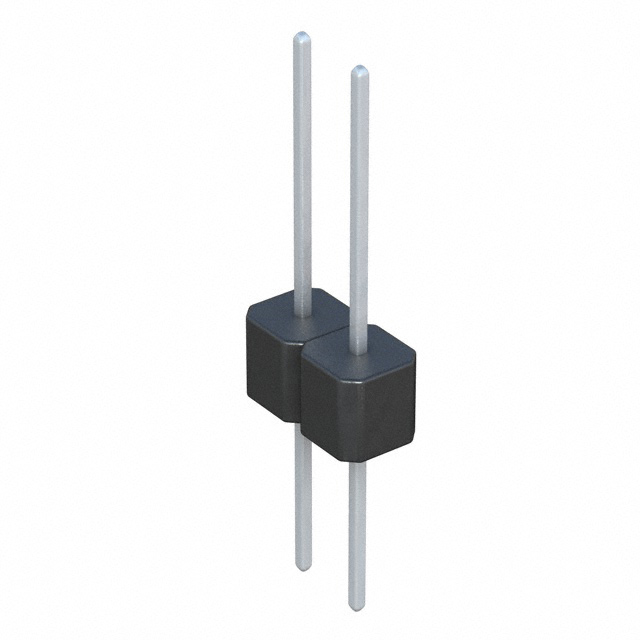

Sullins Connector Solutions PTC02SFBN	Male Pin	16.21 mm	0.638 in	Solder	0.318 in	8.08 mm	Through Hole	Square	Black	Polyester Thermoplastic	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull				3 A	Header	Tin	2	100 çin	2.54 çm	UL94 V-0	0.22 in	5.58 mm	1

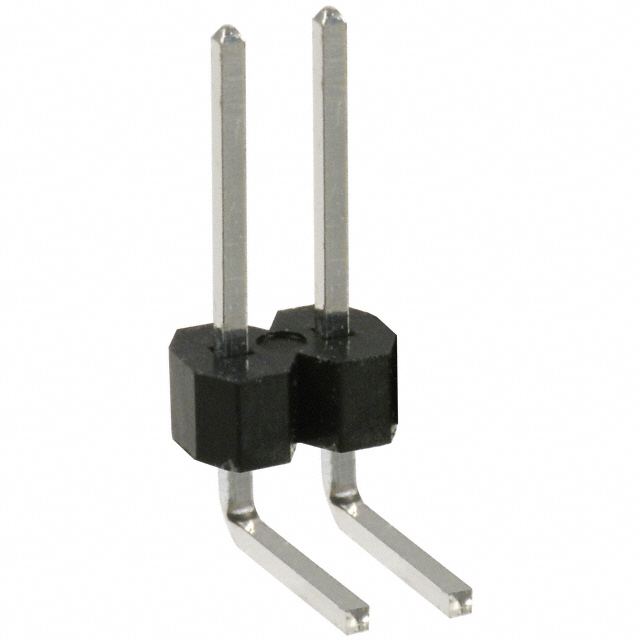

Sullins Connector Solutions PTC02SGBN	Male Pin			Solder	0.318 in	8.08 mm	Right Angle Through Hole	Square	Black	Polyester Thermoplastic	0.14 in	3.56 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull				3 A	Header	Tin	2	100 çin	2.54 çm	UL94 V-0	0.22 in	5.58 mm	1

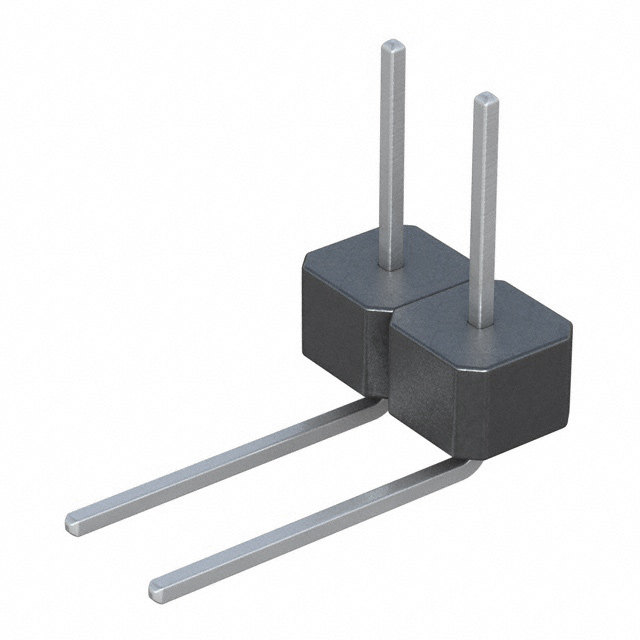

Sullins Connector Solutions PTC02SBCN	Male Pin			Solder	0.23 in	5.84 mm	Right Angle Through Hole	Square	Black	Polyester Thermoplastic	0.14 in	3.56 mm	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	All	Board to Board Cable	Unshrouded	Push-Pull				3 A	Header	Tin	2	100 çin	2.54 çm	UL94 V-0	0.32 in	8.13 mm	1
