920-0171 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K

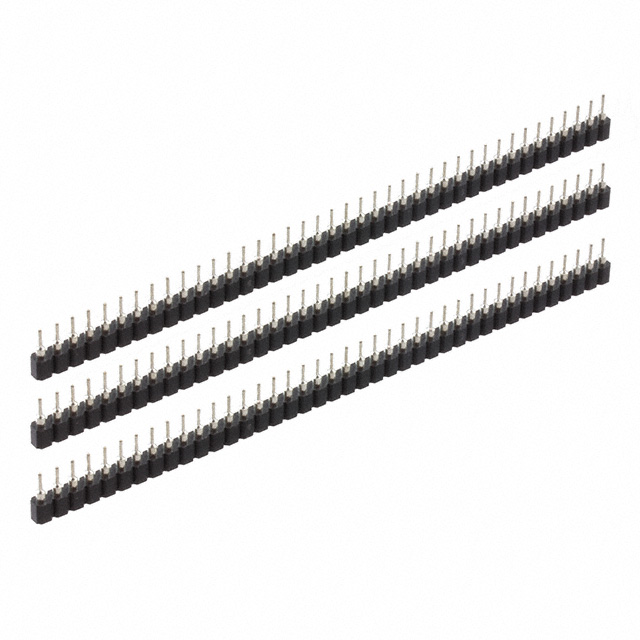

CONN HDR 40POS 0.1 GOLD PCB 3PC
| Part | Contact Material | Insulation Material | Contact Shape | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions | Contact Type | Material Flammability Rating | Connector Type | Current Rating (Amps) | Termination | Mounting Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Finish - Post | Number of Rows | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Brass | Polybutylene Terephthalate (PBT) | Circular | 0.1 " | 2.54 mm | Push-Pull | 40 | Female Socket | UL94 V-0 | Header Breakaway | 3 A | Solder | Through Hole | 4.5 mm | 0.177 in | 3 mm | 0.118 in | Gold | -40 C | 105 ░C | Black | Gold | 1 | All |
