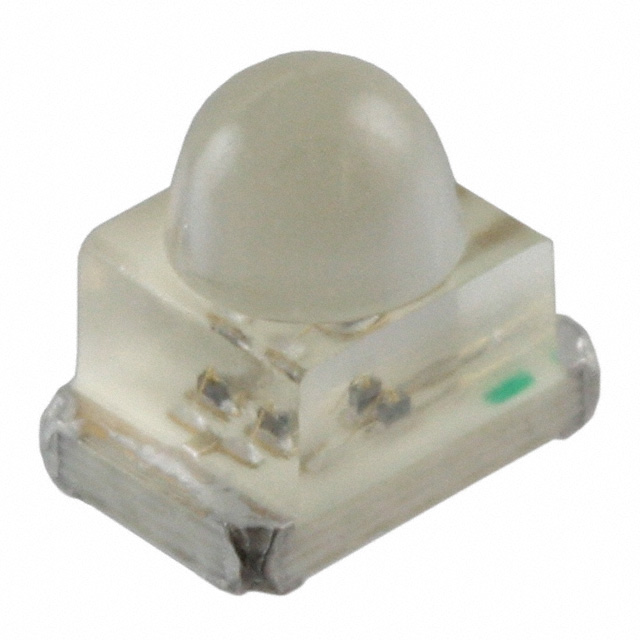

APBDA3020 Series

Catalog

LED GREEN/RED CLEAR 3SMD R/A

Part	Wavelength - Peak	Mounting Type	Lens Size [diameter]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating	Color	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lens Style	Package / Case	Supplier Device Package	Lens Transparency	Height (Max) [z]	Wavelength - Dominant	Viewing Angle	Lens Color	Configuration	Current - Test [custom]	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant	Wavelength - Peak	Current - Test
Kingbright APBDA3020SURKZGKC-GX	574 nm 645 nm	Right Angle Surface Mount	1.7 mm	20 mA	20 mA	300 mcd 900 mcd	Green Red	3 mm	2.8 mm	1.95 V 2.1 V	Round with Domed Top	3-SMD No Lead	3-SMD	Clear	2.2 mm	570nm Green 630nm Red	15 °	Colorless
Kingbright APBDA3020QBDCGKC-GX	460 nm 574 nm	Right Angle Surface Mount	1.9 mm Dia		20 mA	300 mcd 300 mcd	Blue Green	3 mm	2.8 mm	2.1 V 3.3 V	Round with Domed Top	3-SMD No Lead	3-SMD	Clear		465nm Blue 570nm Green	15 °	Colorless	Common Anode	20 mA	2 mm
Kingbright APBDA3020SURKCGKC-GX	574 nm 645 nm	Right Angle Surface Mount	1.9 mm Dia	20 mA	20 mA	300 mcd 300 mcd	Green Red	3 mm	2.8 mm	1.95 V 2.1 V	Round with Domed Top	3-SMD No Lead	SMD	Clear		570nm Green 630nm Red	15 °	Colorless	Common Anode		2 mm

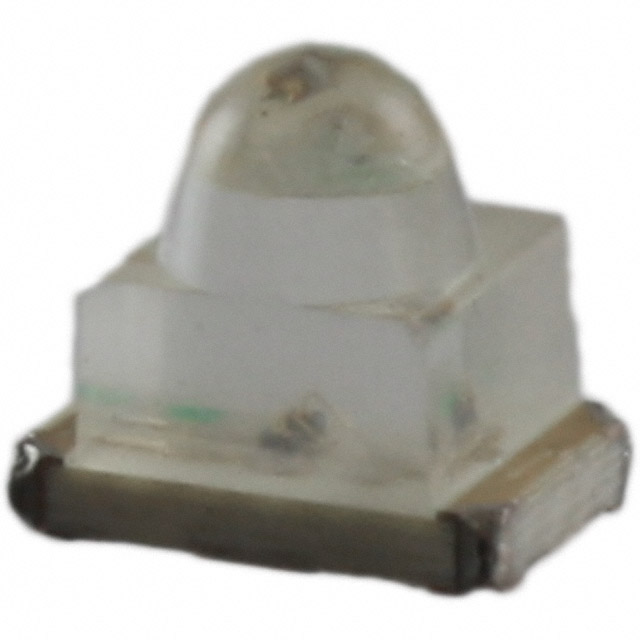

Kingbright APBDA3020CGKSYKC-GX		Right Angle Surface Mount	1.9 mm Dia			280 mcd 700 mcd	Green Yellow	3 mm	2.8 mm		Round with Domed Top	3-SMD No Lead	SMD	Clear			15 °	Colorless	Common Anode		2 mm	2.1 V	2 V	570 nm 590 nm	574nm Green 590nm Yellow	20 mA 20 mA
