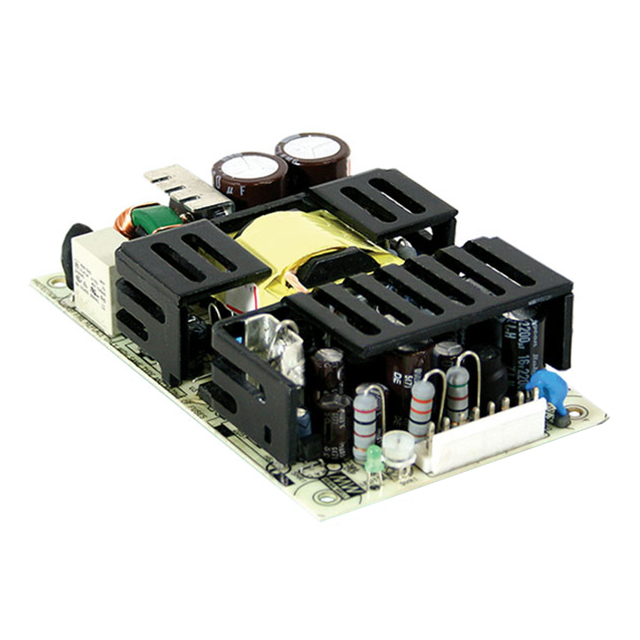

RPT-75 Series

Catalog

AC/DC CONVERTER 5V 12V -5V 69W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output 3	Power (Watts)	Voltage - Output 2	Number of Outputs	Voltage - Isolation	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 2	Voltage - Output 1	Applications	Efficiency	Voltage - Output 3	Current - Output 1
MEAN WELL USA Inc. RPT-75A	70 °C	-20 °C	CB CE cURus TUV	500 mA	69 W	12 V	3	4000 V	Adjustable Output Universal Input	5 "	76.2 mm	31 mm	1.22 in	3 "	127 mm	Open Frame	Chassis Mount	264 VAC 370 VDC	90 VAC 127 VDC	3 A	5 V	Medical	76 %	-5 V	6 A
MEAN WELL USA Inc. RPT-75C	70 °C	-20 °C	CB CE cURus TUV	500 mA	72 W	15 V	3	4000 V	Adjustable Output Universal Input	5 "	76.2 mm	31 mm	1.22 in	3 "	127 mm	Open Frame	Chassis Mount	264 VAC 370 VDC	90 VAC 127 VDC	2.3 A	5 V	Medical	77 %	-15 V	6 A
MEAN WELL USA Inc. RPT-75B	70 °C	-20 °C	CB CE cURus TUV	500 mA	72 W	12 V	3	4000 V	Adjustable Output Universal Input	5 "	76.2 mm	31 mm	1.22 in	3 "	127 mm	Open Frame	Chassis Mount	264 VAC 370 VDC	90 VAC 127 VDC	3 A	5 V	Medical	77 %	-12 V	6 A
