1450 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

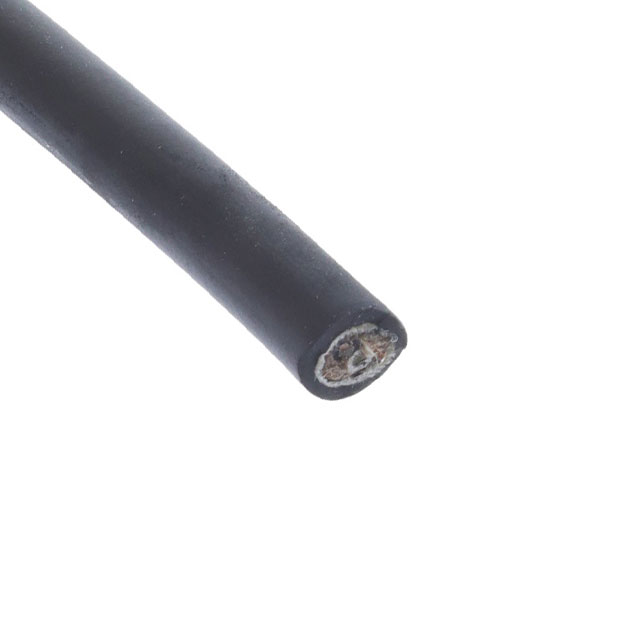

MULTI-CONDUCTOR CABLES 18AWG 2C BRD SHLD 100 FT SPOOL BLACK
| Part | Shield Coverage | Shield Material | Usage | Conductor Insulation | Voltage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Material | Cable Type | Jacket Color | Number of Conductors | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Communication Control | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | 18 AWG | 41 | 34 | 100 ft | 30.5 m | Braid | Polychloroprene | Multi-Conductor | Black | 2 | Copper Tinned | 7.57 mm | 0.298 " | -20 ░C | 60 °C | 1.143 mm | 0.045 in |
