PRPN042 Series

Catalog

CONN HEADER VERT 8POS 2MM

Part	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Contact Type	Insulation Material	Number of Positions	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Style	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Mounting Type	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Length - Post [custom]	Contact Length - Post

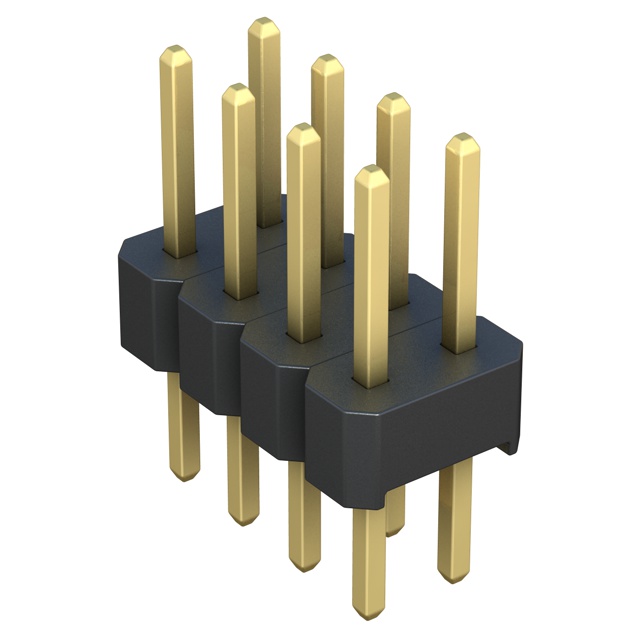

Sullins Connector Solutions PRPN042PAEN	4 mm	0.157 in	UL94 V-0	2	2 mm	0.079 in	Square	Push-Pull	-40 C	105 ░C	Solder	Header	Male Pin	Polyester	8	Gold	2 mm	0.079 in	All	Unshrouded	0.079 "	2 mm	Board to Board Cable	8.8 mm	0.346 in	Gold	Through Hole	Black	Brass	Flash	Flash	0.11 in	2.79 mm

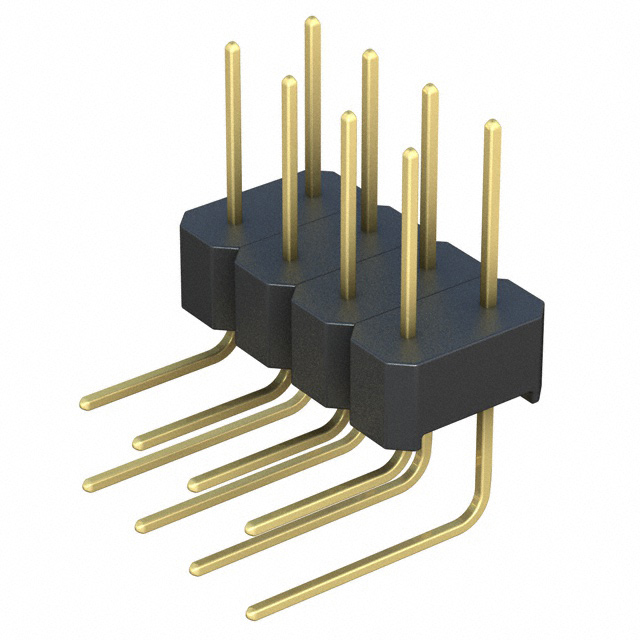

Sullins Connector Solutions PRPN042PARN	4 mm	0.157 in	UL94 V-0	2	4 mm	0.157 in	Square	Push-Pull	-40 C	105 ░C	Solder	Header	Male Pin	Polyester	8	Gold	2 mm	0.079 in	All	Unshrouded	0.079 "	2 mm	Board to Board Cable			Gold	Right Angle Through Hole	Black	Brass	Flash	Flash	0.11 in	2.79 mm
