GF-1326 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE DPDT 13A 125V
| Part | Electrical Life | Actuator Material | Mechanical Life | Switch Travel | Contact Material | Voltage Rating - AC | Switch Function | Termination Style | Contact Finish | Current Rating (Amps) | Contact Timing | Voltage Rating - DC | Circuit | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Actuator Length [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

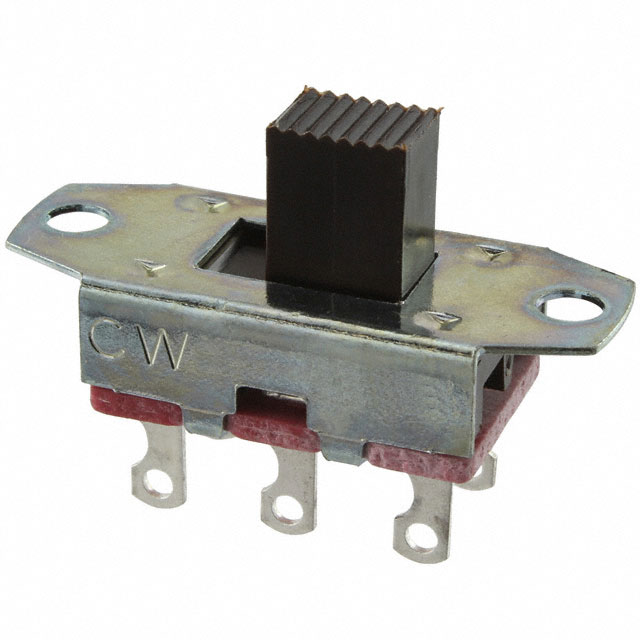

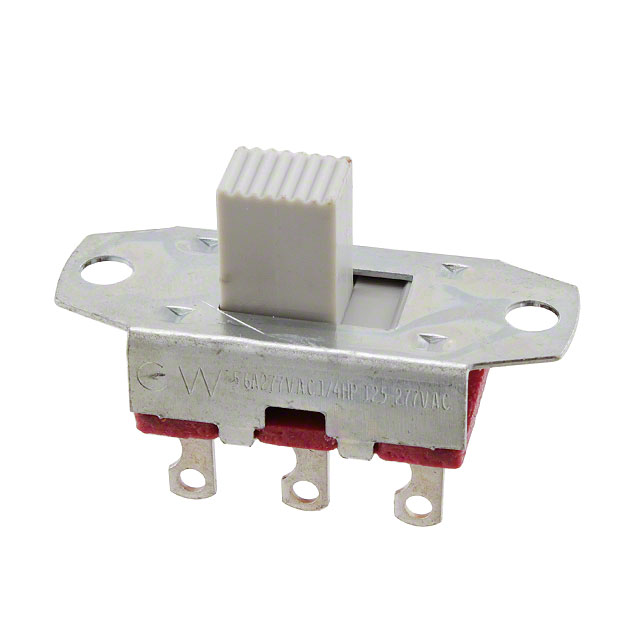

 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 3.89 mm | Copper | 125 V | On-On | Solder Lug | Silver | 13 A 500 mA | Not Specified | 125 VDC | DPDT | Panel Mount | -10 °C | 104 °C | Standard | 8.74 mm | |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | Copper | 125 V | On-On | Solder Lug | Silver | 13 A 500 mA | Not Specified | 125 VDC | DPDT | Panel Mount | -10 °C | 104 °C | Standard | 8.74 mm | |
 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 3.89 mm | Copper | 125 V | On-On | Solder Lug | Silver | 13 A 500 mA | Not Specified | 125 VDC | DPDT | Panel Mount | -10 °C | 104 °C | Standard | 8.74 mm | |

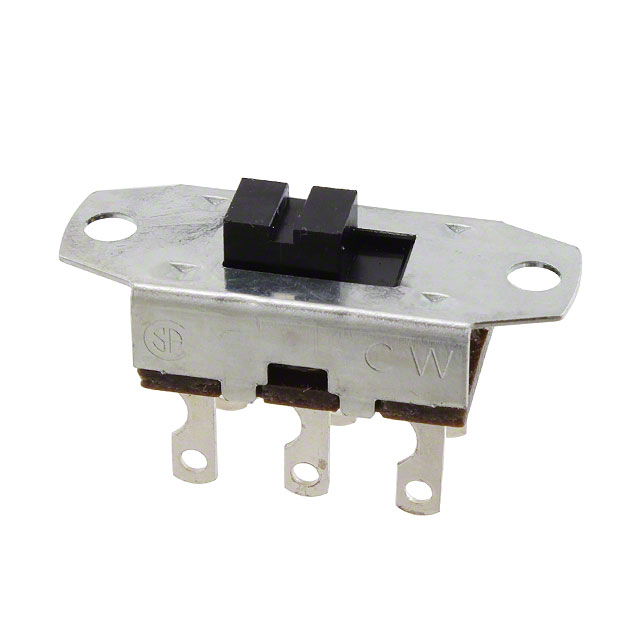

 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | Copper | 125 V | On-On (Line Voltage Selector) | Solder Lug | Silver | 13 A 500 mA | Not Specified | 125 VDC | DPDT | Panel Mount | -10 °C | 104 °C | Screwdriver Slot | 3.18 mm | No Marking |

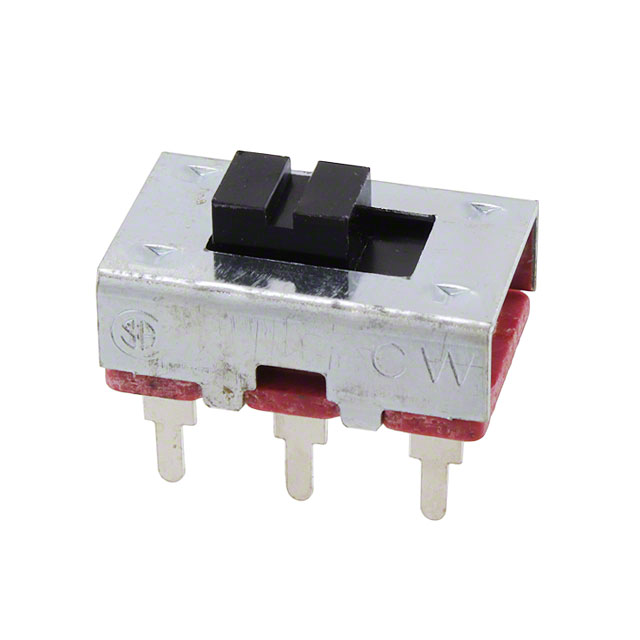

 CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 3.89 mm | Copper | 125 V | On-On (Line Voltage Selector) | PC Pin | Silver | 13 A 500 mA | Not Specified | 125 VDC | DPDT | Through Hole | -10 °C | 104 °C | Screwdriver Slot | 3.18 mm | No Marking |
CW Industries | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 4.01 mm | Copper | 125 V | On-On | PC Pin | Silver | 13 A 500 mA | Not Specified | 125 VDC | DPDT | Panel Mount | -10 °C | 104 °C | Standard | 8.74 mm |
