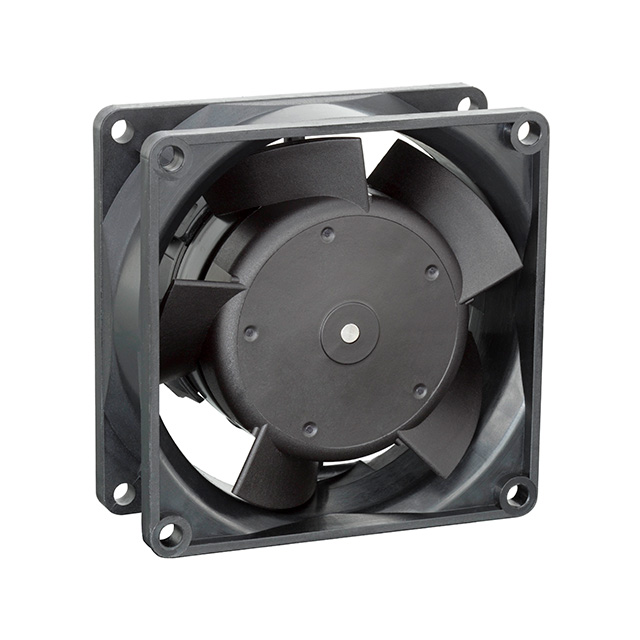

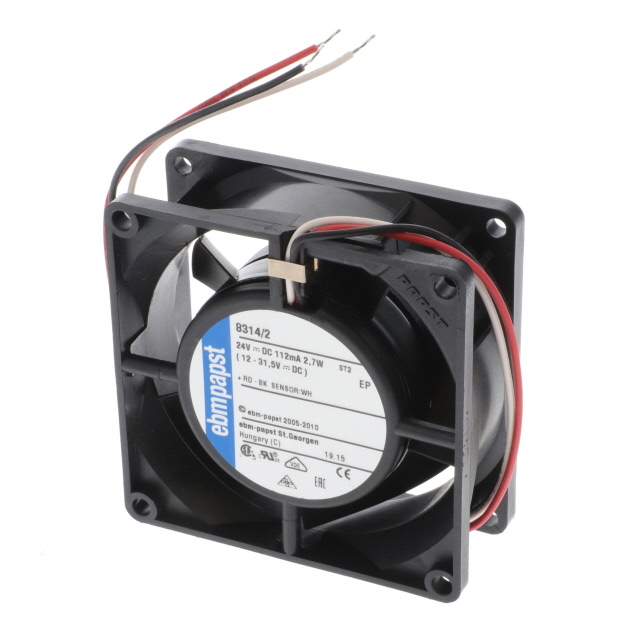

8314 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL 80X32MM 24VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Material - Blade | Lifetime @ Temp. | Voltage - Rated | Width [y] | Approval Agency | Noise | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Weight [custom] | Weight [custom] | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Termination | Fan Type | Features | Power (Watts) | Current Rating (Amps) | Operating Temperature | Static Pressure | Static Pressure | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 28 V | 12 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | 24 VDC | 32 mm | CE CSA UL VDE | 36 dB | 3300 RPM | -4 °F | 167 °F | 0.896 m³/min | 32 CFM | 0.375 lb | 170.1 g | 80 mm | 80 mm | Sintec | 2 Wire Leads | Tubeaxial | |||||||
 ebm-papst Inc. | 28 V | 12 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 55000 Hrs | 24 VDC | 32 mm | 48 dB | 5000 RPM | -4 °F | 167 °F | 1.32 m³/min | 47.1 CFM | 80 mm | 80 mm | Ball | 3 Wire Leads | Tubeaxial | Speed Sensor (Tach) | 6 W | ||||||||
 ebm-papst Inc. | 28 V | 12 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | 24 VDC | 32 mm | CE CSA UL VDE | 34 dB(A) | 3000 RPM | -4 °F | 167 °F | 0.792 m³/min | 28.3 CFM | 0.375 lb | 170.1 g | 80 mm | 80 mm | Ball | 2 Wire Leads | Tubeaxial | 2.1 W | ||||||
 ebm-papst Inc. | 31.5 VDC | 12 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | 24 VDC | 32 mm | 36 dB | 3300 RPM | -4 °F | 167 °F | 0.89 m³/min | 31.8 CFM | 80 mm | 80 mm | Ball | 3 Wire Leads | Tubeaxial | Speed Sensor (Tach) | 2.7 W | ||||||||
 ebm-papst Inc. | 28 V | 12 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 24 VDC | 32 mm | CE CSA EAC UL VDE | 48 dB | 5000 RPM | -20 ░C | 65 °C | 1.32 m³/min | 47.1 CFM | 80 mm | 80 mm | Ball | 3 Wire Leads | Tubeaxial | Auto Restart Locked Rotor Protection Speed Sensor (Tach) | 7.2 W | 0.3 A | (-20 ~ 65°C) | 0.554 in H2O | 138 Pa | ||||
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 24 VDC | 32 mm | 0.896 m³/min | 32 CFM | 80 mm | 80 mm | Ball | 2 Wire Leads | Tubeaxial | |||||||||||||||||
ebm-papst Inc. | 28 V | 12 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 24 VDC | 32 mm | UL | 48 dB | 5000 RPM | -4 °F | 167 °F | 1.32 m³/min | 47.1 CFM | 0.375 lb | 170.1 g | 80 mm | 80 mm | Ball | 2 Wire Leads | Tubeaxial | 6 W | IP68 - Dust Tight Waterproof |
