ATS-TEC Series
Manufacturer: Advanced Thermal Solutions Inc.
Beta
⌘K

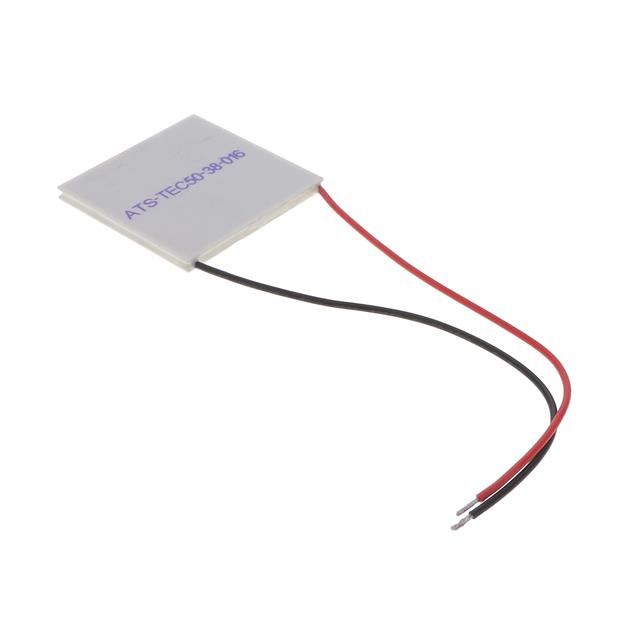

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC MODULE, 50X50X3.8MM LXWXH, 15A, 15.4VMAX, 133.3W QMAX, 100MM WIRE
| Part | Number of Stages | Size / Dimension [x] | Size / Dimension [y] | Features | Voltage - Max [Max] | Delta Tmax @ Th | Resistance | Current - Max [Max] | Height | Type | Qmax @ Th | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Thermal Solutions Inc. | 1 | 50 mm | 50 mm | Lead Wires Sealed - Silicone RTV | 15.4 V | 27 °C 68 °C | 0.75 Ohms | 15 A | 3.8 mm | TEC (Thermoelectric Cooler) | 133.3 W | |
Advanced Thermal Solutions Inc. | 1 | 40 mm | 40 mm | Lead Wires Sealed - Silicone RTV | 24.1 V | 27 °C 68 °C | 6.82 Ohms | 3 A | TEC (Thermoelectric Cooler) | 41.6 W | 4.2 mm | |

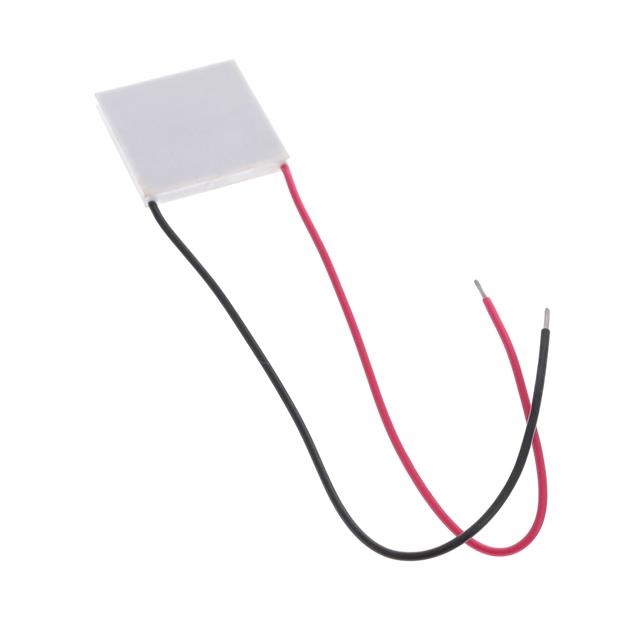

 Advanced Thermal Solutions Inc. | 1 | 30 mm | 30 mm | Lead Wires Sealed - Silicone RTV | 15.4 V | 27 °C 68 °C | 3.42 Ohms | 3 A | TEC (Thermoelectric Cooler) | 26.7 W | 3.6 mm | |

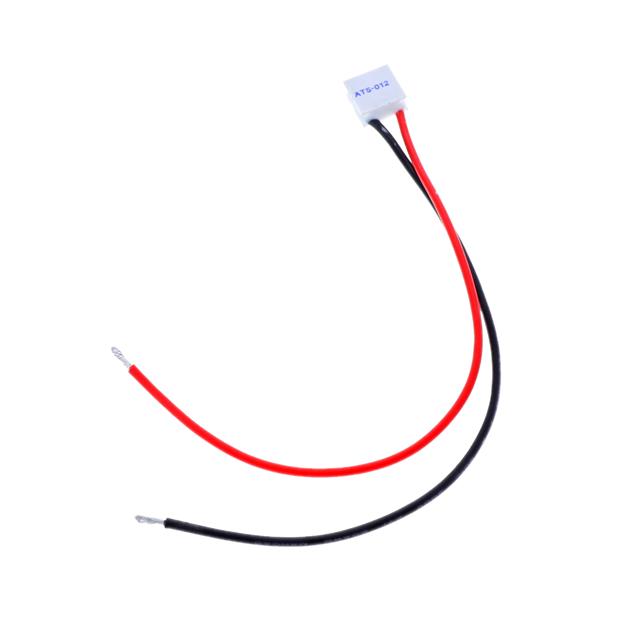

 Advanced Thermal Solutions Inc. | 1 | 10 mm | 10 mm | Lead Wires Sealed - Silicone RTV | 0.8 V | 27 °C 68 °C | 160 mOhms | 4 A | TEC (Thermoelectric Cooler) | 2 W | 4.7 mm | |

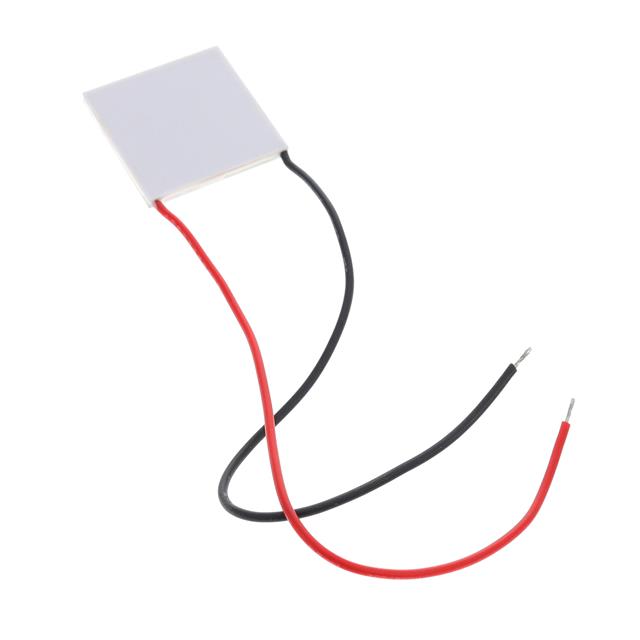

Advanced Thermal Solutions Inc. | 1 | 40 mm | 40 mm | Lead Wires Sealed - Silicone RTV | 24.1 V | 27 °C 68 °C | 2.35 Ohms | 8 A | TEC (Thermoelectric Cooler) | 111.5 W | 3.5 mm | |
Advanced Thermal Solutions Inc. | 1 | 30 mm | 30 mm | Lead Wires Sealed - Silicone RTV | 15.4 V | 27 °C 68 °C | 3.08 Ohms | 4 A | TEC (Thermoelectric Cooler) | 35.6 W | 3.5 mm | |

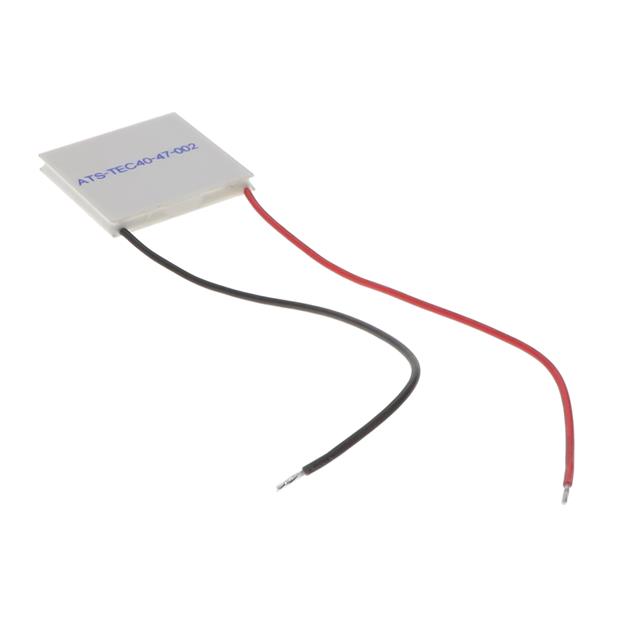

Advanced Thermal Solutions Inc. | 1 | 40 mm | 40 mm | Lead Wires Sealed - Silicone RTV | 15.4 V | 27 °C 68 °C | 3.02 Ohms | 4 A | TEC (Thermoelectric Cooler) | 36.8 W | 4.7 mm | |

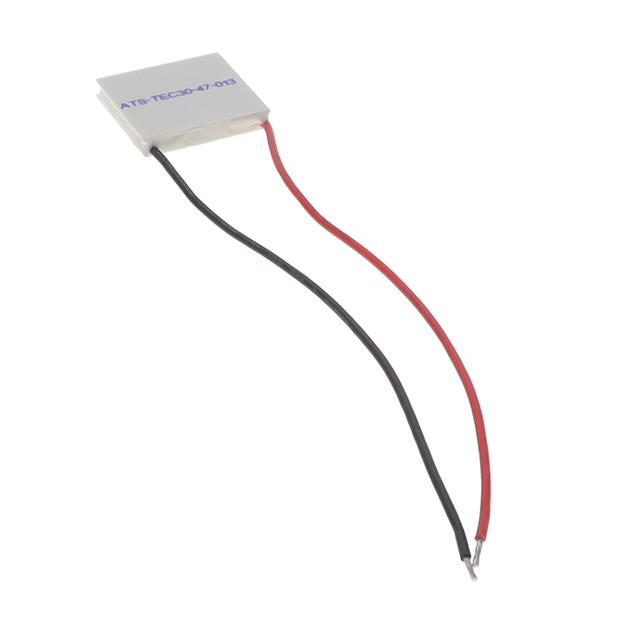

 Advanced Thermal Solutions Inc. | 1 | 30 mm | 30 mm | Lead Wires Sealed - Silicone RTV | 8.5 V | 27 °C 68 °C | 1.73 Ohms | 4 A | TEC (Thermoelectric Cooler) | 21 W | 4.7 mm | |

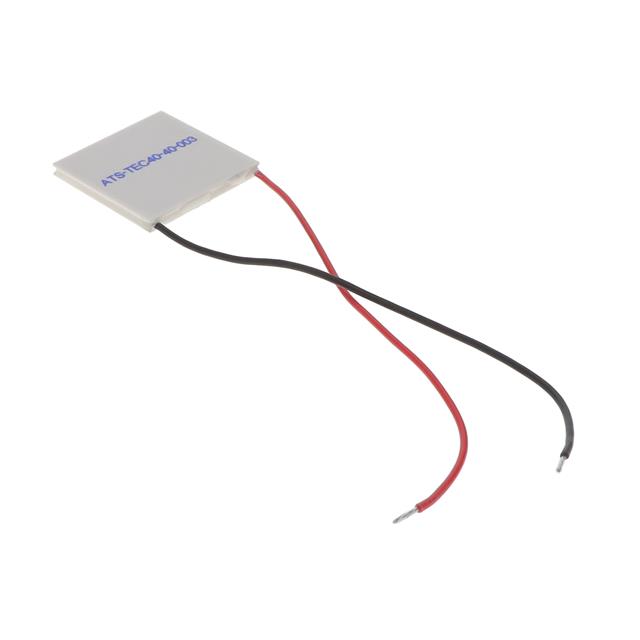

Advanced Thermal Solutions Inc. | 1 | 40 mm | 40 mm | Lead Wires Sealed - Silicone RTV | 15.4 V | 27 °C 68 °C | 2.51 Ohms | 5 A | TEC (Thermoelectric Cooler) | 4 mm | ||

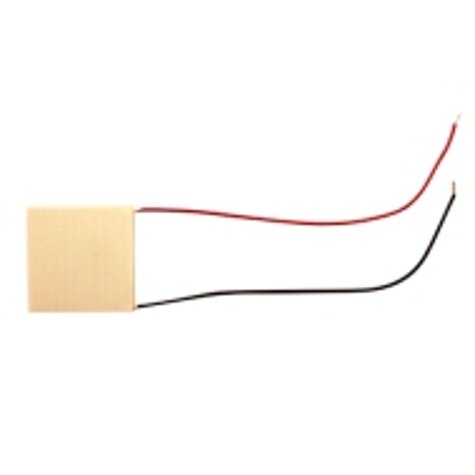

Advanced Thermal Solutions Inc. | 1 | 50 mm | 50 mm | Lead Wires Sealed - Silicone RTV | 29.4 V | 27 °C 68 °C | 3.36 Ohms | 7 A | 3.8 mm | TEC (Thermoelectric Cooler) | 118.5 W |
