86130642 Series

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Material Flammability Rating	Contact Shape	Style	Insulation Color	Contact Finish - Mating	Voltage Rating	Fastening Type	Shrouding	Mounting Type	Number of Positions Loaded	Number of Rows	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish - Post	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Mating	Contact Length - Mating [x]	Termination

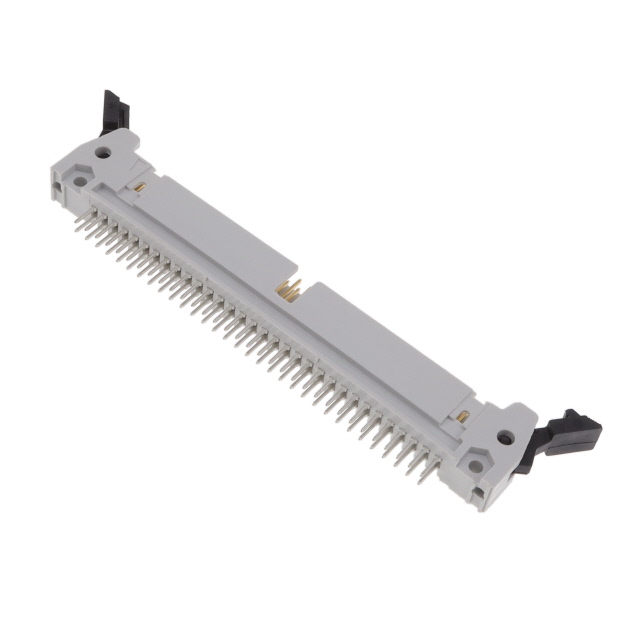

Amphenol ICC (FCI) 86130642114345E1LF	UL94 V-0	Circular	Board to Cable/Wire	Gray	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	Through Hole	All	2	Keying Slot	-55 °C	125 °C	64	Male Pin	0.713 in	18.1 mm	0.693 in	17.6 mm	4.35 mm	0.171 in	Copper Alloy	Tin	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	Solder
Amphenol ICC (FCI) 86130642114365E1LF	UL94 V-0	Circular	Board to Cable/Wire	Gray	Gold or Gold-Palladium	250 VDC	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	Through Hole	All	2	Keying Slot	-55 °C	125 °C	64	Male Pin	0.713 in	18.1 mm	0.693 in	17.6 mm	4.35 mm	0.171 in	Copper Alloy	Tin	Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	Solder
