1986716 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN TERMINAL BLOCK F 2 POS 3.5MM PUSH-IN SPRING ST CABLE MOUNT 2A

Part	Pitch [x]	Pitch [x]	Mounting Type	Plug Wire Entry	Insulation Height	Insulation Height	Housing Material	Features	Wire Strip Length [Min]	Wire Strip Length [Max]	Contact Material	Voltage - UL	Current - UL	Material Flammability Rating	Number of Positions	Positions Per Level	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Type	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 1986716-2	3.5 mm	0.138 in	Free Hanging (In-Line)	90 °	0.492 in	12.5 mm	Polyamide (PA) Nylon	Push Button Actuated Side Stacking	8.5 mm	10 mm	Stainless Steel	150 V	2 A	UL94 V-0	2	2	16 AWG	20 AWG	Push-In Spring Screwless - Leg Spring	Plug for Unshrouded Header	1	-40 °C	110 °C	0.5 mm²	1.3 mm²	Tin	Green

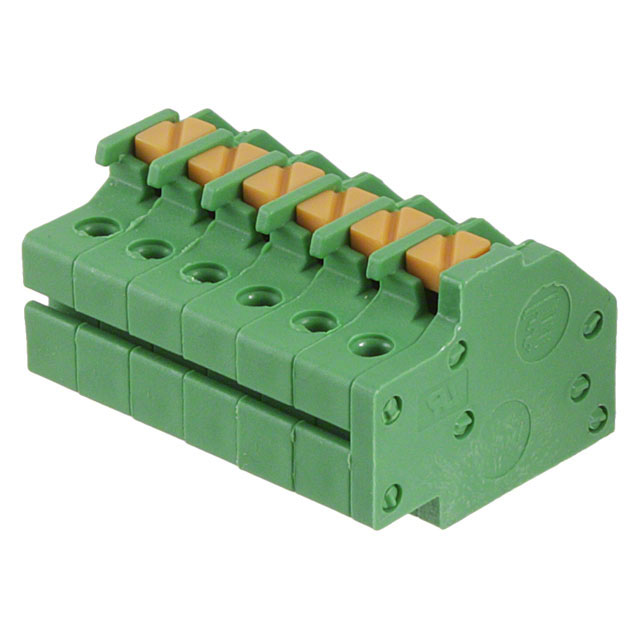

TE Connectivity Raychem Cable Protection 1986716-6	3.5 mm	0.138 in	Free Hanging (In-Line)	90 °	0.492 in	12.5 mm	Polyamide (PA) Nylon	Push Button Actuated Side Stacking	8.5 mm	10 mm	Stainless Steel	150 V	2 A	UL94 V-0	6	6	16 AWG	20 AWG	Push-In Spring Screwless - Leg Spring	Plug for Unshrouded Header	1	-40 °C	110 °C			Tin	Green	1.3 mm˛	0.5 mm˛
TE Connectivity Raychem Cable Protection 1986716-8	3.5 mm	0.138 in	Free Hanging (In-Line)	90 °	0.492 in	12.5 mm	Polyamide (PA) Nylon	Push Button Actuated Side Stacking	8.5 mm	10 mm	Stainless Steel	150 V	2 A	UL94 V-0	8	8	16 AWG	20 AWG	Push-In Spring Screwless - Leg Spring	Plug for Unshrouded Header	1	-40 °C	110 °C	0.5 mm²	1.3 mm²	Tin	Green
TE Connectivity Raychem Cable Protection 1986716-5	3.5 mm	0.138 in	Free Hanging (In-Line)	90 °	0.492 in	12.5 mm	Polyamide (PA) Nylon	Push Button Actuated Side Stacking	8.5 mm	10 mm	Stainless Steel	150 V	2 A	UL94 V-0		5	16 AWG	20 AWG	Push-In Spring Screwless - Leg Spring	Plug for Unshrouded Header	1	-40 °C	110 °C	0.5 mm²	1.3 mm²	Tin	Green
