9610-9213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

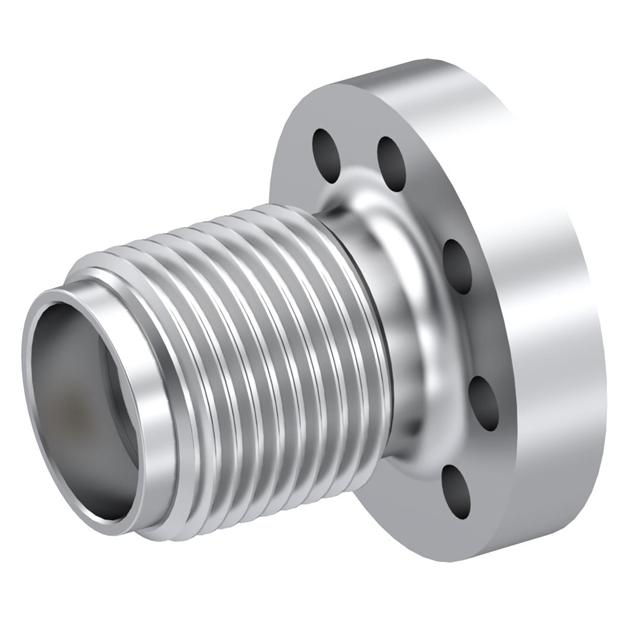

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Connector Style | Contact Termination | Center Contact Material | Housing Color | Impedance | Connector Type | Fastening Type | Mounting Type | Number of Ports | Frequency - Max [Max] | Mounting Feature | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Gold | 500 | SMA | Solder | Beryllium Copper | Silver | 50 Ohms | Female Socket Jack | Threaded | Panel Mount | 1 | 18 GHz | Flange | Screw | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Gold | 500 | SMA | Solder | Beryllium Copper | Silver | 50 Ohms | Female Socket Jack | Threaded | Surface Mount | 1 | 18 GHz | Flange | Solder | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Gold | 500 | SMA | Solder | Beryllium Copper | Silver | 50 Ohms | Female Socket Jack | Threaded | Surface Mount | 1 | 12.4 GHz | Flange | Solder | 188 316 RG-174 |
