CC3200MOD Series

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® and Internet-of-Things wireless module

Catalog

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® and Internet-of-Things wireless module

Part	RF Family/Standard	Voltage - Supply [Min]	Voltage - Supply [Max]	Protocol	Data Rate (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Serial Interfaces	Mounting Type	GPIO	Current - Receiving	Sensitivity	Package / Case	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Power - Output	Current - Transmitting	Type	For Use With/Related Products	Supplied Contents	Modulation	Memory Size [custom]	Memory Size [custom]	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Memory Size

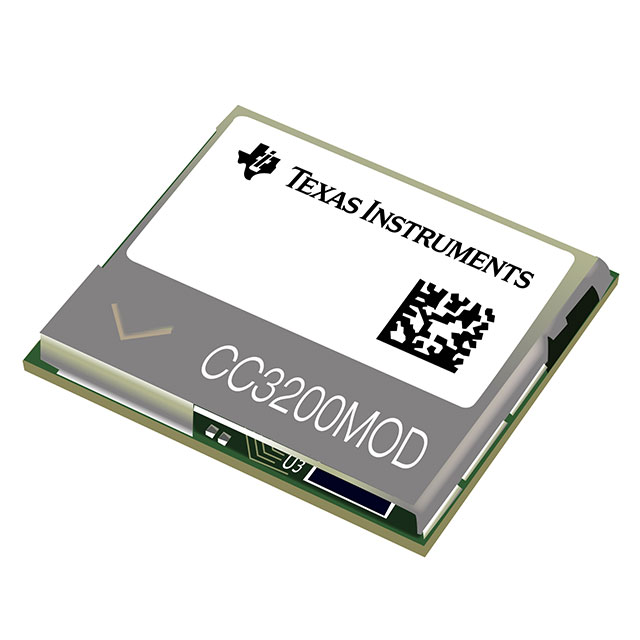

Texas Instruments CC3200MODR1M2AMOBT	WiFi	2.3 V	3.6 V	802.11b/g/n	54 Mbps	-20 C	70 °C	2.4 GHz	I2C SPI UART	Surface Mount	25	59 mA	-94.7 dBm	63-SMD Module	63-QFM	17.5	20.5	17 dBm	278 mA	TxRx + MCU
Texas Instruments CC3200AUDBOOST								2.4 GHz												Transceiver	CC3200	Board(s)
Texas Instruments CC3200MODR1M2AMOBR	WiFi	2.3 V	3.6 V	802.11b/g/n	54 Mbps	-20 C	70 °C	2.4 GHz	I2C SPI UART	Surface Mount	25	59 mA	-94.7 dBm	63-SMD Module	63-QFM	17.5	20.5	17 dBm	278 mA	TxRx + MCU

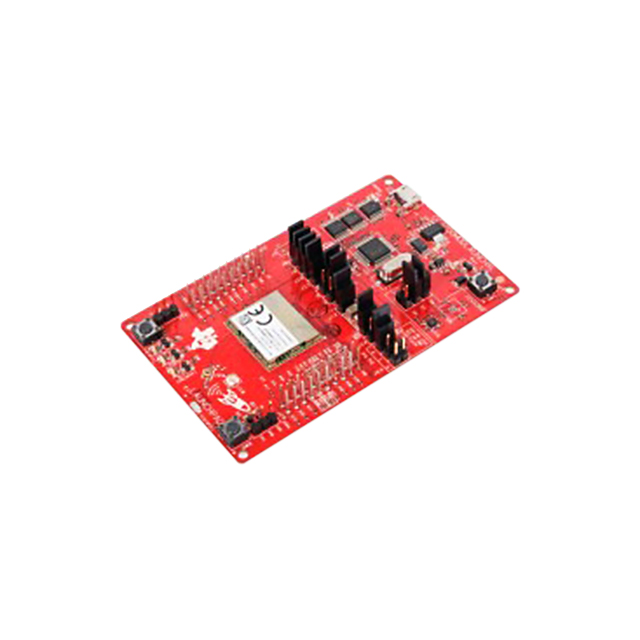

Texas Instruments CC3200MODLAUNCHXL								2.4 GHz												Transceiver	CC3200	Board(s)

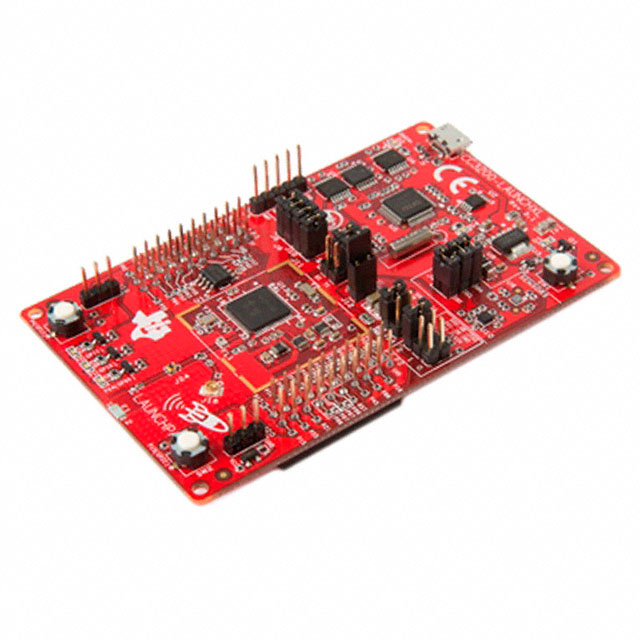

Texas Instruments CC3200-LAUNCHXL								2.4 GHz												Transceiver	CC3200	Board(s) Cable(s)
Texas Instruments CC3200R1M2RGC	WiFi	2.1 V	3.6 V	802.11b/g/n	54 Mbps	-40 °C	85 °C	2.4 GHz	I2C I2S JTAG SPI UART	Surface Mount	27		-95.7 dBm	64-VFQFN Exposed Pad	64-VQFN (9x9)			18.3 dBm		TxRx + MCU			DSSS OFDM	256 kB	64 kB	53 mA	59 mA	53 mA	59 mA

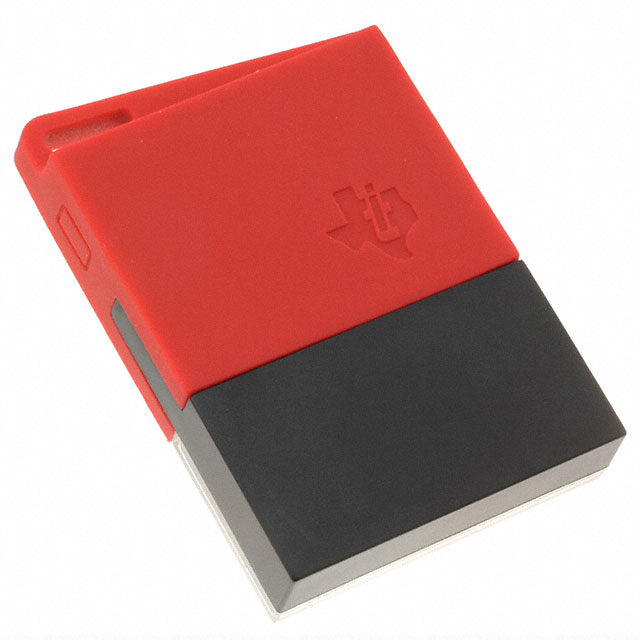

Texas Instruments CC3200STK-WIFIMK																				Transceiver	CC3200	Board(s)
Texas Instruments CC3200R1M2RGCR	WiFi	2.1 V	3.6 V	802.11b/g/n	54 Mbps	-40 °C	85 °C	2.4 GHz	I2C I2S JTAG SPI UART	Surface Mount	27		-95.7 dBm	64-VFQFN Exposed Pad	64-VQFN (9x9)			18.3 dBm		TxRx + MCU			DSSS OFDM	256 kB	64 kB	53 mA	59 mA	53 mA	59 mA
Texas Instruments CC3200R1M1RGCR	WiFi	2.1 V	3.6 V	802.11b/g/n	54 Mbps	-40 °C	85 °C	2.4 GHz	I2C I2S JTAG SPI UART	Surface Mount	27		-95.7 dBm	64-VFQFN Exposed Pad	64-VQFN (9x9)			18.3 dBm		TxRx + MCU			DSSS OFDM			53 mA	59 mA	53 mA	59 mA	64 kB 128 kB

Catalog

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® and Internet-of-Things wireless module

Key Features

• CC3200MOD is a Wi-Fi module consisting of CC3200R1M2RGC single-chip wireless microcontroller (MCU)Fully integrated module includes all required clocks, SPI Flash, and passivesModular FCC, IC, TELEC, and CE certifications save customer effort, time, and moneyWi-Fi Alliance members can request certificate transfer of Wi-Fi CERTIFIED™ modules1.27-mm pitch QFM package for easy assembly and low-cost PCB designApplications MCU subsystem:Arm®Cortex®-M4 core at 80 MHzEmbedded memory:Integrated serial FlashRAM (up to 256KB)Peripheral drivers in ROMHardware crypto engine for advanced hardware security including:AES, DES, and 3DESSHA and MD5CRC and Checksum8-Bit parallel cameraOne Multichannel Audio Serial Port (McASP) interface with support for I2S formatOne SD (MMC) interface32-channel Micro Direct Memory Access (µDMA)Two Universal Asynchronous Receivers and Transmitters (UARTs)Two Serial Peripheral Interfaces (SPIs)One Inter-integrated Circuit (I2C)Four General-Purpose Timers (GPTs)16-Bit Pulse-Width Modulation (PWM) modeOne Watchdog Timer Module4-channel, 12-bit Analog-to-Digital Converters (ADCs)Up to 25 individually programmable GPIO pinsWi-Fi network processor subsystem:802.11 b/g/n radio, baseband, and medium access controlTCP/IP StackEight simultaneous TCP, UDP, or RAW socketsTwo simultaneous TLS v1.2 or SSL 3.0 socketsARP, ICMP, DHCP, DNS, and mDNS supportHTTP server with built-in programmable HTML page for over-the-network device configurationPowerful crypto engine for fast, secured WLAN connections with 256-bit encryptionStation, Access Point, and Wi-Fi Direct ModesWPA2 personal and enterprise securitySimpleLink™ connection manager for managing Wi-Fi security statesTX power:17.0 dBm at 1 DSSS17.25 dBm at 11 CCK13.5 dBm at 54 OFDMRX sensitivity:–94.7 dBm at 1 DSSS–87.0 dBm at 11 CCK–73.0 dBm at 54 OFDMApplication Throughput:UDP: 16 MbpsTCP: 13 MbpsPower-management subsystem:Integrated DC/DC converter with a wide-supply voltage:VBAT: 2.3 to 3.6 VLow-power consumption At 3.6 V:Hibernate with Real-Time Clock (RTC): 7 µALow-Power Deep Sleep: <275 µARX Traffic: 59 mA at 54 OFDMTX Traffic: 229 mA at 54 OFDMPackage and operating conditions:1.27-mm pitch, 63-Pin, 20.5-mm × 17.5-mm QFM package for easy assembly and low-cost PCB designOperating temperature range: –20°C to +70°CAdditional integrated components:40.0-MHz crystal32.768-kHz crystal (RTC)8-Mbit SPI Serial FlashRF filter and passive componentsQFM package:1.27-mm pitch, 63-pin, 20.5-mm × 17.5-mm QFM package for easy assembly and low-cost PCB designOperating temperature:Ambient temperature range: –40°C to +85°CModule supportsSimpleLink Developer’s EcosystemCC3200MOD is a Wi-Fi module consisting of CC3200R1M2RGC single-chip wireless microcontroller (MCU)Fully integrated module includes all required clocks, SPI Flash, and passivesModular FCC, IC, TELEC, and CE certifications save customer effort, time, and moneyWi-Fi Alliance members can request certificate transfer of Wi-Fi CERTIFIED™ modules1.27-mm pitch QFM package for easy assembly and low-cost PCB designApplications MCU subsystem:Arm®Cortex®-M4 core at 80 MHzEmbedded memory:Integrated serial FlashRAM (up to 256KB)Peripheral drivers in ROMHardware crypto engine for advanced hardware security including:AES, DES, and 3DESSHA and MD5CRC and Checksum8-Bit parallel cameraOne Multichannel Audio Serial Port (McASP) interface with support for I2S formatOne SD (MMC) interface32-channel Micro Direct Memory Access (µDMA)Two Universal Asynchronous Receivers and Transmitters (UARTs)Two Serial Peripheral Interfaces (SPIs)One Inter-integrated Circuit (I2C)Four General-Purpose Timers (GPTs)16-Bit Pulse-Width Modulation (PWM) modeOne Watchdog Timer Module4-channel, 12-bit Analog-to-Digital Converters (ADCs)Up to 25 individually programmable GPIO pinsWi-Fi network processor subsystem:802.11 b/g/n radio, baseband, and medium access controlTCP/IP StackEight simultaneous TCP, UDP, or RAW socketsTwo simultaneous TLS v1.2 or SSL 3.0 socketsARP, ICMP, DHCP, DNS, and mDNS supportHTTP server with built-in programmable HTML page for over-the-network device configurationPowerful crypto engine for fast, secured WLAN connections with 256-bit encryptionStation, Access Point, and Wi-Fi Direct ModesWPA2 personal and enterprise securitySimpleLink™ connection manager for managing Wi-Fi security statesTX power:17.0 dBm at 1 DSSS17.25 dBm at 11 CCK13.5 dBm at 54 OFDMRX sensitivity:–94.7 dBm at 1 DSSS–87.0 dBm at 11 CCK–73.0 dBm at 54 OFDMApplication Throughput:UDP: 16 MbpsTCP: 13 MbpsPower-management subsystem:Integrated DC/DC converter with a wide-supply voltage:VBAT: 2.3 to 3.6 VLow-power consumption At 3.6 V:Hibernate with Real-Time Clock (RTC): 7 µALow-Power Deep Sleep: <275 µARX Traffic: 59 mA at 54 OFDMTX Traffic: 229 mA at 54 OFDMPackage and operating conditions:1.27-mm pitch, 63-Pin, 20.5-mm × 17.5-mm QFM package for easy assembly and low-cost PCB designOperating temperature range: –20°C to +70°CAdditional integrated components:40.0-MHz crystal32.768-kHz crystal (RTC)8-Mbit SPI Serial FlashRF filter and passive componentsQFM package:1.27-mm pitch, 63-pin, 20.5-mm × 17.5-mm QFM package for easy assembly and low-cost PCB designOperating temperature:Ambient temperature range: –40°C to +85°CModule supportsSimpleLink Developer’s Ecosystem

Description

Start your design with the industry’s first programmable FCC, IC, CE, and Wi-Fi CERTIFIED™ wireless MCU module with built-in Wi-Fi®connectivity. Created for the IoT, the SimpleLink™ CC3200MOD is a wireless MCU module that integrates an Arm®Cortex®-M4 MCU, allowing customers to develop an entire application with one device. With on-chip Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is required for faster development. The CC3200MOD integrates all required system-level hardware components including clocks, SPI Flash, RF switch, and passives into an QFM package for easy assembly and low-cost PCB design. The CC3200MOD is provided as a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the TI E2E™ support community. The applications MCU subsystem contains an industry-standard Arm®Cortex®-M4 core running at 80 MHz. The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD/MMC, UART, SPI, I2C, and four-channel ADC. The CC3200 family includes flexible embedded RAM for code and data; ROM with external serial Flash bootloader and peripheral drivers; and SPI Flash for Wi-Fi network processor service packs, Wi-Fi certificates, and credentials. The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a chip™ and contains an additional dedicated Arm®MCU that completely off-loads the applications MCU. This subsystem includes an 802.11 b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The CC3200MOD supports station, access point, and Wi-Fi Direct modes. The device also supports WPA2 personal and enterprise security and WPS 2.0. The Wi-Fi Internet-on-a-chip includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The power-management subsystem includes integrated DC/DC converters supporting a wide range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate with RTC mode requiring less than 7 µA of current. Start your design with the industry’s first programmable FCC, IC, CE, and Wi-Fi CERTIFIED™ wireless MCU module with built-in Wi-Fi®connectivity. Created for the IoT, the SimpleLink™ CC3200MOD is a wireless MCU module that integrates an Arm®Cortex®-M4 MCU, allowing customers to develop an entire application with one device. With on-chip Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is required for faster development. The CC3200MOD integrates all required system-level hardware components including clocks, SPI Flash, RF switch, and passives into an QFM package for easy assembly and low-cost PCB design. The CC3200MOD is provided as a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the TI E2E™ support community. The applications MCU subsystem contains an industry-standard Arm®Cortex®-M4 core running at 80 MHz. The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD/MMC, UART, SPI, I2C, and four-channel ADC. The CC3200 family includes flexible embedded RAM for code and data; ROM with external serial Flash bootloader and peripheral drivers; and SPI Flash for Wi-Fi network processor service packs, Wi-Fi certificates, and credentials. The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a chip™ and contains an additional dedicated Arm®MCU that completely off-loads the applications MCU. This subsystem includes an 802.11 b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The CC3200MOD supports station, access point, and Wi-Fi Direct modes. The device also supports WPA2 personal and enterprise security and WPS 2.0. The Wi-Fi Internet-on-a-chip includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The power-management subsystem includes integrated DC/DC converters supporting a wide range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate with RTC mode requiring less than 7 µA of current.
