119S601 Series
Manufacturer: Rosenberger
Beta
⌘K

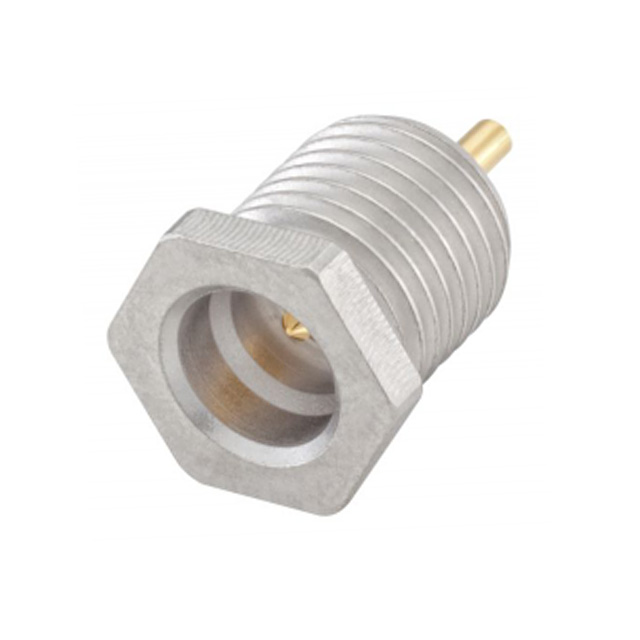

CONN PSMP PLUG STR 50OHM SOLDER
| Part | Body Finish | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Material | Connector Type | Features | Mounting Type | Center Contact Material | Housing Color | Fastening Type | Impedance | Connector Style | Shield Termination | Number of Ports | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | White Bronze | 480 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Plug Male Pin | Limited Detent | Panel Mount Threaded | Brass | Silver | Snap-On | 50 Ohms | PSMP | Solder | 1 | 10 GHz | Solder |
