tl3301 Series
Manufacturer: E-Switch
Beta
⌘K
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.57N
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Actuator Height off PCB, Vertical | Mounting Type | Actuator Orientation | Circuit | Outline [x] | Outline [y] | Contact Rating @ Voltage | Termination Style | Switch Function | Illumination | Actuator Type | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

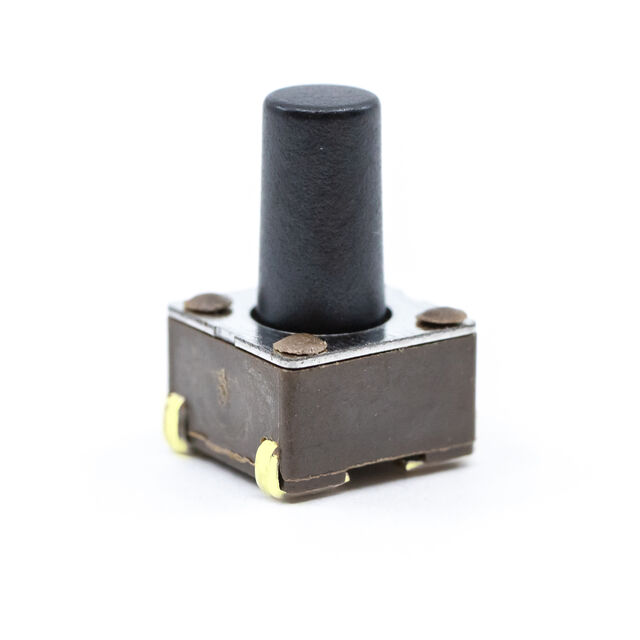

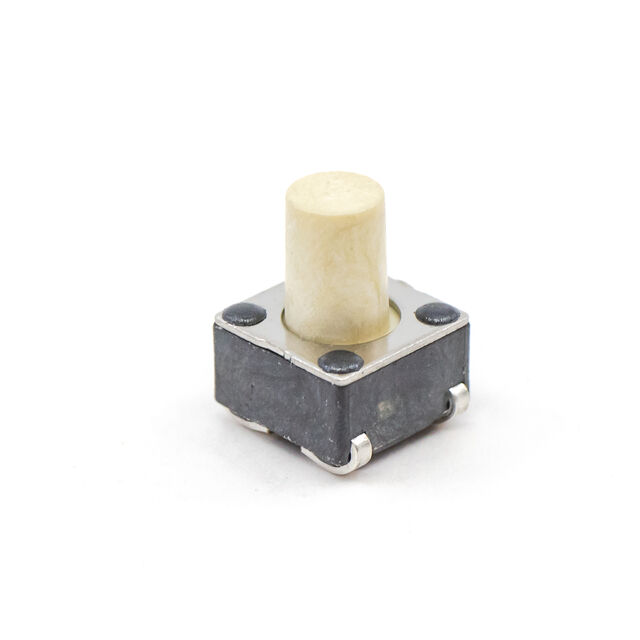

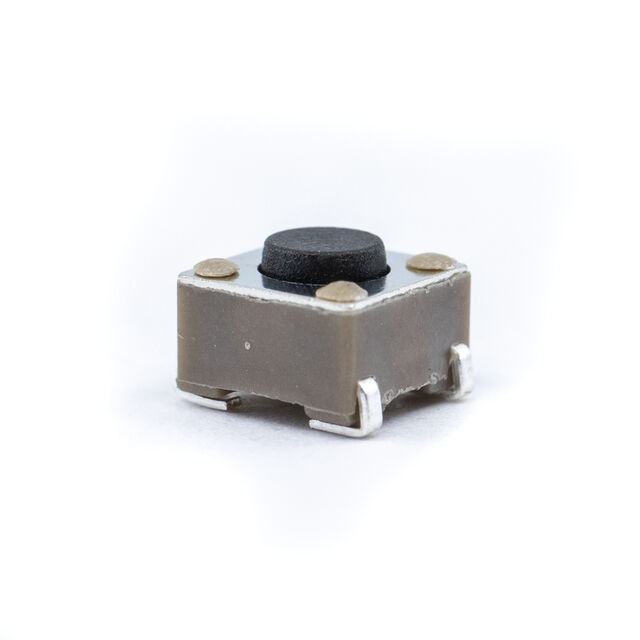

 E-Switch | 85 °C | -40 C | 160 gf | 8 mm | Surface Mount | Top Actuated | SPST-NO | 6 mm | 6 mm | 0.05 A 12 VDC | J Lead | Off-Mom | Non-Illuminated | Standard | |

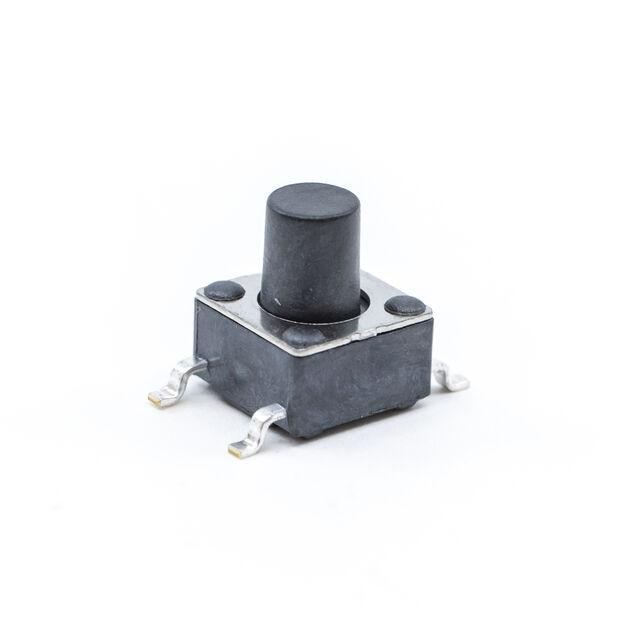

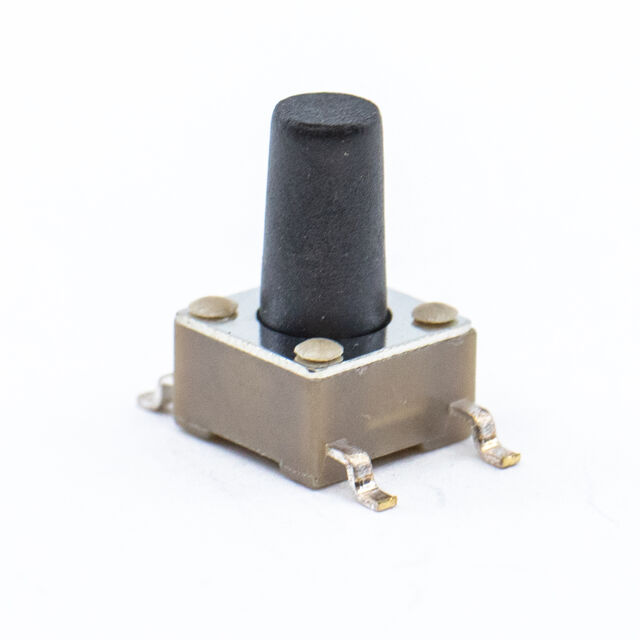

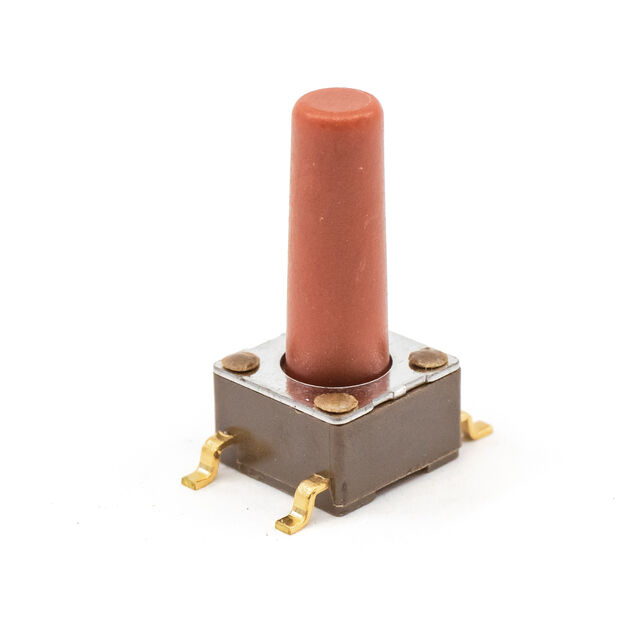

 E-Switch | 85 °C | -40 C | 160 gf | Surface Mount | Top Actuated | SPST-NO | 6 mm | 6 mm | 0.05 A 12 VDC | Gull Wing | Off-Mom | Non-Illuminated | Standard | 2.4 mm |
