PCF8566 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC DRVR 7 SEGMNT 12 DIGIT 40DIP
| Part | Interface | Mounting Type | Configuration | Channel Count | Display Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Digits or Characters (Digits) | Digits or Characters (Elements) | Digits or Characters (Characters) | Package Length | Package Width | Current - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | I2C | Through Hole | 14 Segment (24 Segment) 7 Segment DP Segment + DP | 7 | LCD | 6 V | 2.5 V | 40-DIP | -40 °C | 85 °C | 12 Digits | 96 Elements | 6 Characters | 0.6 in | 15.24 mm | 30 µA |

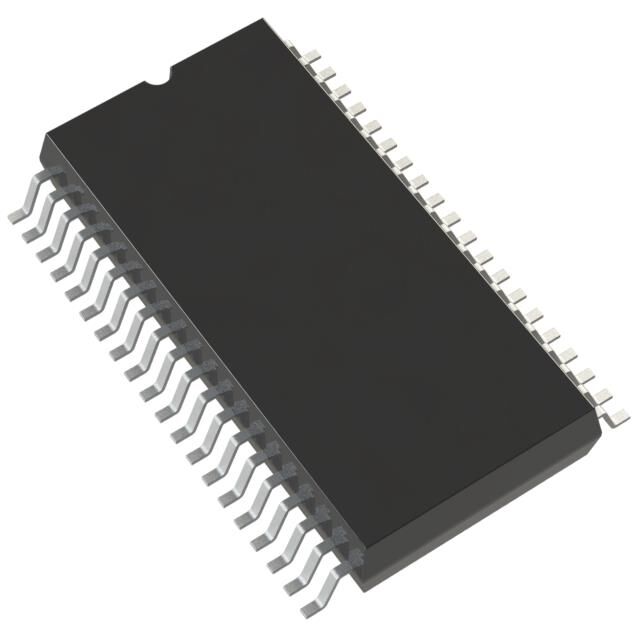

 NXP USA Inc. | I2C | Surface Mount | 14 Segment (24 Segment) 7 Segment DP Segment + DP | 7 | LCD | 6 V | 2.5 V | 40-BSOP 40-VSO | -40 °C | 85 °C | 12 Digits | 96 Elements | 6 Characters | 0.295 in | 7.5 mm | 30 µA |
NXP USA Inc. | I2C | Surface Mount | 14 Segment (24 Segment) 7 Segment DP Segment + DP | 7 | LCD | 6 V | 2.5 V | 40-BSOP 40-VSO | -40 °C | 85 °C | 12 Digits | 96 Elements | 6 Characters | 0.295 in | 7.5 mm | 30 µA |
