892-036 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 36POS 0.100

...

Part	Material - Insulation	Termination Rows	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows	Number of Positions/Bay/Row	Termination	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Type	Gender	Mounting Type	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Termination Rows [custom]	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Features

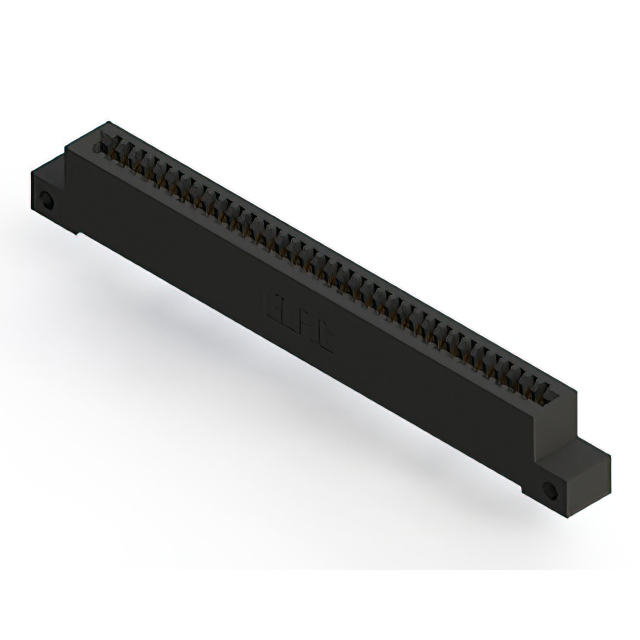

EDAC Inc. 892-036-521-112	Polyphenylene Sulfide (PPS)	1	Black	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	36	Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Single	125 °C	-40 C	0.1 "	2.54 mm

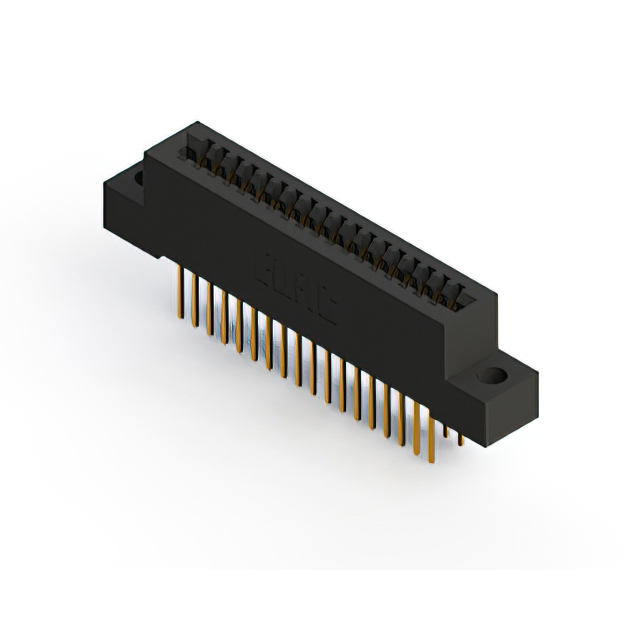

EDAC Inc. 892-036-540-204	Polyphenylene Sulfide (PPS)		Black	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm			Wire Wrap	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Dual	125 °C	-40 C	0.1 "	2.54 mm	2	18	2
EDAC Inc. 892-036-523-104	Polyphenylene Sulfide (PPS)	1	Black	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	1	36	Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Single	125 °C	-40 C	0.1 "	2.54 mm

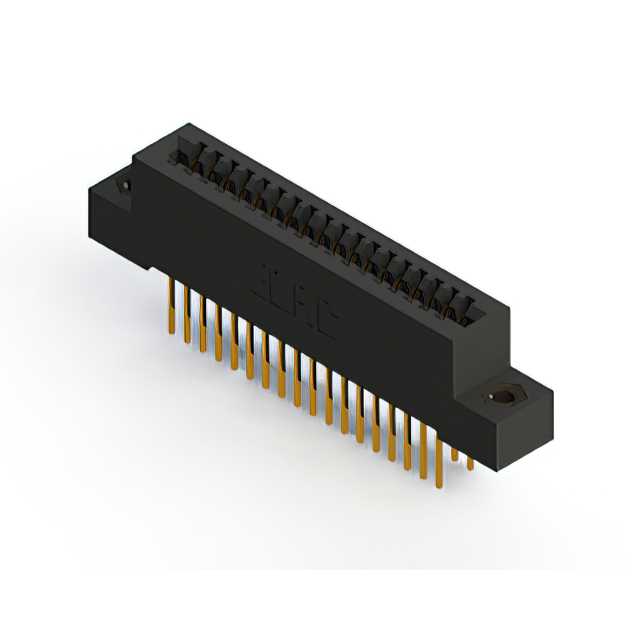

EDAC Inc. 892-036-523-207	Polyphenylene Sulfide (PPS)		Black	Flush Mount M3 Threaded Insert Top Opening					Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Dual	125 °C	-40 C	0.1 "	2.54 mm	2	18	2

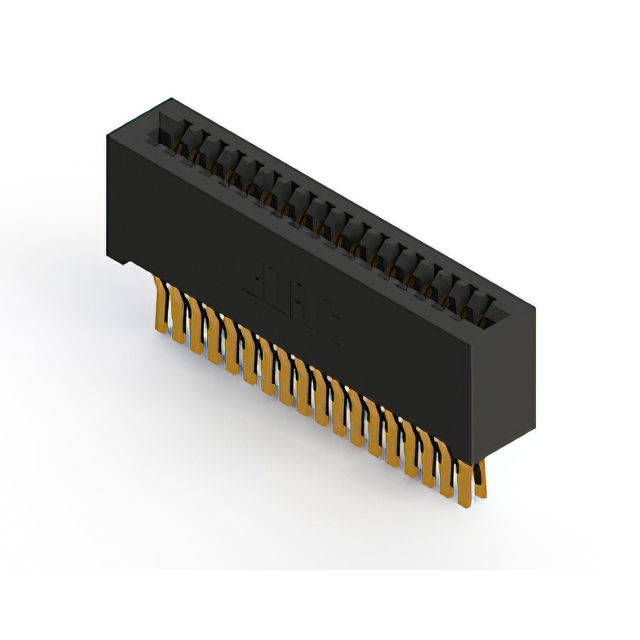

EDAC Inc. 892-036-560-201	Polyphenylene Sulfide (PPS)		Black						Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Female	Board Edge Straddle Mount	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Dual	125 °C	-40 C	0.1 "	2.54 mm	2	18	2	Card Extender
EDAC Inc. 892-036-523-107	Polyphenylene Sulfide (PPS)	1	Black	Flush Mount M3 Threaded Insert Top Opening			1	36	Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Single	125 °C	-40 C	0.1 "	2.54 mm
EDAC Inc. 892-036-520-108	Polyphenylene Sulfide (PPS)	1	Black	4-40 Flush Mount Threaded Insert Top Opening			1	36	Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Single	125 °C	-40 C	0.1 "	2.54 mm
EDAC Inc. 892-036-523-204	Polyphenylene Sulfide (PPS)		Black	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm			Solder	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Dual	125 °C	-40 C	0.1 "	2.54 mm	2	18	2

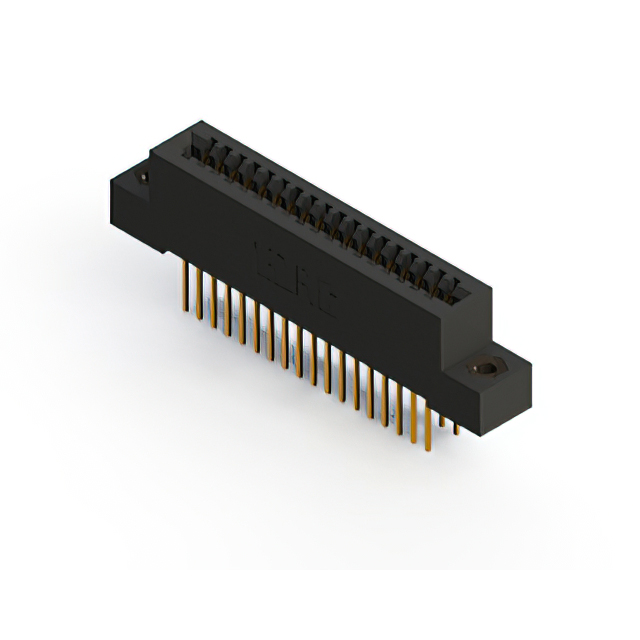

EDAC Inc. 892-036-542-207	Polyphenylene Sulfide (PPS)		Black	Flush Mount M3 Threaded Insert Top Opening					Wire Wrap	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Dual	125 °C	-40 C	0.1 "	2.54 mm	2	18	2
EDAC Inc. 892-036-500-103	Polyphenylene Sulfide (PPS)	1	Black	Floating Bobbin Flush Mount	0.116 "	2.95 mm	1	36	Solder Eyelet(s)	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Single Edge	Female	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	36	Single	125 °C	-40 C	0.1 "	2.54 mm
