9WV0924 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

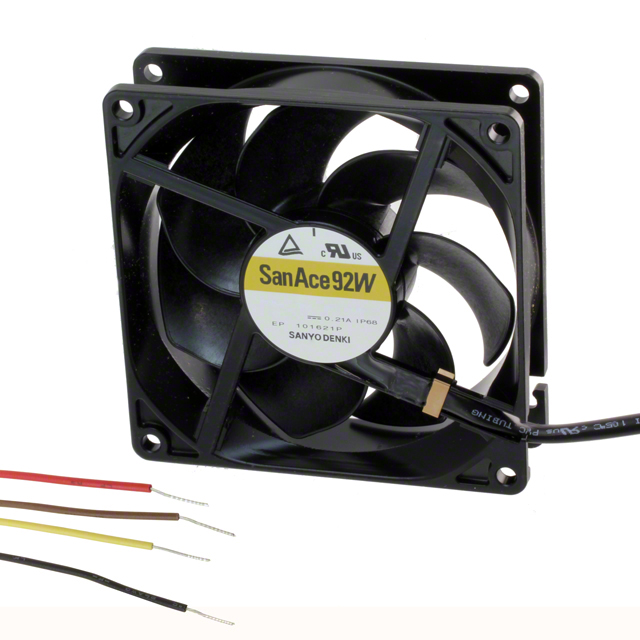

FAN AXIAL 92X38MM 24VDC WIRE
| Part | Air Flow | Air Flow | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Blade | Width [y] | RPM | Voltage - Rated | Bearing Type | Static Pressure | Static Pressure | Power (Watts) | Ingress Protection | Noise | Approval Agency | Termination | Weight [custom] | Weight [custom] | Features | Fan Type | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 178 CFM | 4.98 m³/min | Plastic | 20.4 VDC | 26.4 VDC | 1.6 A | Plastic | 38 mm | 8500 RPM | 24 VDC | Ball | 1.55 in H2O | 385 Pa | 38.4 W | IP68 - Dust Tight Waterproof | 64 dB(A) | CSA TUV UL | 4 Wire Leads | 0.586 lb | 265.81 g | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Tubeaxial | 60 °C | 60 °C | -4 °F | -20 ░C | 92 mm | 92 mm |
