Atp220 Series Series

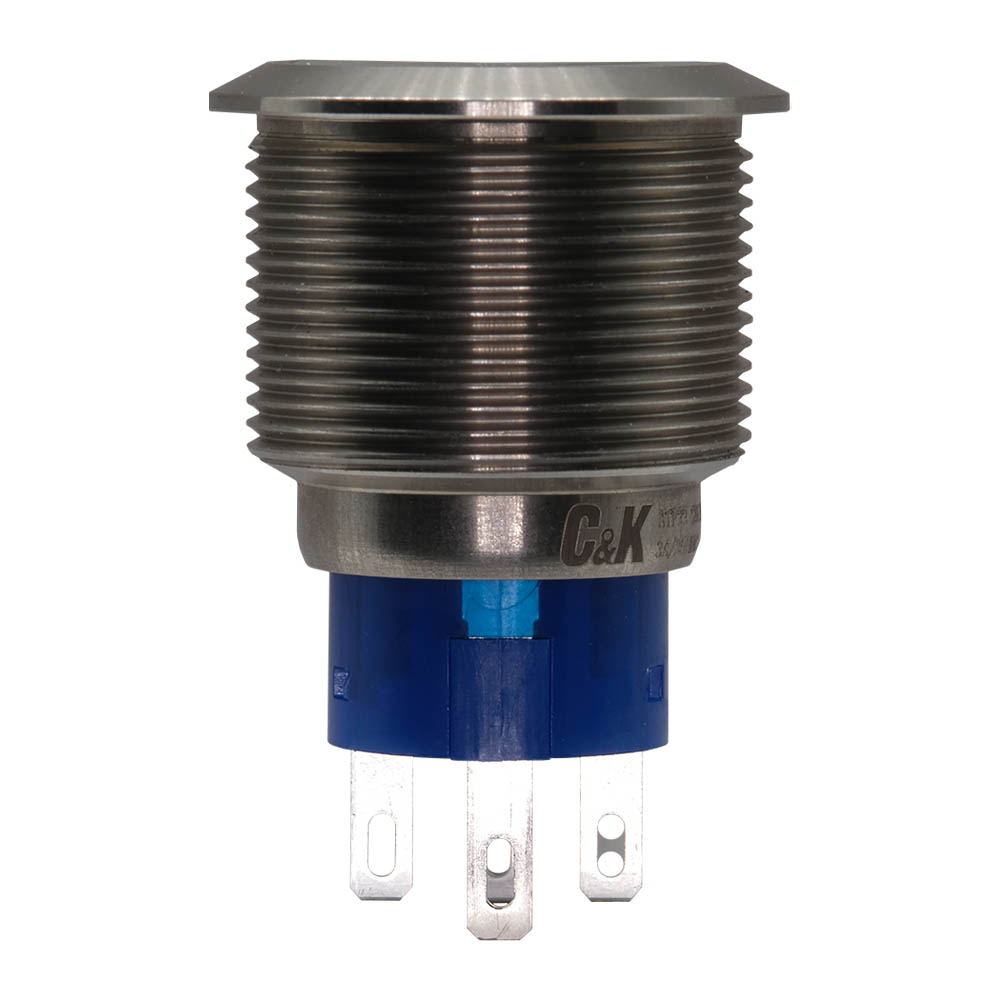

22mm Anti-vandal Sealed Pushbutton Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

22mm Anti-vandal Sealed Pushbutton Switch

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Mounting Type	Illumination Type, Color	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Color - Actuator/Cap	Ingress Protection	Illumination Voltage (Nominal)	Termination Style	Termination Style	Termination Style	Actuator Type	Circuit	Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products ATP22-SL3-312-B0SA-03Q	1000000 Cycles	50000 Cycles	3 A	Panel Mount Front	LED Red	250 V	On-Mom	28 V	Silver	IP67 - Dust Tight Waterproof	12 VDC	0.11 in	Quick Connect Solder	2.8 mm	Button Flush Round	SPDT	Anti-Vandal Illuminated	No Marking	22.2 mm	55 °C	-20 C
Littelfuse/Commercial Vehicle Products ATP22-SL3-724-B0SE-03Q	500000 Cycles	50000 Cycles	3 A	Panel Mount Front	Blue LED	250 V	On-On	28 V	Silver	IP67 - Dust Tight Waterproof	24 V	0.11 in	Quick Connect Solder	2.8 mm	Button Flush Round	SPDT	Anti-Vandal Illuminated	No Marking	22.2 mm	55 °C	-20 C

Catalog

22mm Anti-vandal Sealed Pushbutton Switch

Key Features

• IP67 sealed to endure harsh environments

• IK10 rated impact protection

• Snap-action provide positive feedback

• 1,000,000 life cycle

Description

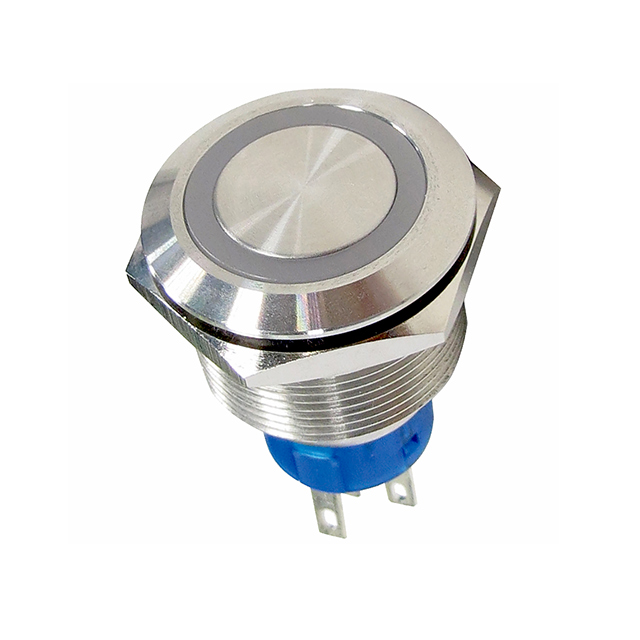

The ATP22 series is an anti-vandal sealed pushbutton switch offers the industry standard ring illuminated pushbutton in 22 mm diameter. The anti-vandal switches use a scratch resistant actuator and housings are made of robust stainless steel particularly suitable for use in equipment subjected to harsh conditions or applications that require protection from vandalism. The 22 mm pushbuttons meet the seal protection and impact resistance ratings of IP67 and IK10 that design to withstand the possible extreme outdoor environmental and may subject to abuse. Also, the ATP22 comes with a variety of LED colors and various of indicators on the actuator that meet your application needs.
