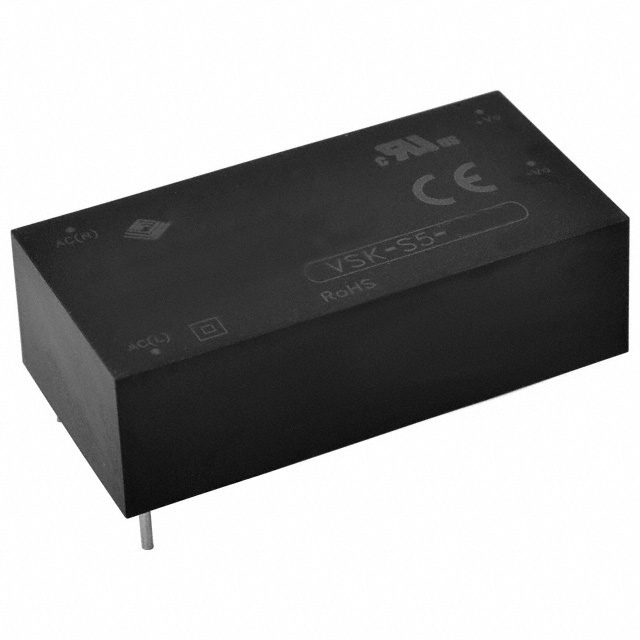

VSK-S5 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 9V 5W

Part	Line Regulation	Applications	Voltage - Output 1	Load Regulation	Number of Outputs	Current - Output (Max) [Max]	Weight [custom]	Weight [custom]	Features	Package / Case	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Power (Watts)	Standard Number	Approval Agency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Voltage - Isolation
CUI Inc. VSK-S5-9UA	0.5 %	ITE (Commercial)	9 V	±1%	1	550 mA	0.077 lb	34.93 g	Universal Input	4-DIP Module	74 %	50.8 mm	2 in	15.7 mm	25.4 mm	0.62 in	1 "	Through Hole	5 W	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL	Enclosed	70 °C	-25 °C
CUI Inc. VSK-S5-24UA	0.5 %	ITE (Commercial)	24 V	±1%	1	230 mA	0.077 lb	34.93 g	Universal Input	4-DIP Module	78 %	50.8 mm	2 in	15.7 mm	25.4 mm	0.62 in	1 "	Through Hole	5 W	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL	Enclosed	70 °C	-25 °C
CUI Inc. VSK-S5-12UA	0.5 %	ITE (Commercial)	12 V	±1%	1	420 mA	0.077 lb	34.93 g	Universal Input	4-DIP Module	76 %	50.8 mm	2 in	15.7 mm	25.4 mm	0.62 in	1 "	Through Hole	5 W	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL	Enclosed	70 °C	-25 °C
CUI Inc. VSK-S5-5UA	0.5 %	ITE (Commercial)	5 V	±1%	1	1 A	0.077 lb	34.93 g	Universal Input	4-DIP Module	72 %	50.8 mm	2 in	15.7 mm	25.4 mm	0.62 in	1 "	Through Hole	5 W	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL	Enclosed	70 °C	-25 °C

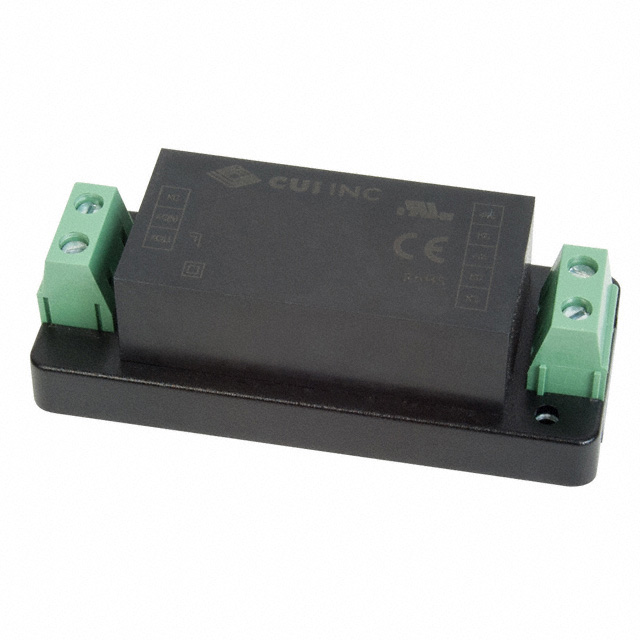

CUI Inc. VSK-S5-15UA-T		ITE (Commercial)	15 V		1				Universal Input		76 %	76 mm	2.99 in	23.4 mm	31.5 mm	0.94 "	1.24 in	Chassis Mount	5 W		CE cURus	Enclosed	70 °C	-25 °C	333 mA	4000 V
CUI Inc. VSK-S5-5UA-T		ITE (Commercial)	5 V		1				Universal Input		72 %	76 mm	2.99 in	23.4 mm	31.5 mm	0.94 "	1.24 in	Chassis Mount	5 W		CE cURus	Enclosed	70 °C	-25 °C	1 A	4000 V
CUI Inc. VSK-S5-9UA-T		ITE (Commercial)	9 V		1				Universal Input		74 %	76 mm	2.99 in	23.4 mm	31.5 mm	0.94 "	1.24 in	Chassis Mount	5 W		CE cURus	Enclosed	70 °C	-25 °C	550 mA	4000 V
CUI Inc. VSK-S5-3R3UA	0.5 %	ITE (Commercial)	3.3 V	±1%	1	1.25 A	0.077 lb	34.93 g	Universal Input	4-DIP Module	66 %	50.8 mm	2 in	15.7 mm	25.4 mm	0.62 in	1 "	Through Hole	5 W	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL	Enclosed	70 °C	-25 °C
CUI Inc. VSK-S5-15UA	0.5 %	ITE (Commercial)	15 V	±1%	1	330 mA	0.077 lb	34.93 g	Universal Input	4-DIP Module	76 %	50.8 mm	2 in	15.7 mm	25.4 mm	0.62 in	1 "	Through Hole	5 W	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL	Enclosed	70 °C	-25 °C
