SF1186 Series

Manufacturer: RFMi

Catalog

FILTER, SAW, 1575.42 MHZ, 4SMD

Part	Height (Max) [z]	Height (Max) [z]	Package / Case	Bandwidth	Mounting Type	Ratings	Frequency - Center	Insertion Loss	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Height (Max) [Max] [z]	Height (Max) [Max] [z]
RFMi SF1186H-2	0.9 mm	0.035 in	4-SMD No Lead	2 MHz	Surface Mount	AEC-Q200	1575.42 MHz	1.2 dB	0.063 "	0.079 in	2 mm	1.6 mm	General Purpose
RFMi SF1186B-3			6-SMD No Lead	18 MHz	Surface Mount	AEC-Q200	1575.42 MHz	2.68 dB	0.118 "	0.118 in	3 mm	3 mm	GPS	1.38 mm	0.054 in

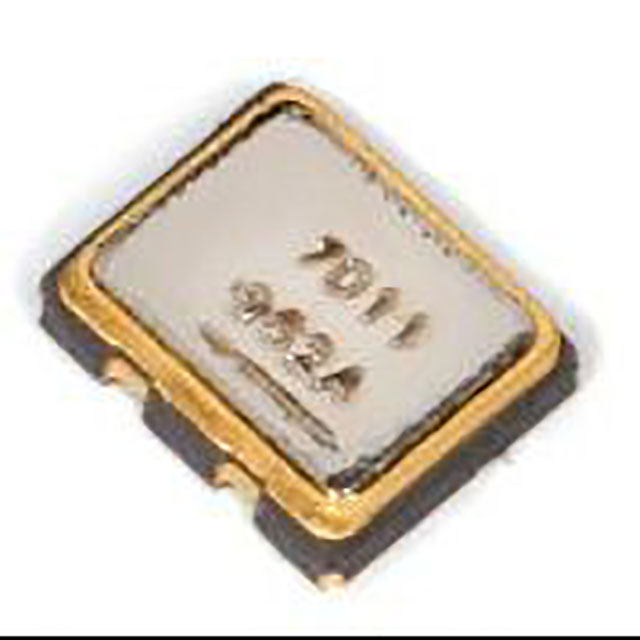

RFMi SF1186G			4-SMD No Lead	2 MHz	Surface Mount	AEC-Q200	1575.42 MHz	1.5 dB	0.098 in	0.079 in	2 mm	2.5 mm	GPS	1 mm	0.039 in
RFMi SF1186B-2			6-SMD No Lead	15.3 MHz	Surface Mount		1575.42 MHz	2.68 dB	0.118 "	0.118 in	3 mm	3 mm	GPS	1.38 mm	0.054 in
RFMi SF1186G			4-SMD No Lead	2 MHz	Surface Mount	AEC-Q200	1575.42 MHz	1.5 dB	0.098 in	0.079 in	2 mm	2.5 mm	GPS	1 mm	0.039 in

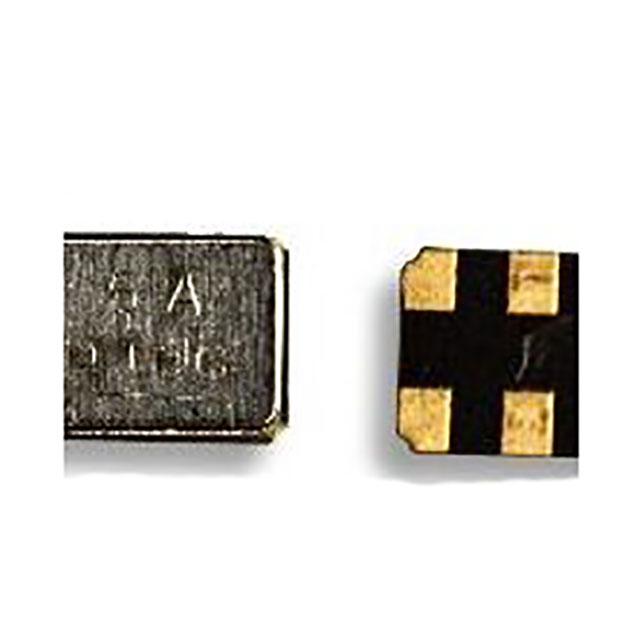

RFMi SF1186G-6	0.75 mm	0.03 in	6-SMD No Lead	5 MHz	Surface Mount	AEC-Q200	1575.42 MHz	1.5 dB	0.098 in	0.079 in	2 mm	2.5 mm	GPS
RFMi SF1186E-2			6-SMD No Lead	15.3 MHz	Surface Mount	AEC-Q200	1575.42 MHz	2.68 dB	0.118 "	0.118 in	3 mm	3 mm	GPS	1.38 mm	0.054 in
RFMi SF1186H-2	0.9 mm	0.035 in	4-SMD No Lead	2 MHz	Surface Mount		1.575 GHz	1.2 dB	0.079 in	0.063 "	1.6 mm	2 mm	GPS
RFMi SF1186B-2			6-SMD No Lead	2.046 MHz	Surface Mount	AEC-Q200	1575.42 MHz	2.68 dB	0.118 "	0.118 in	3 mm	3 mm	GPS	1.38 mm	0.054 in
RFMi SF1186E-2			6-SMD No Lead	15.3 MHz	Surface Mount	AEC-Q200	1575.42 MHz	2.68 dB	0.118 "	0.118 in	3 mm	3 mm	GPS	1.38 mm	0.054 in
