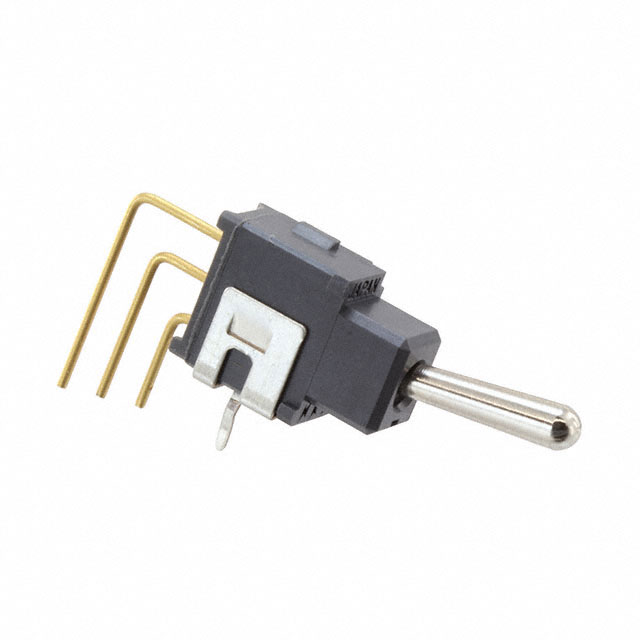

A12AV Series

Catalog

PROCESS SEALED SUBMINIATURE TOGGLE

Part	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Illumination	Switch Function	Actuator Type	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Features	Bushing Thread	Termination Style	Voltage Rating - AC	Circuit
NKK Switches A12AV1-GA	Glass Filled Nylon Polyamide (PA)	50000 Cycles	85 °C	-30 ░C	10 mm	Non-Illuminated	On-On	Standard Round with Cap	0.4 VA	Right Angle Through Hole Vertical	28 V	Black Cap	Unthreaded Square	PC Pin	28 V	SPDT
NKK Switches A12AV-GC	Glass Filled Nylon Polyamide (PA)	50000 Cycles	85 °C	-30 ░C	10 mm	Non-Illuminated	On-On	Standard Round with Cap	0.4 VA	Right Angle Through Hole Vertical	28 V	Red Cap	Unthreaded Square	PC Pin	28 V	SPDT
NKK Switches A12AV1	Glass Filled Nylon Polyamide (PA)	50000 Cycles	85 °C	-30 ░C	10 mm	Non-Illuminated	On-On	Standard Round	0.4 VA	Right Angle Through Hole Vertical	28 V	Process Sealed	Unthreaded Square	PC Pin	28 V	SPDT
NKK Switches A12AV-GB	Glass Filled Nylon Polyamide (PA)	50000 Cycles	85 °C	-30 ░C	10 mm	Non-Illuminated	On-On	Standard Round with Cap	0.4 VA	Right Angle Through Hole Vertical	28 V	White Cap	Unthreaded Square	PC Pin	28 V	SPDT
