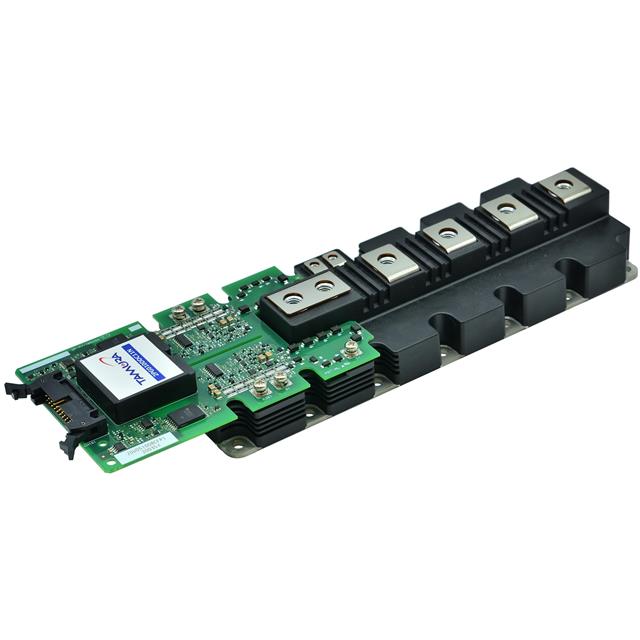

2PG010 Series
Manufacturer: Tamura
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC GATE DRVR HALF-BRIDGE MODULE
| Part | Gate Type | Number of Drivers | Channel Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Input Type | Fall Time (Typ) | Rise Time (Typ) | Operating Temperature (Min) | Operating Temperature (Max) | Current - Peak Output (Sink) | Current - Peak Output (Source) | Driven Configuration | Mounting Type | Logic Voltage - VIL | Logic Voltage - VIH | Package Name | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tamura | IGBT | 2 | Independent | 28 V | 13 V | Non-Inverting | 500 ns | 500 ns | -40 °C | 85 °C | 43 A | 43 A | Half-Bridge | Chassis Mount | 0.5 V | 3.3 V | Module | Module |
 Tamura | IGBT | 2 | Independent | 28 V | 13 V | Non-Inverting | 500 ns | 500 ns | -40 °C | 85 °C | 43 A | 43 A | Half-Bridge | Chassis Mount | 0.5 V | 3.3 V | Module | Module |
 Tamura | IGBT | 2 | Independent | 28 V | 13 V | Non-Inverting | 500 ns | 500 ns | -40 °C | 85 °C | 43 A | 43 A | Half-Bridge | Chassis Mount | 0.5 V | 3.3 V | Module | Module |
