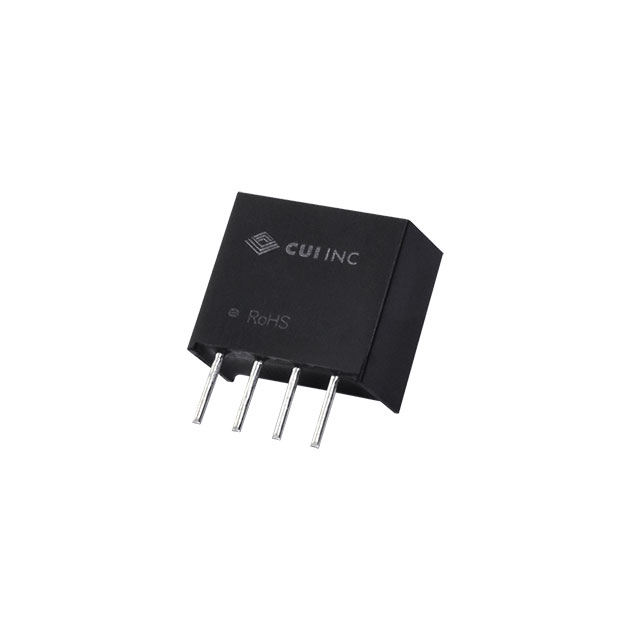

PQS075 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 744MW

Part	Power (Watts)	Package / Case	Applications	Approval Agency	Efficiency	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]
CUI Inc. PQS075-S5-S12-S	744 mW	4-SIP Module	ITE (Commercial)	CE	73 %	Isolated Module	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	5.25 V	-40 °C	85 °C	12 V	62 mA	1	Through Hole	1.5 kV	4.75 V
CUI Inc. PQS075-S5-S15-S	0.75 W	4-SIP Module	ITE (Commercial)	CE	74 %	Isolated Module	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	5.25 V	-40 °C	85 °C	15 V	50 mA	1	Through Hole	1.5 kV	4.75 V
CUI Inc. PQS075-S5-S5-S	0.75 W	4-SIP Module	ITE (Commercial)	CE	72 %	Isolated Module	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	5.25 V	-40 °C	85 °C	5 V	150 mA	1	Through Hole	1.5 kV	4.75 V
CUI Inc. PQS075-S5-S3-S	660 mW	4-SIP Module	ITE (Commercial)	CE	68 %	Isolated Module	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	5.25 V	-40 °C	85 °C	3.3 V	200 mA	1	Through Hole	1.5 kV	4.75 V
CUI Inc. PQS075-S5-S9-S	747 mW	4-SIP Module	ITE (Commercial)	CE	72 %	Isolated Module	10.2 mm	6 mm	0.24 "	0.46 in	11.6 mm	0.4 "	5.25 V	-40 °C	85 °C	9 V	83 mA	1	Through Hole	1.5 kV	4.75 V
