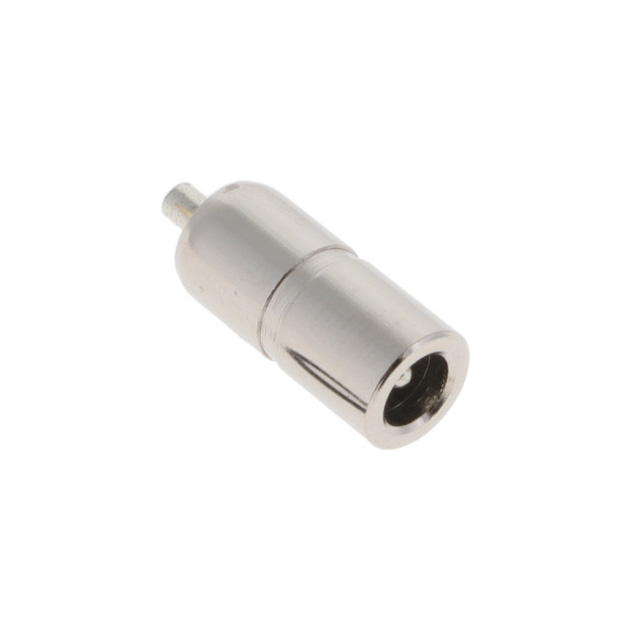

ADC-119 Series
Manufacturer: Adam Tech
Beta
⌘K
DC POWER JACK, WATERPROOF
| Part | Contact Material - Plating | Housing Material | Body Color | Contact Material | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Internal Switch(s) | Ingress Protection | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Mounting Type | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Current Rating (Amps) | Connector Type | Voltage - Rated | Mating Length/Depth | Mating Length/Depth [custom] | Gender | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Tin | Thermoplastic | Black | Brass | 0.051 " 0.138 in | 1.3 mm 3.5 mm | IPX7 - Waterproof | 2 | 2 | Free Hanging (In-Line) | Unshielded | 0.051 in 0.142 in | 1.3 mm 3.6 mm | 1 A | Jack | 30 V | 10.5 mm | 0.413 in | Male | UL94 V-0 | -20 ░C | 70 °C |
