5680701 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM QUAD GN/RED/BLANK RA

Part	Color	Lens Type	Voltage Rating	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Lens Size	Lens Size	Configuration	Mounting Type	Current	Viewing Angle	Millicandela Rating [custom]	Current

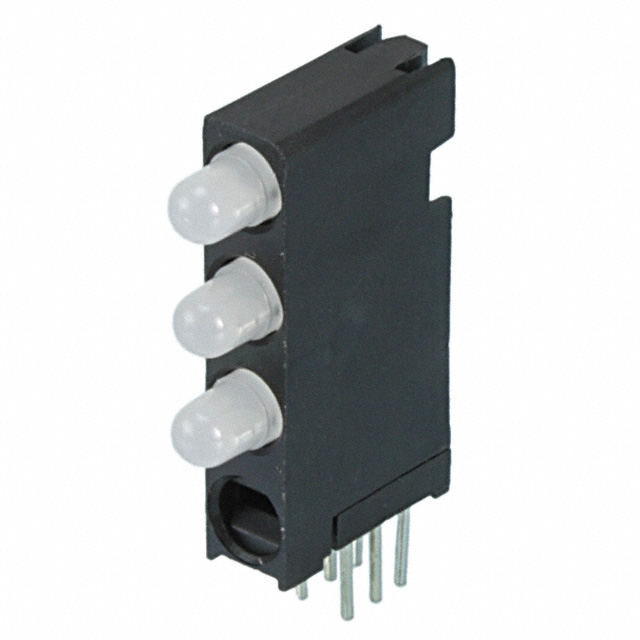

DIALIGHT 5680701110F	Blank (x 1) Green Red (x 3)	Diffused	2 V 2.1 V	565 nm 635 nm	10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	30mA Green 30mA Red	60 °

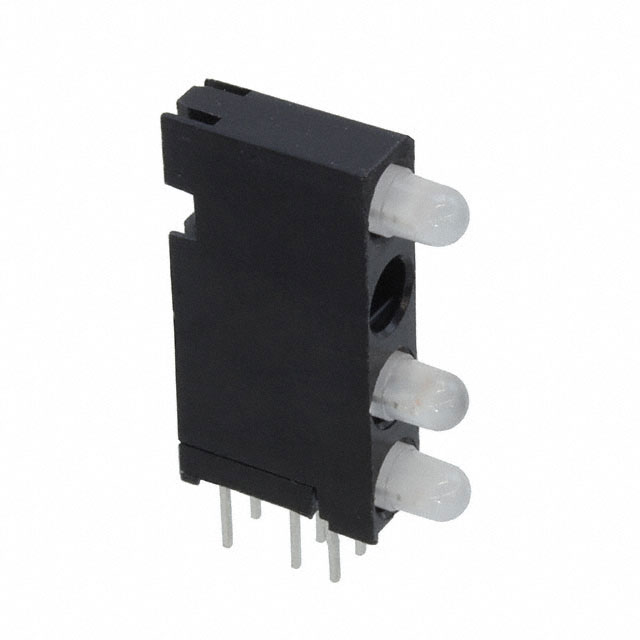

DIALIGHT 5680701041F	Blank (x 1) Green Red (x 2) Yellow (x 1)	Diffused	2 V 2.1 V 2.1 V	565 nm 585 nm 635 nm	6.3 mcd 10 mcd	4.7 mcd				4 High	Right Angle Through Hole	20mA Yellow 30mA Green 30mA Red	60 ° 80 °	4.3 mcd

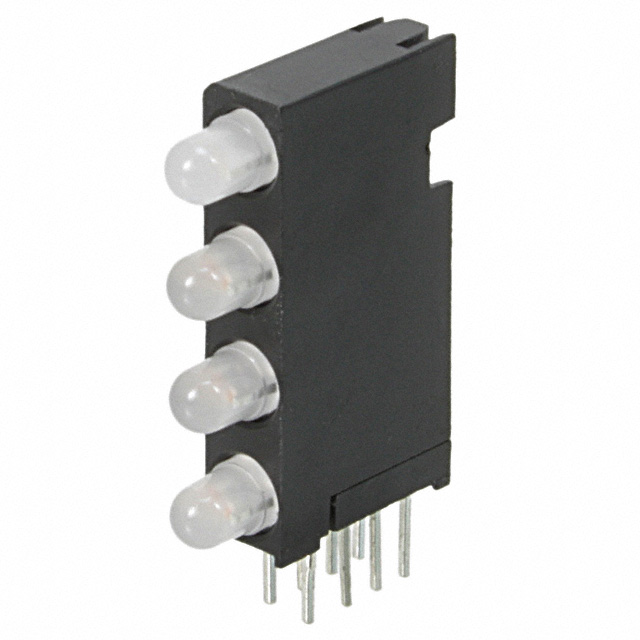

DIALIGHT 5680701444F	Green Red (x 1) Yellow (x 3)	Diffused	2 V 2.1 V 2.1 V	565 nm 585 nm 635 nm	6.3 mcd 10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	20mA Yellow 30mA Green 30mA Red	60 ° 80 °	4.3 mcd
DIALIGHT 5680701101F	Blank (x 1) Green Red (x 3)	Diffused	2 V 2.1 V	565 nm 635 nm	10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	30mA Green 30mA Red	60 °

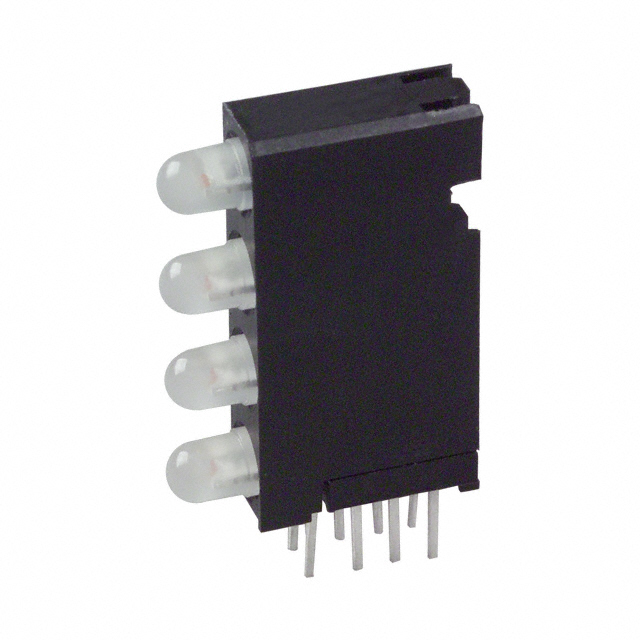

DIALIGHT 5680701111F	Green Red (x 4)	Clear	2 V 2.1 V	565 nm 635 nm	10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole		60 °		10 mA
DIALIGHT 5680701000F	Blank (x 3) Green Red (x 1)	Diffused	2 V 2.1 V	565 nm 635 nm	10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	30mA Green 30mA Red	60 °
DIALIGHT 5680701414F	Green Red (x 2) Yellow (x 2)	Diffused	2 V 2.1 V 2.1 V	565 nm 585 nm 635 nm	6.3 mcd 10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	20mA Yellow 30mA Green 30mA Red	60 ° 80 °	4.3 mcd
DIALIGHT 5680701846F	Green Yellow	Diffused	2 V 2.1 V	565 nm 630 nm	8.7 mcd	5.6 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole		200 °		20 mA 20 mA
DIALIGHT 5680701100F	Blank (x 2) Green Red (x 2)	Diffused	2 V 2.1 V	565 nm 635 nm	10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	30mA Green 30mA Red	60 °

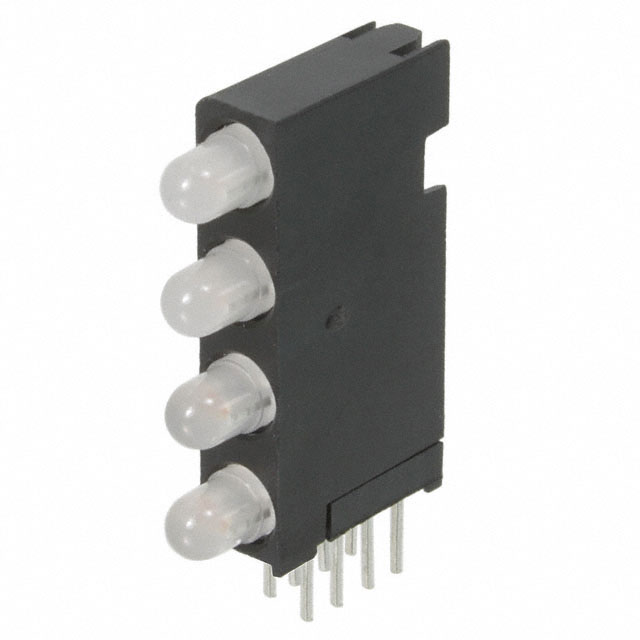

DIALIGHT 5680701144F	Green Red (x 2) Yellow (x 2)	Diffused	2 V 2.1 V 2.1 V	565 nm 585 nm 635 nm	6.3 mcd 10 mcd	4.7 mcd	Round with Domed Top	3 mm	T-1	4 High	Right Angle Through Hole	20mA Yellow 30mA Green 30mA Red	60 ° 80 °	4.3 mcd
