85805CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

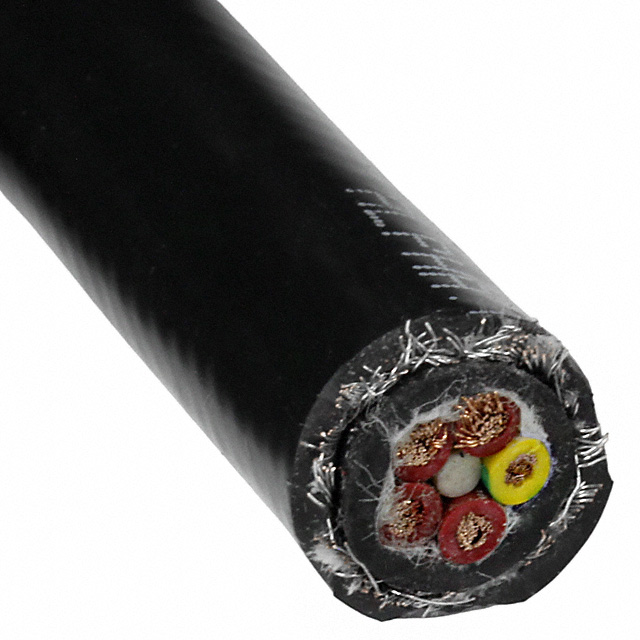

MULTICONDUCTOR CABLE, SHIELDED, 5 CONDUCTOR, 18 AWG, 1 MM², 500 FT, 152.4 M
| Part | Conductor Material | Length [x] | Length [x] | Voltage | Shield Material | Cable Type | Jacket Color | Ratings | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 500 ' | 152.4 m | 600 V | Copper Tinned | Multi-Conductor | Black | UL Style 2587 | 18 AWG | 105 | 38 AWG | 5 | 11.51 mm | 0.453 " | Braid | Poly-Vinyl Chloride (PVC) | 85 % | 0.04 in | 1.016 mm | Poly-Vinyl Chloride (PVC) |
