RI-TRP-R9QL Series

30 mm Disk Transponder R/O

Catalog

30 mm Disk Transponder R/O

Part	Operating Temperature [Max]	Operating Temperature [Min]	Style	Writable Memory	Standards	Size / Dimension [diameter]	Size / Dimension [x]	Technology	Frequency	Memory Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Texas Instruments RI-TRP-0105-30

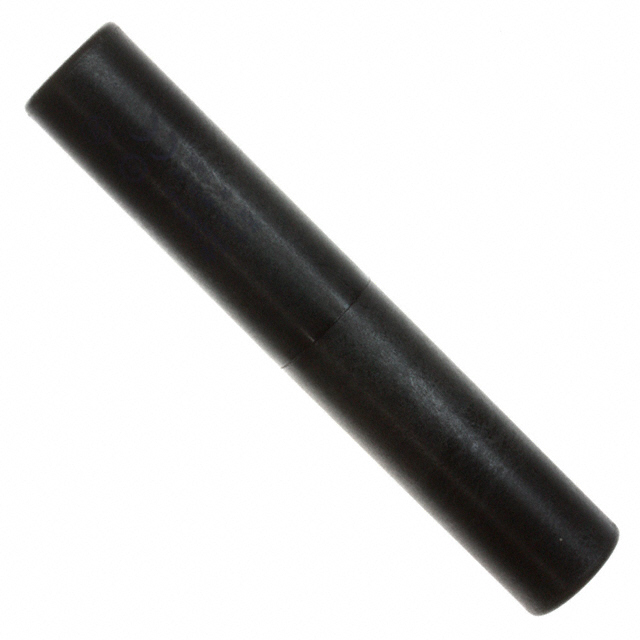

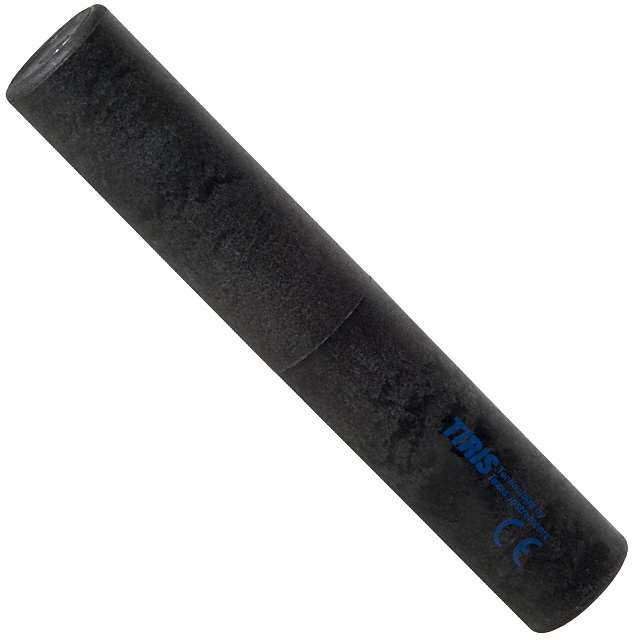

Texas Instruments RI-TRP-W9TD-30	70 °C	-25 °C	Encapsulated	80 b	ISO 11784 ISO 11785	21 mm	121 mm	Passive	134.2 kHz	Read/Write

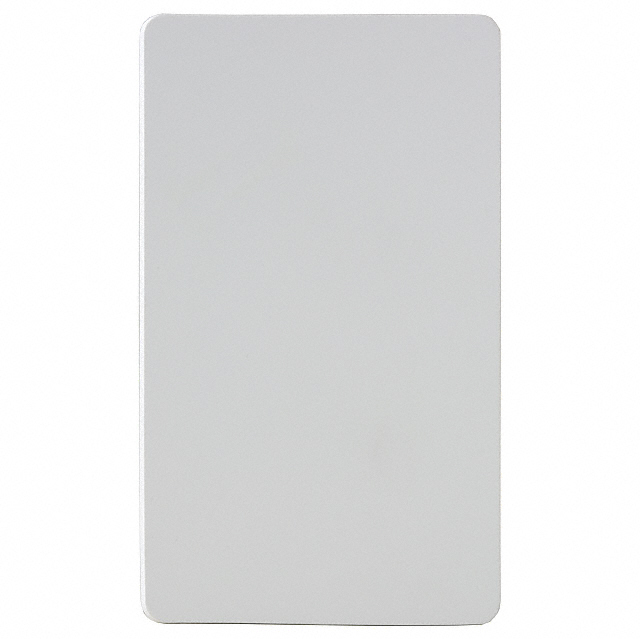

Texas Instruments RI-TRP-R4FF-01	50 °C	-25 °C	Card		ISO 11784 ISO 11785		3.366 "	Passive	134.2 kHz	Read Only	85.5 mm	2.126 in	54 mm
Texas Instruments RI-TRP-W9TD-13	70 °C	-25 °C	Encapsulated	80 b	ISO 11784 ISO 11785	21 mm	121 mm	Passive	134.2 kHz	Read/Write
Texas Instruments RI-TRP-IR2B-30	85 °C	-25 °C	Glass Encapsulated	1.36 kb	ISO 11784 ISO 11785	3.85 mm	32.2 mm	Passive	134.2 kHz	Read/Write
Texas Instruments RI-TRP-M9WK-00	85 °C	-40 °C	Encapsulated	248 b			0.472 in	Passive	134.2 kHz	Read/Write	12 mm	0.236 in	6 mm

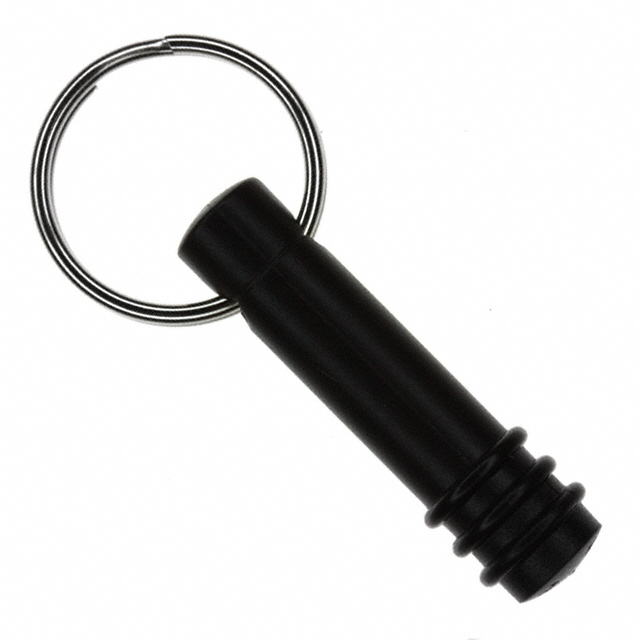

Texas Instruments RI-TRP-RFOB-30	85 °C	-40 °C	Key Fob		ISO 11784 ISO 11785	10.5 mm	37.5 mm	Passive	134.2 kHz	Read Only
Texas Instruments RI-TRP-W9TB	70 °C	-25 °C	Glass Encapsulated	80 b		16 mm	50 mm	Passive	134.2 kHz	Read/Write

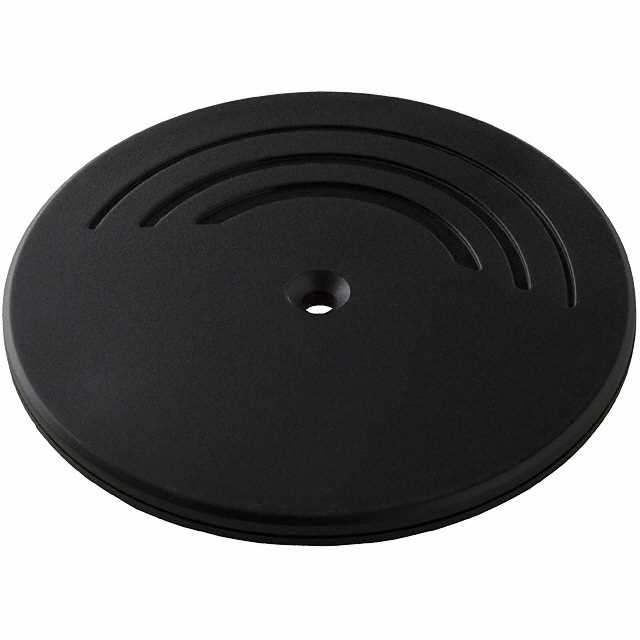

Texas Instruments RI-TRP-W9UR	70 °C	-25 °C	Encapsulated	80 b	ISO 11784 ISO 11785			Passive	134.2 kHz	Read/Write

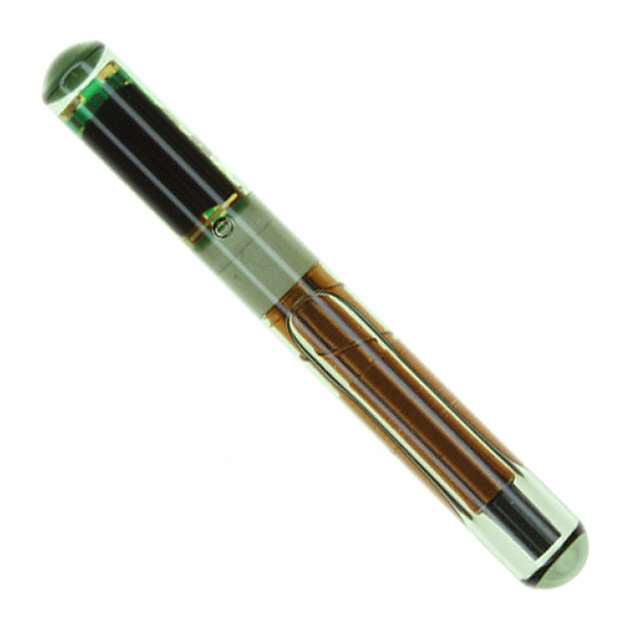

Texas Instruments RI-TRP-DR2B	85 °C	-25 °C	Glass Encapsulated	1.36 kb	ISO 11784 ISO 11785	3.85 mm	32.2 mm	Passive	134.2 kHz	Read/Write

Catalog

30 mm Disk Transponder R/O

Key Features

• Best in Class Performance Through Patented HDX TechnologyPatented Transponder Tuning Provides Stable and High Read/Write Performance64 Bit Read Only, 80 Bit Read/WriteISO 11784/11785 CompliantInsensitive to Almost All Non Metallic MaterialsAPPLICATIONSAccess ControlVehicle IdentificationContainer TrackingAsset ManagementWaste ManagementTI-RFid is a trademark of Texas InstrumentsBest in Class Performance Through Patented HDX TechnologyPatented Transponder Tuning Provides Stable and High Read/Write Performance64 Bit Read Only, 80 Bit Read/WriteISO 11784/11785 CompliantInsensitive to Almost All Non Metallic MaterialsAPPLICATIONSAccess ControlVehicle IdentificationContainer TrackingAsset ManagementWaste ManagementTI-RFid is a trademark of Texas Instruments

Description

Texas Instruments’ 30 mm disk transponder provides superior performance and operates at a resonance frequency of 134.2 kHz. Specific products are compliant to ISO/IEC 11784/11785 global open standards. Texas Instruments LF transponders are manufactured with TI’'s patented tuning process to provide consistent read and write performance. Prior to delivery, the transponders undergo complete functional and parametric testing, in order to provide the high quality customers have come to expect from TI. The transponder is well suited for usage in a broad range of applications including, but not limited to, access control, vehicle identification, container tracking, asset management and waste management applications. Texas Instruments’ 30 mm disk transponder provides superior performance and operates at a resonance frequency of 134.2 kHz. Specific products are compliant to ISO/IEC 11784/11785 global open standards. Texas Instruments LF transponders are manufactured with TI’'s patented tuning process to provide consistent read and write performance. Prior to delivery, the transponders undergo complete functional and parametric testing, in order to provide the high quality customers have come to expect from TI. The transponder is well suited for usage in a broad range of applications including, but not limited to, access control, vehicle identification, container tracking, asset management and waste management applications.
