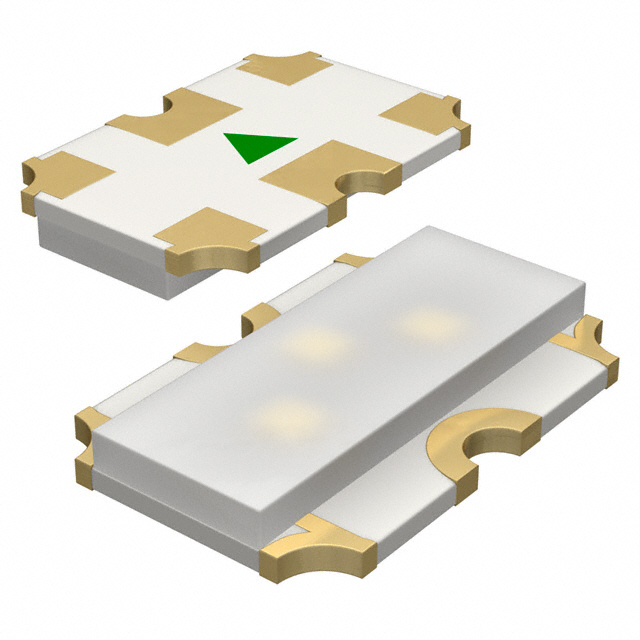

SMLP36 Series

Catalog

LED RGB DIFFUSED 1510 SMD

Part	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Configuration	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Supplier Device Package	Height (Max) [z]	Lens Style	Mounting Type	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Package / Case

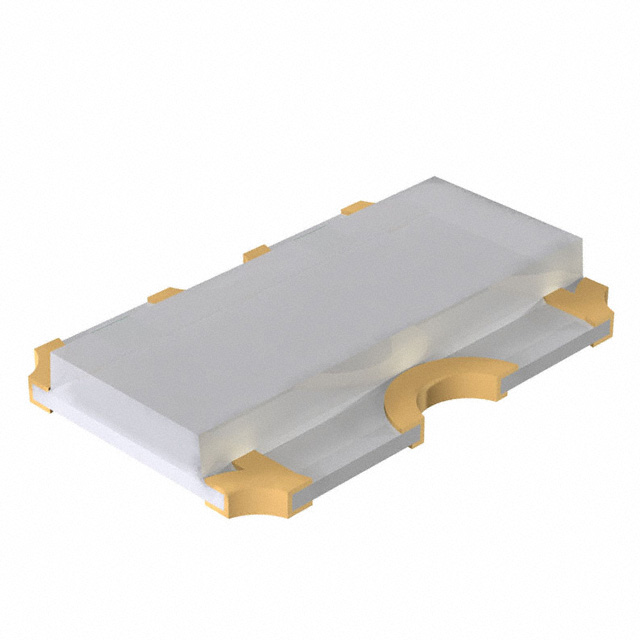

Rohm Semiconductor SMLP36RGB2W3	Diffused	1.5 mm	1 mm	Independent	5 mA	5 mA	5 mA	1510(0604)	0.25 mm	Rectangle with Flat Top	Surface Mount	470 nm	624 nm	527 nm	White	35 mcd	110 mcd	35 mcd	Blue Green Red	0.6 mm	1.5 mm	2.1 V 3 V 3.1 V	0604
Rohm Semiconductor SMLP36RGB2W3R	Diffused	1.5 mm	1 mm	Independent	5 mA	5 mA	5 mA	PICOLED	0.25 mm	Rectangle with Flat Top	Surface Mount	470 nm	624 nm	527 nm	White	35 mcd	110 mcd	35 mcd	Blue Green Red	0.6 mm	1.5 mm	2.1 V 3 V 3.1 V	0604
