HFW26R Series

Catalog

CONN FPC BOTTOM 26POS 1MM R/A

Part	Housing Color	Mating Cycles	Contact Material	Cable End Type	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Pitch	Pitch	Housing Material	Contact Finish	Voltage Rating	FFC, FCB Thickness	Termination	Flat Flex Type	Mounting Type	Number of Positions	Features	Current Rating (Amps)
Amphenol ICC (FCI) HFW26R-1STAE1LF	Black	30	Phosphor Bronze	Tapered	1.9 mm	0.075 in	UL94 V-0	-55 C	105 ░C	Contacts Bottom	1 mm	0.039 in	Glass Filled Nylon 6T Polyamide (PA6T)	Gold	100 V	0.3 mm	Solder	FPC	Right Angle Surface Mount	26	Solder Retention

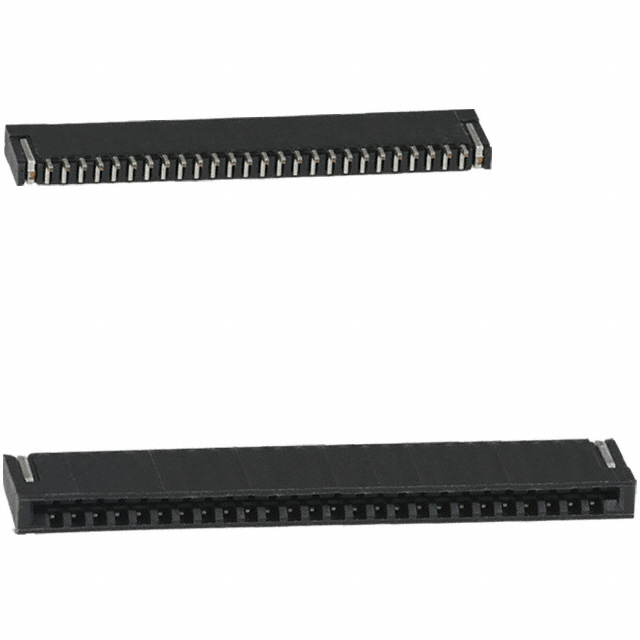

Amphenol ICC (FCI) HFW26R-2STE1LF	Black	30	Phosphor Bronze	Straight or Tapered	1.9 mm	0.075 in	UL94 V-0	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	100 V	0.3 mm	Solder	FFC FPC	Right Angle Surface Mount	26

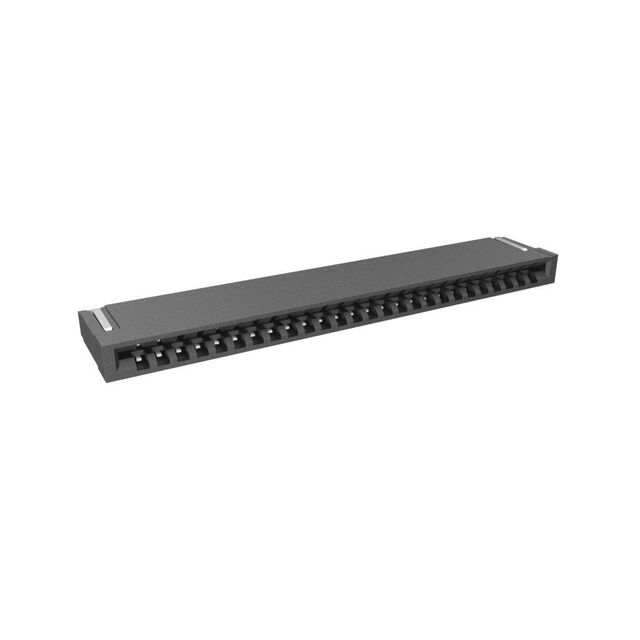

Amphenol ICC (FCI) HFW26R-2STE1H1LF	Black	30	Phosphor Bronze	Straight or Tapered	1.9 mm	0.075 in	UL94 V-0	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	Liquid Crystal Polymer (LCP) Halogen Free	Tin	100 V	0.3 mm	Solder	FFC FPC	Right Angle Surface Mount	26
Amphenol ICC (FCI) HFW26R-1STE1H1LF	Black	30	Phosphor Bronze	Straight or Tapered	1.9 mm	0.075 in	UL94 V-0	-55 C	105 ░C	Contacts Bottom	1 mm	0.039 in	Liquid Crystal Polymer (LCP) Halogen Free	Tin	100 V	0.3 mm	Solder	FFC FPC	Right Angle Surface Mount	26
Amphenol ICC (FCI) HFW26R-2STE1MTLF	Black	30	Phosphor Bronze	Straight or Tapered	3.1 mm	0.122 in	UL94 V-0	-55 C	105 ░C	Contacts Top	1 mm	0.039 in	Glass Filled Thermoplastic	Tin	50 V	0.3 mm	Solder	FFC FPC	Right Angle Surface Mount	26	Solder Retention	0.5 A
