TR9WE5000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

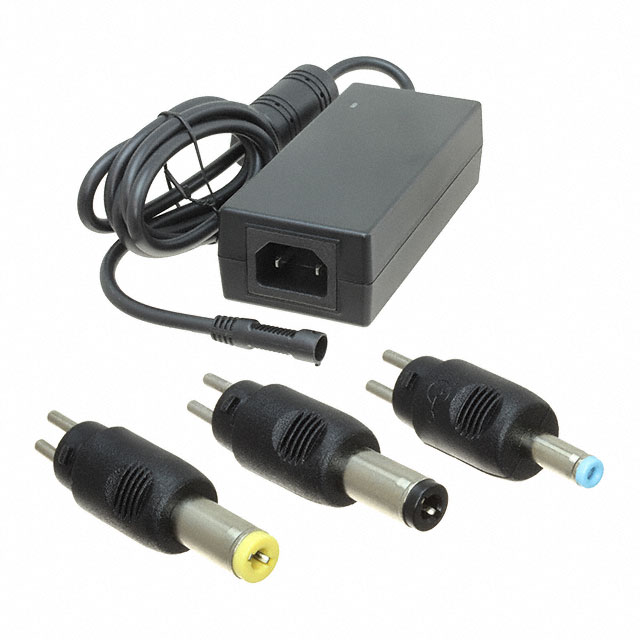

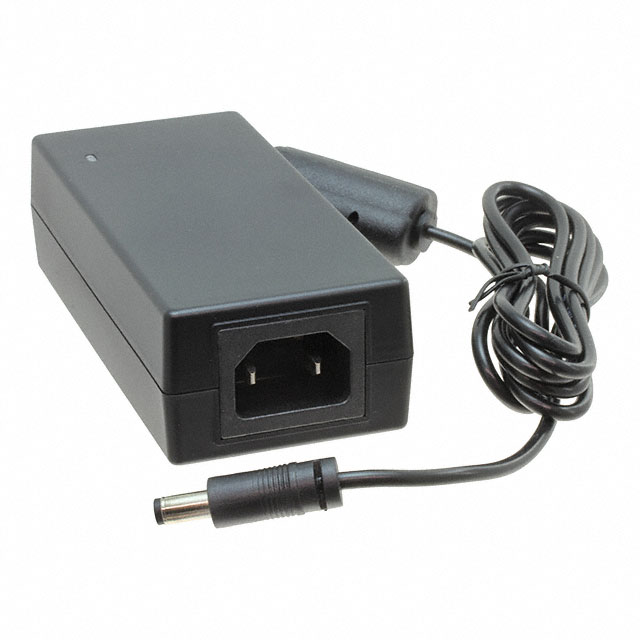

AC/DC DESKTOP ADAPTER 12V 60W
| Part | Region Utilized | Output Connector [diameter] | Output Connector | Output Connector [x] | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Input Type | Applications | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output | Current - Output (Max) | Form | Input Connector | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | Polarization | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | International | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 60 W | 34.2 mm | 1.35 in | 53.5 mm | 4.63 in | 117.5 mm | 2.11 in | Cord (Sold Separately) | ITE (Commercial) Medical | CB CCC CE cETLus EAC PSE RCM S-Mark UkrSEPRO VCCI | -20 ░C | 40 °C | 12 V | 5 A | Desktop (Class II) | IEC 320-C18 | Level VI | 264 VAC | 90 VAC | 1.2 m | 47.2 in | Positive Center | 150 mW |
 GlobTek, Inc. | International | Barrel Plug Kit (1.3mm x 3.5mm | 60 W | 34.2 mm | 1.35 in | 53.5 mm | 4.63 in | 117.5 mm | 2.11 in | Cord (Sold Separately) | ITE (Commercial) Medical | CB CCC CE cETLus EAC PSE RCM S-Mark UkrSEPRO VCCI | -20 ░C | 40 °C | 12 V | 5 A | Desktop (Class II) | IEC 320-C18 | Level VI | 264 VAC | 90 VAC | 1.2 m | 47.2 in | 150 mW |
