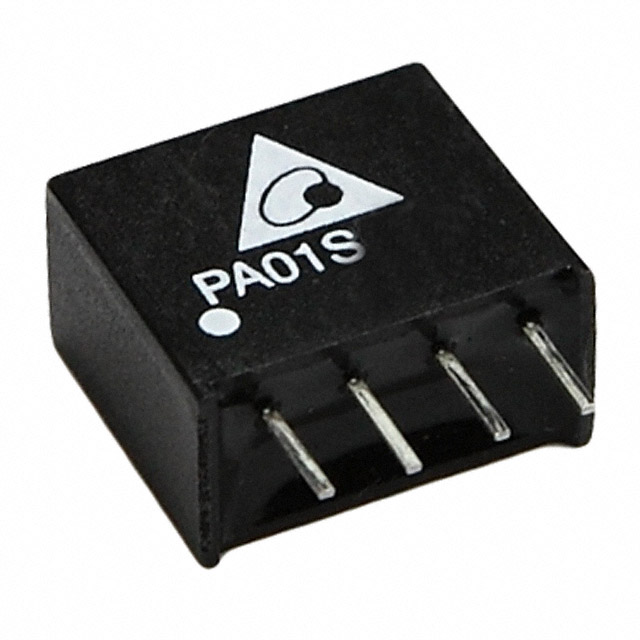

PA01S Series

Catalog

DC DC CONVERTER 15V 1W

Part	Voltage - Isolation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Features	Package / Case	Type	Voltage - Input (Max) [Max]	Efficiency
Delta Electronics PA01S1215A	1000 V	Through Hole	85 °C	-40 C	10.8 V	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "	ITE (Commercial)	67 mA	15 V	1	SCP	4-SIP Module	Isolated Module	13.2 V	80 %
Delta Electronics PA01S2415A	1000 V	Through Hole	85 °C	-40 C	21.6 V	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "	ITE (Commercial)	67 mA	15 V	1	SCP	4-SIP Module	Isolated Module	26.4 V	79 %
Delta Electronics PA01S1205A	1000 V	Through Hole	85 °C	-40 C	10.8 V	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "	ITE (Commercial)	200 mA	5 V	1	SCP	4-SIP Module	Isolated Module	13.2 V	71 %
Delta Electronics PA01S2409A	1000 V	Through Hole	85 °C	-40 C	21.6 V	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "	ITE (Commercial)	110 mA	9 V	1	SCP	4-SIP Module	Isolated Module	26.4 V	76 %
Delta Electronics PA01S0305A	1000 V	Through Hole	85 °C	-40 C	2.97 V	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "	ITE (Commercial)	200 mA	5 V	1	SCP	4-SIP Module	Isolated Module	3.63 V	77 %
