19398160 Series
Manufacturer: HARTING
Beta
⌘K

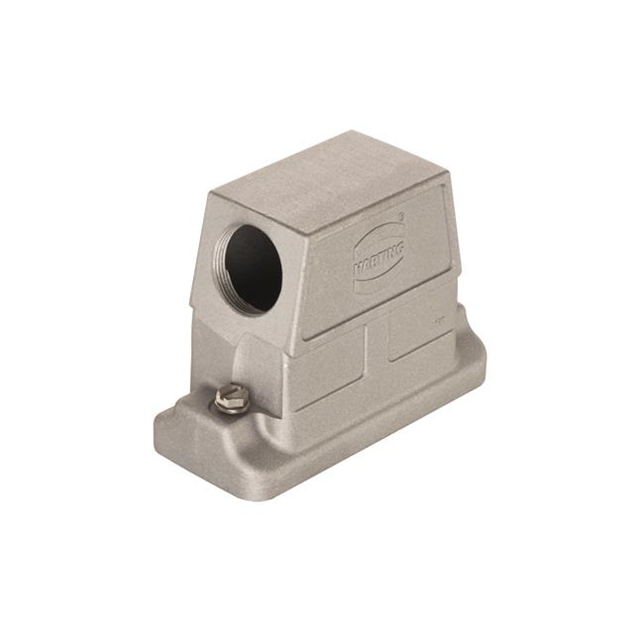

HAN 16 HP DIRECT EMC HOOD, SIDE ENTRY, M25
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Style | Size | Ingress Protection | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Thread Size | Lock Location | Housing Material | Housing Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 125 °C | -40 C | Side Entry | 16 B | IP66 IP68 IP69K | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | M25 | Screw Locks on Hood | Aluminum Die Cast | EMC Coating | Hood |
HARTING | 125 °C | -40 C | Side Entry | 16 B | IP66 IP68 IP69K | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | M20 | Screw Locks on Hood | Aluminum Die Cast | EMC Coating | Hood |

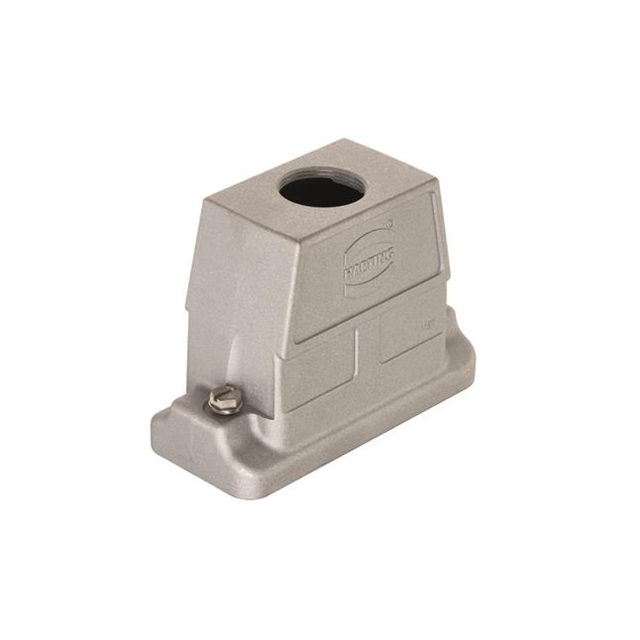

 HARTING | 125 °C | -40 C | Top Entry | 16 B | IP66 IP68 IP69K | 5 " | 2.244 " | 3.701 " | 94 mm | 57 mm | 127 mm | M20 | Screw Locks on Hood | Aluminum Die Cast | EMC Coating | Hood |
HARTING | 125 °C | -40 C | Top Entry | 16 B | IP66 IP68 IP69K | 5 " | 2.244 " | 3.701 " | 94 mm | 57 mm | 127 mm | M25 | Screw Locks on Hood | Aluminum Die Cast | EMC Coating | Hood |
HARTING | 125 °C | -40 C | Side Entry | 16 B | IP66 IP68 IP69K | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | Screw Locks on Hood | Aluminum Die Cast | EMC Coating | Hood |
